Home > Instruments & Meters > Detector > Metal Detector for Food > Auto-convey Metal Detector MC-DI600(Big Size)

Auto-convey Metal Detector MC-DI600(Big Size)

Auto-convey Metal Detector MC-DI600(Big Size) thumbnail-1
Auto-convey Metal Detector MC-DI600(Big Size) photo-1
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
CrossQ
Model Number:
Auto-conveying Type Metal Detector MC-DI600(Big Size)
Contact Supplier Request Quote Chat Now
Shanghai CrossQ Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name CrossQ
Model Number Auto-conveying Type Metal Detector MC-DI600(Big Size)

Auto-conveying Type Metal Detector MC-DI600
Digital Metal Detector



Auto-convey Metal Detector MC-DI600(Big Size)

FEATURES

1. Based on 32bit high speed CPU.
2. Digital signal processing & transmission
3. Multi-functional and humanity interface.
4. English/Chinese language selection.
5. Product memory and fault record.
6. Digital signal processing and transmission.
7. Automatic adaptable for product effect.
8. Optional reject systems.
9. High protection degree and height adjustable frame.(conveyor type can be chose)



Auto-convey Metal Detector MC-DI600(Big Size)

PURPOSE

1.Detecting metal impurities in food manufacturing, textile, garment, chemical products other industrial products etc., to ensure that products without metal contamination, providing reliable quality assurance.

2.Detecting metal impurities in rubber/plastic particles, lumber, mining products, to protect critical equipments, reducing downtime, maintenance time & cost, to enhance working efficient.



Auto-convey Metal Detector MC-DI600(Big Size)

SPECIFICATIONS

Type

MC-Di

Series

MC-DI300

MC-DI400

MC-DI500

Aperture Width

300mm

400mm

500mm

Aperture Height

80-300mm

80-400mm

80-500mm

Conveyor Height

Standard 780±50mm, (based on special requirement)

Highest Ability

Fe≥dia0.8mm; SUS≥dia1.0mm; Cu≥dia1.0mm

Conveying Speed

Standard 32m ⁄ min;5 ∼50m/min (special range can be option)

Conveying Ability

≤50kg

≤50kg

≤50kg

Alarm

Sound & Light Alarm

Rejection

Alarming & belt stop, Automatic Drop Down Type, Roller Pusher Type, Lift Baffle Type…

Power Supply

Single Phase,220V±10% 50HZ, or 110V±10% 60HZ

Three Phase,380V±10% 50HZ, or 220V±10% 60HZ

Rate Output

500W



Auto-convey Metal Detector MC-DI600(Big Size)



MC-Di600 can be manufactured based on products' actul packing height.

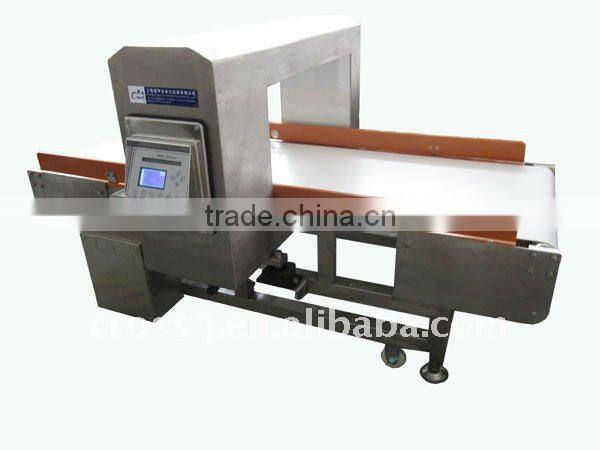

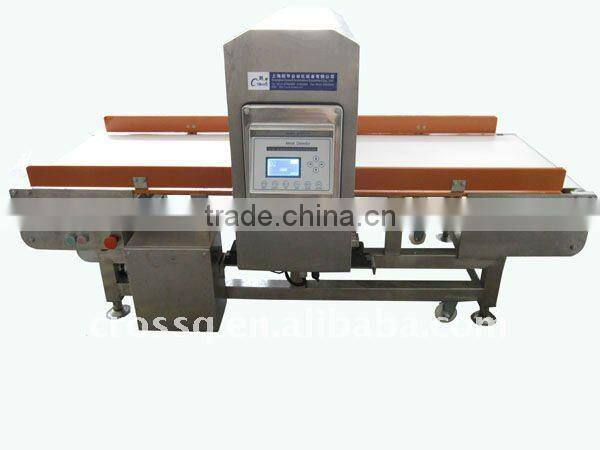

Photo shows MC-Di600/350MM (Detection Size 600W*350H mm)
