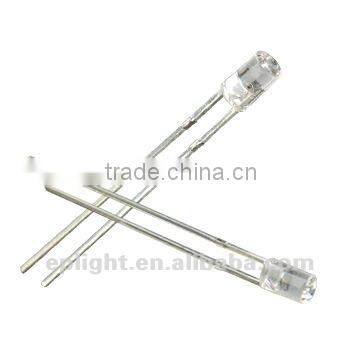

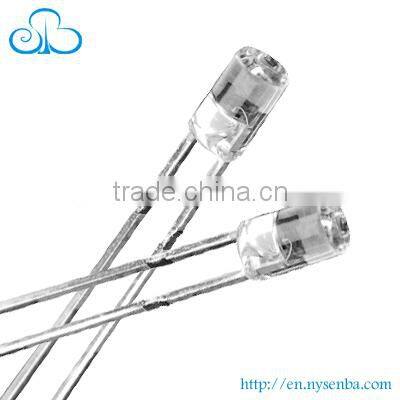

LS06-B Dia.3MM RoHS Approval Photo Sensor, Best Price Supply
- 1000000 Piece / Pieces per Month
- ShenZhen
- T/T Credit Card
- IRR01001 irrigation set
- Tactical Grade Inertial Measurement Unit STIM300 IMU Factory Calibrated
- ALPS Alpine Resistance Position Sensor RDC1022A05 10K Long Life Linear Type
- High-sensitive Mass Flow Controller SZCB-01-A2-B1-C3 Chinese steam turbine by Yoyik
- Intelligent Transmitter HL-6-300-15 for Bangladesh power system by Yoyik
- Wearable INDICATOR DIAL OILTEMP BWR-04JJ(TH) for Indonesia Thermal Power by Yoyik
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Senba | Model Number: | LS06-B |
Usage: | Ray Sensor | Theory: | Current Sensor | Output: | Digital Sensor |
Product Description
Specifications
Photo SensorType: LS06-B 3mm
Replacement of Cds Photoresistor
Rohs Compliang/Pb-free/Cd-free
Linear output illuminance
LS06-B Dia.3MM RoHS Approval Photo Sensor, Best Price Supply
Model No.:LS06-B φ3Flat-Head
The Features of Photo Sensor is below:
- Replacement of Photoresistor (CdS).
- Control of backlight brightness for LCD Monitors,TV sets,
- PDA ,Cameras and Mobile Phones
- Switch for lighting equipments and Toys
- Various Types of Infrared detection wquipment
- Various Types of Security Product
The Specification of Photo Sensor:
- Size: 3.0*4.6mm
- Lens Color: Water Clear
- Collect Light Current(Vdd=5V, Ev=10Lux): 70uA
- Dark Current C-E(Vdd=5V, Ev=0Lux): <10uA
- C-E breakdown Voltage(100uA, IB=0): 70V
- E-C breakdown Voltage(100uA, IB=0): 7V
- Response: 450-1050nm
- Half Angle: 60°
Model | LLS05-A | LS06-M | LS07-A | LS06-S | LS06-B | LS06-S 3mm | LS06-B 3mm | LS07-A 3mm |
Size | 5.0*4.3mm | 5.0*6.8mm | 4.8*4.8mm | 4.85*4.8mm | 4.8*4.8mm | 3.05*3.85mm | 3.0*4.6mm | 3.0*5.1mm |
Lens Color | Water Clear | Water Clear | Water Clear | Water Clear | Water Clear | Water Clear | Water Clear | Water Clear |
Collect Light Current | 10uA | 40uA | 25uA | 25uA | 50uA | 25uA | 70uA | 100uA |
Dark Curret C-E | <50uA | <50uA | <50uA | <50uA | <10uA | <10uA | <10uA | <10uA |
C-E breakdown Voltage | 7.5V | 70V | 30V | 70V | 70V | 70V | 70V | 30V |
E-C breakdown Voltage | 5V | 7V | 6.5V | 7V | 7V | 7V | 7V | 6.5V |
Response | 450-700nm | 450-1050nm | 450-1050nm | 450-1050nm | 450-1050nm | 450-1050nm | 450-1050nm | 450-1050nm |
Half Angle | 80 | 80 | 30 | 80 | 80 | 60 | 60 | 30 |
