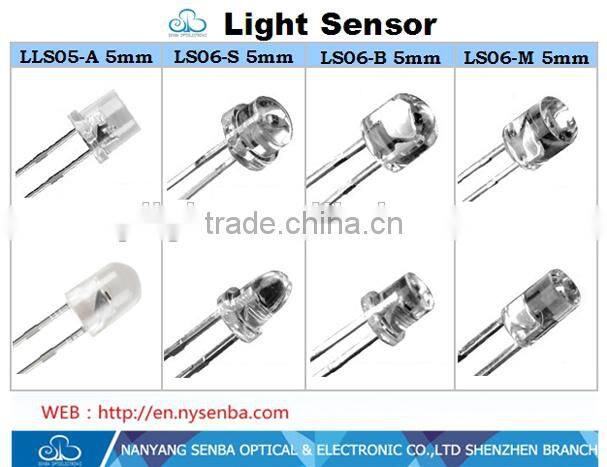

LS06-M 5MM Light Sensor, Replacing Photo Cell Sensor

Specifications

LS06-M 5MM Light Sensor, Replacing Photo Cell Sensor

Light Sensor Application:

1. Replacement of Photoresistor (CdS).
2. Control of backlight brightness for LCD Monitors,TV sets,
3. PDA ,Cameras and Mobile Phones
4. Switch for lighting equipments and Toys
5. Various Types of Infrared detection wquipment
6. Various Types of Security Products

Light Sensor Feature:

1. Linear output conforming to illuminance.
2. Built-in optical filter for spectral response similar to
3. that of the human eye.
4. High Gain Photocurrent Amplifiers IC
5. Temperature Stable.
6. Low dark current and Low working Lux.
7. RoHS Compliant / Pb-free / Cd-free

Light Sensor Specification:

1. Size: 5.0*6.8mm
2. Lens Color: Water Clear
3. Collect Light Current(Vdd=5V, Ev=10Lux): 40uA
4. Dark Current C-E(Vdd=5V, Ev=0Lux): <50uA
5. C-E breakdown Voltage(100uA, IB=0): 70V
6. E-C breakdown Voltage(100uA, IB=0): 7V
7. Response: 450-1050nm
8. Half Angle: 80°
