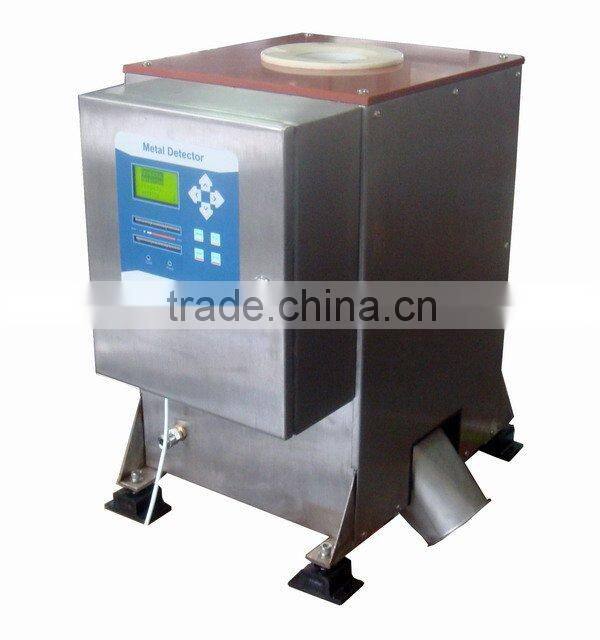

Free Fall (Pipeline) Type Metal Detector MC-GN

Vertical Metal Detector MC-GNVertical Metal Detector MC-GN Vertical Metal Detector MC-GN

FEATURE

1. With lightweight frame, be ideal for powdery & granular products online detection.

2. Dual-signal detection, indicate & adjust Fe and non-Fe sensitivity individually.

3. With much high detection sensitivity and strong ability to inhibit products’ effect, be suitable for

widely application.

4. Good waterproof performance, detection head & control box sealed fully well, be suitable for

wet working environment.

5. With high environment adaptability, be suitable for cold storage and high humidity working environment.



PURPOSE

1. Detecting metal impurities in food ingredients, raw chemical materials and other industrial products etc., to ensure that products without metal contamination, providing reliable quality assurance.

2. Detecting metal impurities in rubber/plastic particles, powdery & granular products, to protect critical equipments, reducing downtime, maintenance time & cost, to enhance working efficient.



SPECIFICATION

Type

MC-GN

Series

MC-GN70

MC-GN100

MC-GN150

Detection Width

dia70mm

dia100mm

dia150mm

Sensitivity

Fe≥dia0.3mm;

SUS≥dia0.8mm

Fe≥dia0.5mm;

SUS≥dia1.0mm

Fe≥dia0.8mm;

SUS≥dia1.5mm

Ability(Standard)

300kg/hour

600kg/hour

1000kg/hour

Required Installation Height

920mm

1100mm

1200mm

Speed

Free Fall(connect the speed with previous equipment)

Alarm

Sound & Light Alarm

Rejection

Automatic baffle type

Air Supply

≥0.5MPa



CROSSQ MC-GN Series free fall (pipeline) type metal detectors have many types, can be designed based on actual production line’s requirement.







Welcome to choose our CrossQ METAL DETECTOR machines..^_^..



1- Automatic Belt Conveying Type: MC-Di series. [For packing products]



2- Automatic Gravity (Freefall) Type: MC-Gn series. [ For powder / granular products]



3- Automatic Tubular Pipe Type: MC-P series. [ For liquid / jam products ]
