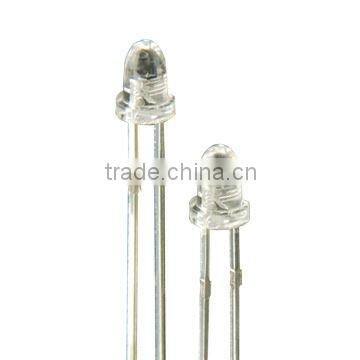

Help CenterLight Sensor Switch
Related Products
-
Best Price Light Sensor With ROHS, Replace CdS PhotocellNegotiableMOQ: 1000 Pieces -
Phototransistor Replace PhotoresistorNegotiableMOQ: 1000 Pieces
-
LS06-B Senba 3MM Light Photo Sensor With ROHS Replacing for Cds PhotocellUS$ 0.3 - 0.4MOQ: 1000 Pieces
-
3MM Light Sensor (LS06-B) With SGS RoHS for Street LightingNegotiableMOQ: 1000 Pieces
-
Senba 3MM LS06-S Low Dark Current Light Sensor With RoHS Approval for European CountriesUS$ 0.3 - 0.4MOQ: 1000 Pieces
Specifications
Linear light sensorType: LSO7-A
Replacement of Cds
Rohs Compliang/Pb-free/Cd-free
Linear output illuminance
LS07-A 3mm
Production Specification
1..Replacement of Cds
2. RoHS Compliant / Pb-free / Cd-free Production Specification
3.Linear Output Type Light Sensor
TYPICAL APPLICATIONS
1.Replacement of Photoresistor (CdS).
2.Control of backlight brightness for LCD Monitors,TV sets, PDA ,Cameras and Mobile Phones.
3.switch for lighting equipments and Toys.
4.Testing for daylight.
FEATURES
1.Linear output conforming to illuminance.
2.Built-in optical filter for spectral response similar to that of the human eye.
3.High Gain Photocurrent Amplifiers IC
4.Temperature Stable.
5.Low dark current and Low working Lux.
CHARACTERISTICS
Characteristics |
Symbol |
Max |
Unit |
Power Dissipation |
PD |
10 |
Mw |
Collector-emitter Breakdown Voltage |
V(BR)CEO |
30 |
V |
Operating temperature range |
Temp |
-35 to 85 |
°C |
Storage temperature range |
Temp |
-35 to 85 |
°C |
Electrical and Optical Characteristics (Ta= 25°C)
Parameter |
Symbol |
Test Conditions |
Min |
Type |
Max |
Unit |
Collector-emitter Breakdown Voltage |
BVCEO |
IC=100μA ,IB=0 |
30 |
|
100 |
V |
Emitter-collector Breakdown Voltage |
BVECO |
IE=100μA ,IB=0 |
5 |
|
|
V |
Collector dark current |
ICEO |
VCE=20V ,H=0mw/cm2 |
|
|
100 |
n A |
Collector-emitter Saturation Voltage |
VCE(S) |
IC=2mA ,IB=100μA |
|
|
0.4 |
V |
Rise/fall time |
TR/TF |
VCE=5V IC=1Ma RL=1000Ω |
|
15/15 |
|
μS |
Current gain |
hFE |
VCE=5V ,IC=2Ma |
500 |
|
|
|
Collector-base Capacitance |
CCB |
F=1MHZ ,VCB=3V |
5.4 |
6.4 |
7.4 |
PF |
Photo Current |
HL |
VDD=5V,EV=10LUX |
80 |
|
130 |
μA |
