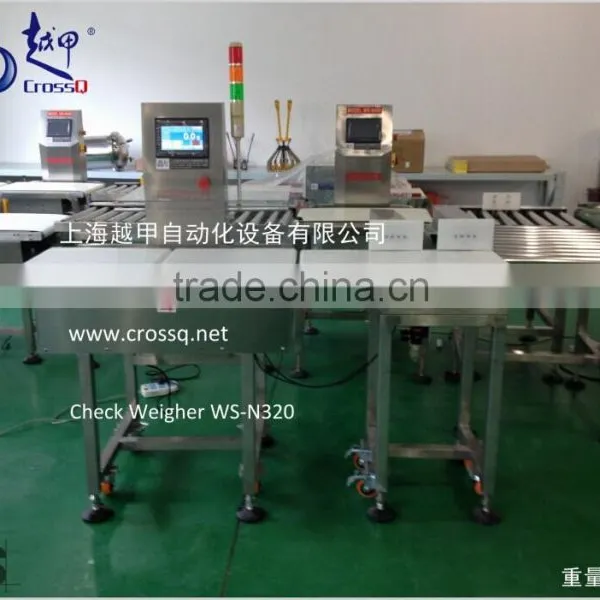

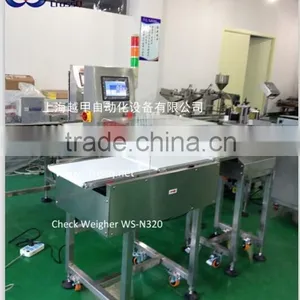

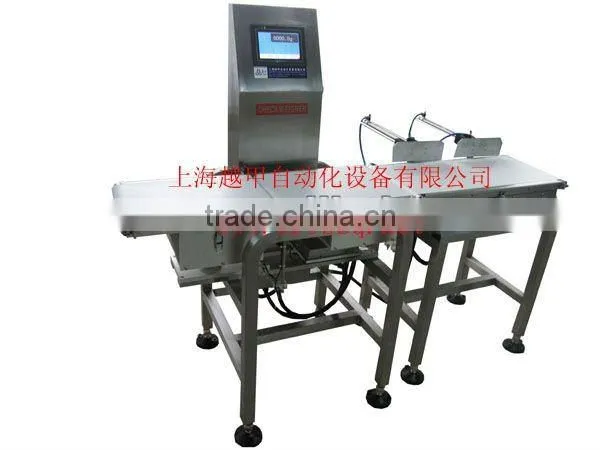

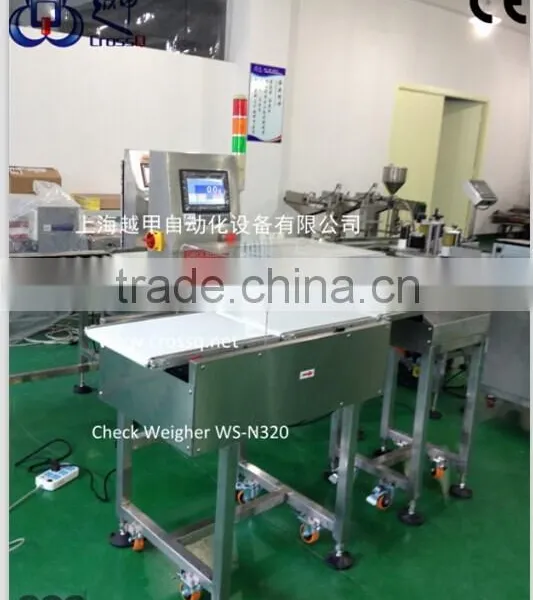

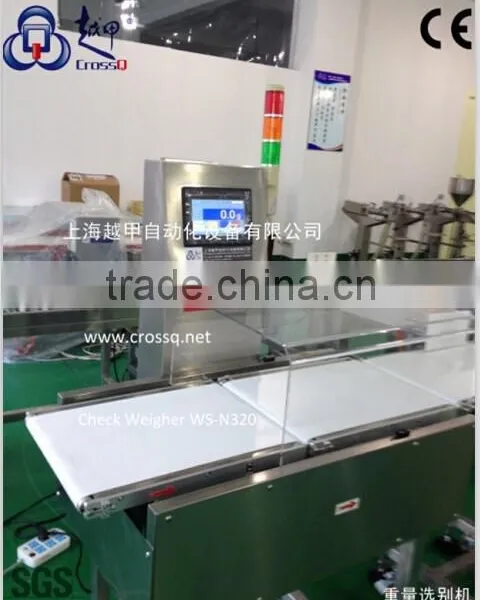

Check Weigher WS-N320 (20g-10kg)
Online Weight Checking and Sorting
LCD Touch Panel Quick Change Belt System
Can connect computer & With USB copy system
FEATURES
1. Strong stainless steel structure; Water proof design.
2. High accurate load cell; Based on advanced DSP technology.
3. Automatic weighing compensation and zero tracking.
4. 100 products preset; Easy to edit and recall.
5. Quickly product shift and speed recall.
6. 2000 sorting records; Printer output ready.
7. LCD with Touch screen; Friendly operation interface.
LCD Touch Panel Conveying & Weighing Part With High Quality Motor
APPLICATIONIS
1. Online foods package weighing and sorting.
2. Applied to packing foods quality control.
3. Used to check unit product’s weight whether meet target object, and automatically
reject sub-standard products.
Rejection Device can be chosed suitable type based on exact products.
Pusher Type Air Jet Type Flap Type
SPECIFICATIONS
Type |
WS-N320 |
|
Weighing Range |
20g-5kg |
20g-10kg |
Conveying Speed |
40-90m/min(adjustable) |
|
Speed(bags/min) |
80-120 |
40-120 |
Accuracy |
±1-±10g |
±1-±20g |
Belt Width |
320mm |
|
Weighing Method |
Weighing Sensor |
|
Operational Method |
LCD Touch Screen(Multilingual) |
|
Alarm |
Buzzer, Lamp |
|
Rejection |
Air Jet Type/ Flapper Type/ Pusher Type |
|
Products Preset |
100kinds |
|
Power Supply |
AC110V/220V 50-60HZ |
|
Rated Output |
200W |
|
Air Supply |
0.6-1Mpa |
|
Air Pressure Connection Point |
dia8mm(Optional) |
|
Prepared Connection Point |
Printer, Signal Feedback |
|
Weight |
Appr135Kg |
|
Dimension |
1690mm(L)*700mm(W)*1350±50mm(H) |
|
Above is standard data, different products size and working environment may effect above data.
