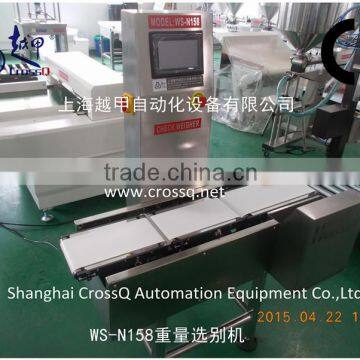

Online Weight SOrting Machine WS-N158 (5-600g)
FEATURE
1. Strong stainless steel structure; Water proof design(Optional).
2. High accurate load cell; Based on advanced DSP technology.
3. Automatic weighing compensation and zero tracking.
4. 200 products preset; Easy to edit and recall.
5. Quickly product shift and speed recall.
6. Quick USB data copy and restore system.
7. Color LCD touch screen with multi-language panel, easy to operation.
APPLICATION
Online foods package weighing and sorting.
Applied to packing foods quality control.
Used to check unit product’s weight whether meet target object, and automatically
reject sub-standard products.
SPECIFICATION
Type | WS-N158 | ||
Weighing Range | 5-200g | 6-600g | |
Conveying Speed | 40-90m/min(adjustable) | ||
Speed | Max.200packs/min | Max.150packs/min | |
Accuracy | ±0.3g | ±0.6g | |
Minimum Scale(g) | 0.1 | 0.1 | |
Belt Width | 158mm | ||
Weighing Method | Weighing Sensor | ||
Operational Method | Color LCD Touch Screen(Multilingual) | ||
Alarm | Buzzer, Lamp | ||
Rejection | Air Jet Type/ Flapper Type/ Pusher Type | ||
Products Preset | 200kinds | ||
Power Supply | AC110V/220V 50-60HZ | ||
Rated Output | 100W | ||
Air Supply | 0.6-1Mpa | ||
Air Pressure Connection Point | 8mm(Optional) | ||
Prepared Connection Point (Optional) | Printer, Signal Feedback | ||
Weight | Appr.97Kg | ||
Conveyor Height | 750±50mm(Can be optional based on requirement) | ||
Dimension | 850mm(L)*520mm(W)*1350±50mm(H) | ||
Above is standard data, different products size and working environment may effect above data.
Welcome to visit CrossQ company to test each of our CHECK WEIGHER.

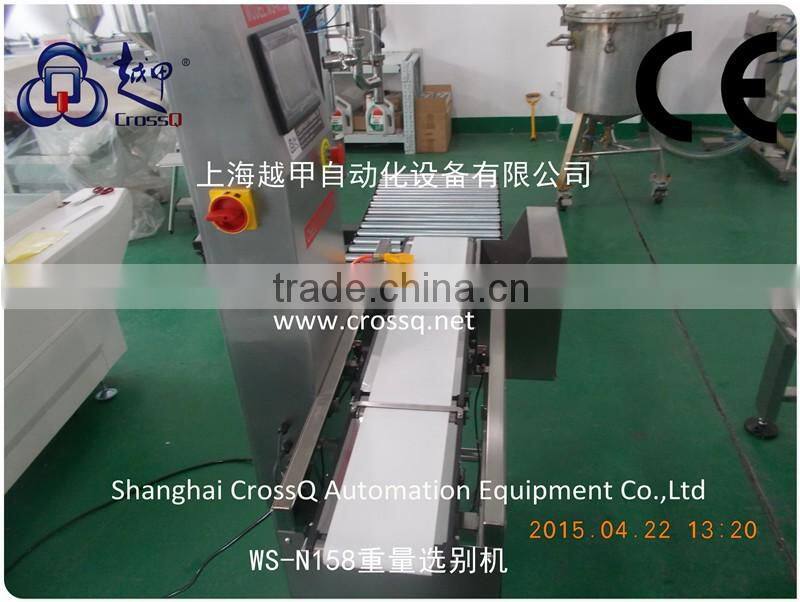

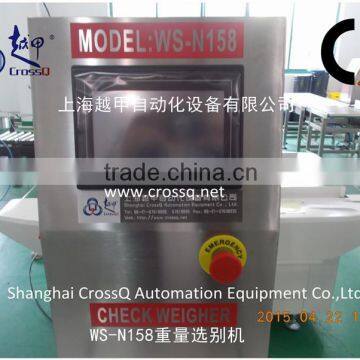

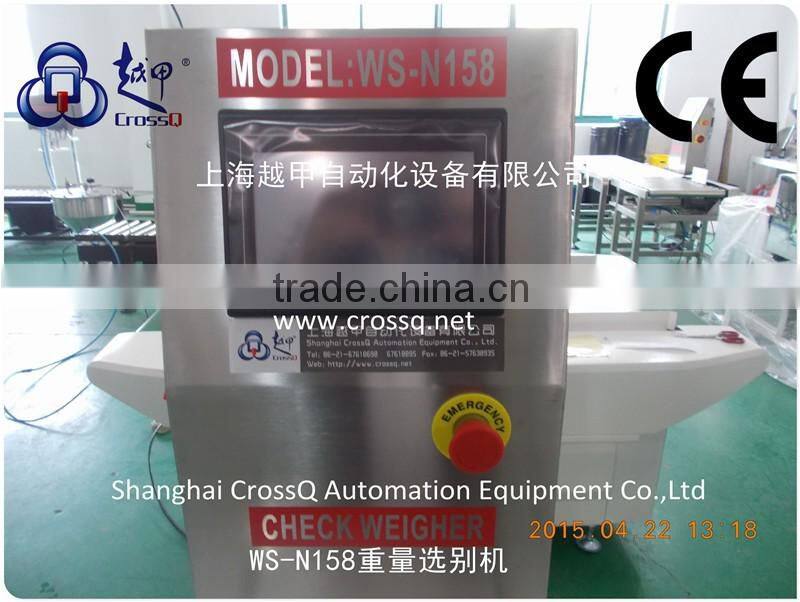

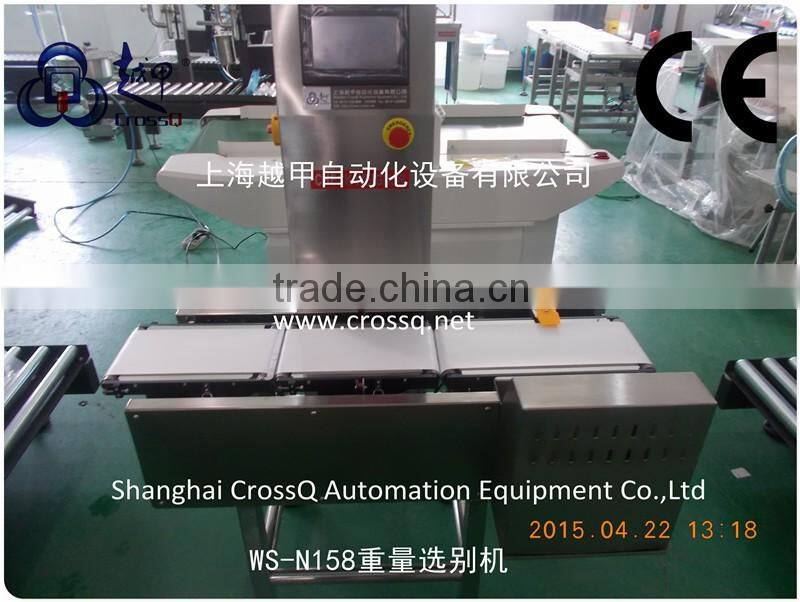

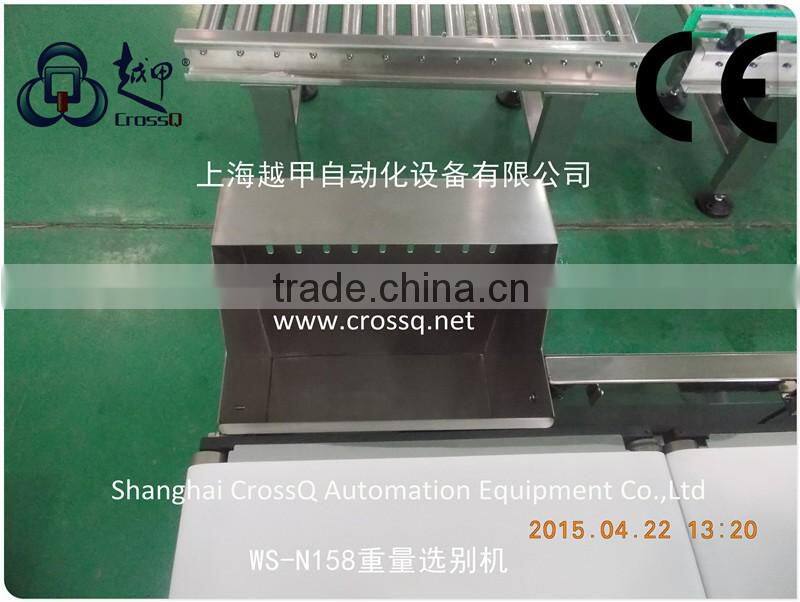

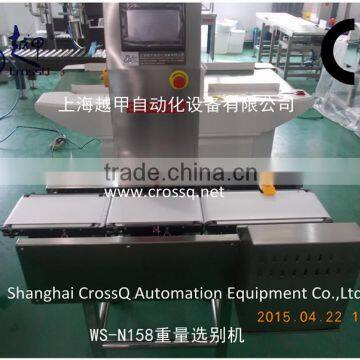

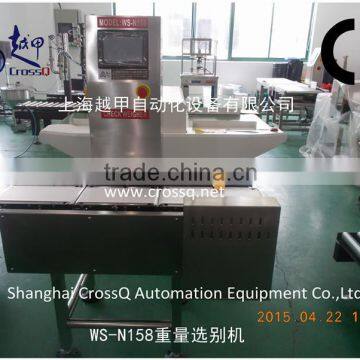

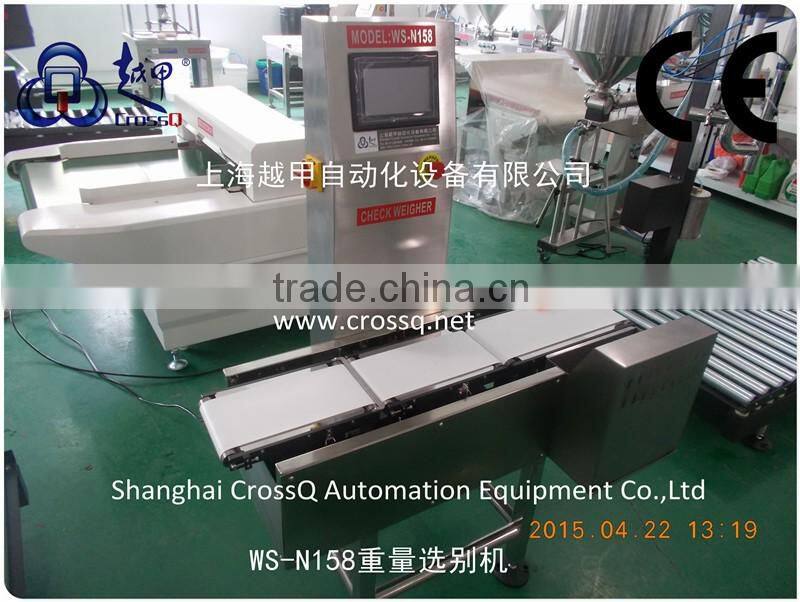

Photos
