Product Details
Condition: | New | Application: | Other, Food/Oil Barrel, Plastic Bucket, Coating Barrel, Paint Barrel etc | Driven Type: | Electric |
Automatic Grade: | Semi-Automatic | Power: | 110V/220V/380V, 50HZ/60HZ | Packaging Type: | Barrel |
Packaging Material: | Plastic | Place of Origin: | Shanghai, China | Brand Name: | CrossQ |
Model Number: | FC-P |
Product Description
Big Size Plastic Caps Capping Machine
Model: FC-P
(With Aerofluxus Function
Connecting Weighing Filling Machine FM-W/20L(4-20L)
Capping Plate size: standard dia34mm, can be optional based on bigger barrel cap.
APPLICATION
This kind Lids/Caps Pressing Machine FC-P mainly used in open barrels, paint barrels, oil barrels, drums, paint bucket, hand drum (easy handheld type) series: 4L, 5L, 10L, 12L, 18L, 20L. It’s belonged to necessary special tools which widely used in Barrel, Can, Lubricants, Coatings, Chemicals, Petroleum, Edible oil and other Liquid packaging industries.

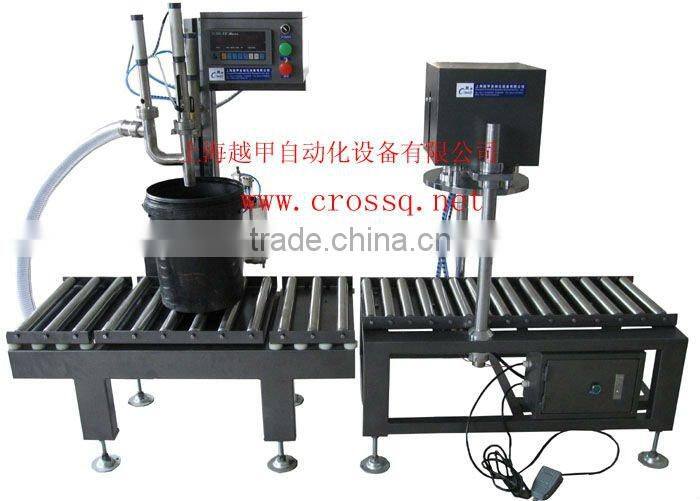

Filling Machine + Capping Machine together to meet (4-20L) Filling & Capping function.
Roller Height: 500mm (Also can be done as exact requirement)
need 50L filling + capping, can be optional at factory.
FEATURE
1.Capping Machine FC-P: It’s an important part the production line, finishing barrel cover capping,
twice capping make sure tight & flat during and after capping.
2.Capping Machine FC-P: Locating heavy barrel below capping plate, after finishing positioning
work, use foot switch to start capping function, which including twice capping.
3.Capping Machine FC-P Aerofluxus Function: there’s an aerofluxus device under the middle size
of capping plate, this function can make barrel air-out to protect barrel when capping.
SPECIFICATION
Name | Semi-auto Capping Machine |
Model | FC-P |
Control System | Electric-Pneumatic |
Capping Range | 4-20L |
Capping Plate Size | dia34mm (Be Optional) |
Capping Speed | (20L)120-150pcs/h (4-10L)150-200pcs/h |
Material | Painted Steel, Roller without engine |
Dimension | 1000(L)×520(W)×1300(H) (mm) |
Weight | 60KG |
Another Different design:
Filling Machine + Capping Machine together to meet (4-20L) Filling & Capping function.
Roller Height: on floor
