Help CenterFilling Capping Machine FC-P
Related Products
Semi-auto Lids / Caps Pressing Machine FC-P
(With Aerofluxus Function)
Capping Plate size: standard dia34mm, can be optional based on bigger barrel cap.
APPLICATION
This kind Lids/Caps Pressing Machine FC-P mainly used in open barrels, paint barrels, oil barrels, drums, paint bucket, hand drum (easy handheld type) series: 4L, 5L, 10L, 12L, 18L, 20L. It’s belonged to necessary special tools which widely used in Barrel, Can, Lubricants, Coatings, Chemicals, Petroleum, Edible oil and other Liquid packaging industries.

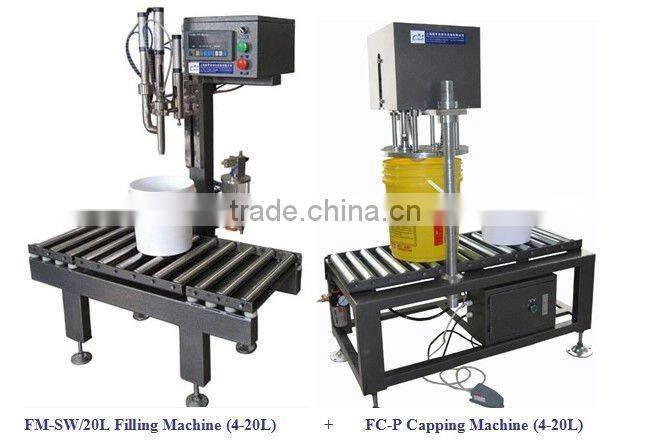

Filling Machine + Capping Machine together to meet (4-20L) Filling & Capping function.
Roller Height: 500mm
FEATURE
1.Capping Machine FC-P: It’s an important part the production line, finishing barrel cover capping,
twice capping make sure tight & flat during and after capping.
2.Capping Machine FC-P: Locating heavy barrel below capping plate, after finishing positioning
work, use foot switch to start capping function, which including twice capping.

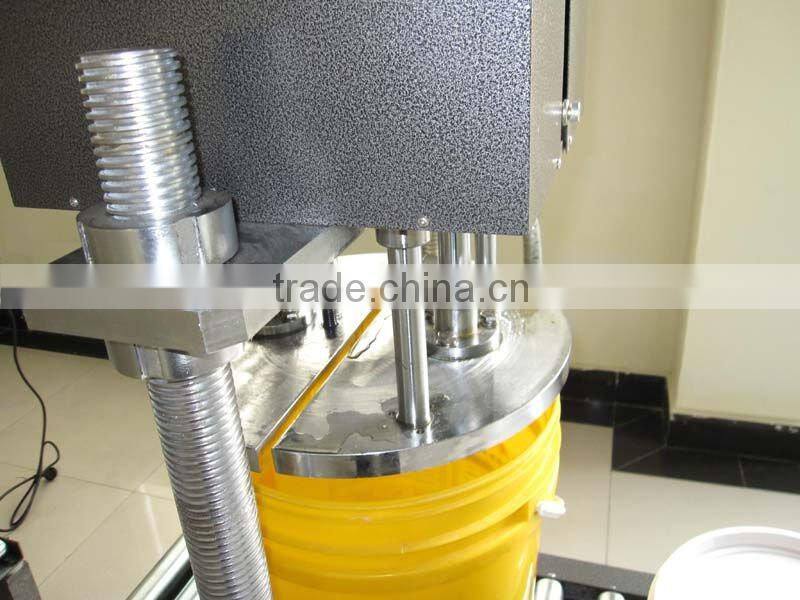

3.Capping Machine FC-P Aerofluxus Function: there’s an aerofluxus device under the middle size
of capping plate, this function can make barrel air-out to protect barrel when capping.
SPECIFICATION
Name |
Semi-auto Capping Machine |
Model |
FC-P |
Control System |
Electric-Pneumatic |
Capping Range |
4-20L |
Capping Plate Size |
dia34mm (Be Optional) |
|
Capping Speed |
(20L)120-150pcs/h (4-10L)150-200pcs/h |
Material |
Painted Steel, Roller without engine |
Dimension |
1000(L)×520(W)×1300(H) (mm) |
Weight |
60KG |

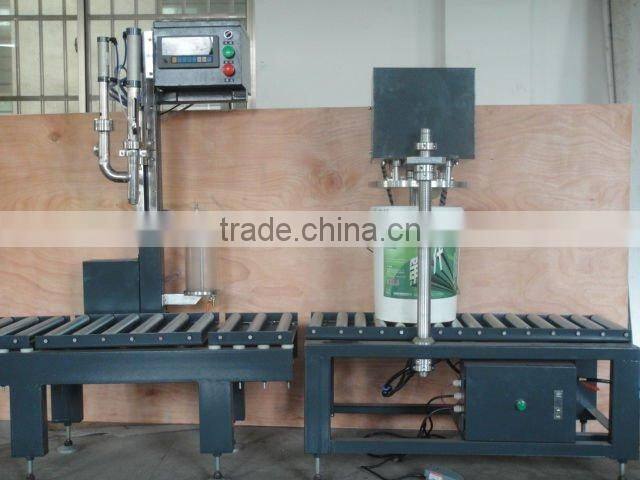

Another Different design:
Filling Machine + Capping Machine together to meet (4-20L) Filling & Capping function.
Roller Height: on floor
