protective packaging peak performance external modulation optical transmitter
- 5000 Piece / Pieces per Month
- T/T Credit Card PayPal
- Clamshell packing digital display Clamshell packing digital display BHT1550 1550nm external modulation optical transmitter
- double switching power supply peak performance external modulation optical transmitter
- space-saving 19 "standard rack space-saving 19 "standard rack BHT1550 1550nm external modulation optical transmitter
- low cost high capacity of power supply external modulation optical transmitter
- double switching power supply 19 "standard rack external modulation optical transmitter
- Laser as the light source high-level Laser as the light source high-level BHT1550 1550nm external modulation optical transmitter
Product Details
Place of Origin: | Sichuan, China | Brand Name: | BH | Model Number: | 1550nm |
Packaging Details
Carton with EPE cotton inside,Packing size:580mm*530mm*120mm.Gross weight:7.7KGS
Product Description

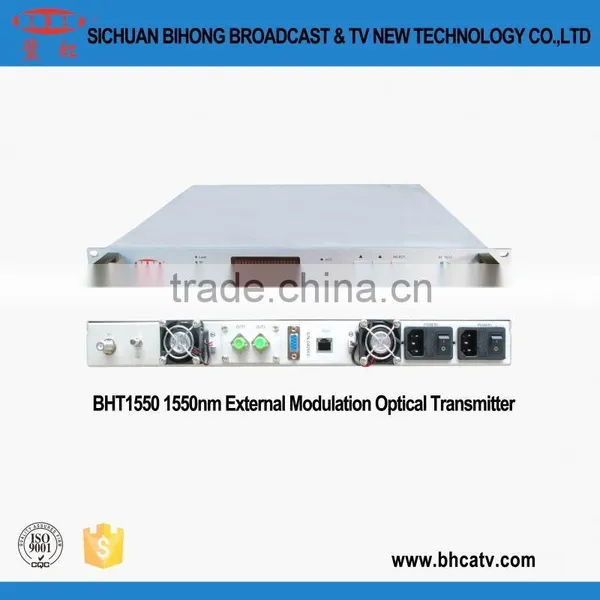

protective packaging peak performance external modulation optical transmitter
The main features
1, Adopts low-noise imported original DFB laser as the light source, and highly-linear LINBO3 external modulator for signal modulation;
2,The superior predistortion circuit design can still have perfect CTB, CSO performance even at high standard CNR values;
3, Excellent SBS suppression circuits and 13, 16, 18 adjustable SBS thresholds adapt different network requirements;
4, Automatic gain AGC control makes different RF input levels maintain adequate output performance;
5, Dual power-supply hot backup can realize automatic switchover;
6, Full-automation case temperature control;
7, The machine, with built-in micro-processing software, has many functions like laser monitoring, digital display, failure alarm, network management, etc.;
8, The machine provides RJ45 standard network management interface, conforming to GB/T20030-2005 hybrid fiber coax equipment management system specifications.
protective packaging peak performance external modulation optical transmitter The main technical indicators | ||
Items | Performance | Indicators |
The optical properties | Laser wavelength (nm) | 1550±10 |
The output power (dBm) | 2×7,2×9 | |
Light reflection loss (dB) | ≥60 | |
Optical fiber connector | FC/APC or SC/APC | |
Radio frequency characteristics | Working bandwidth (MHz) | 45~750/860/1000 |
Input level (dBuV) | ≤83±5 | |
Flatness (dB) | ≤±0.75 | |
Reflection loss (dB) | >16 | |
Input impedance (Ω) | 75 | |
Link features | Transmission channel | PAL-D/60ch |
CNR (dB) | ≥51 | |
CTB(dB) | ≥65 | |
CSO(dB) | ≥65 | |
SBS suppression (dBm) | ≥ 16.5 (13, 16, 18 optional) | |
General features | Network management interface | RJ45 |
Power supply (V) | 110 ~ 270 (optional - 48 VDC) | |
Power consumption (W) | ≤50 | |
Working temperature (°C) | -10~+55 | |
Storage temperature (°C) | -20~+70 | |
Installation dimensions | 1U standard case |
Carton, or according to your requirement.
There are several methods of transport: by sea, by air or express.
1, If product has any quality problem caused by our reason would be replaced for free.
2, 24 hours telephone service for after-sales technical support.
