Specifications
1. Excellent performance2. High efficiency
3. Energy-saving
4 .Safety and easy to operate
5. Environment-friendly

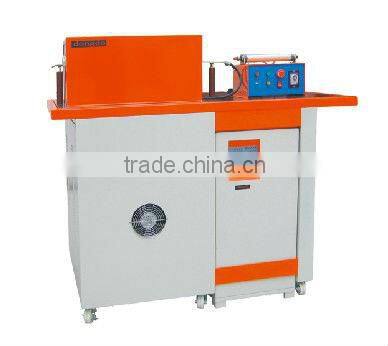

Annealing steel wire furnace machine
1. Excellent performance
2. High efficiency
3. Energy-saving
4 . Safety and easy to operate
5. Environment-friendly
Annealing steel wire furnace machine
Main model and applications
Maximum melting capacity one time:20 to 30 minutes are needed.
Model | Steel,iron,stainless steel | Copper,gold,silver | aluminum |
DDZP-15 15KW | 4KG | 5-10KG | 3KG |
DDZP-25 25KW | 8KG | 20KG | 6KG |
DDZP-35 35KW | 12KG | 40KG | 12KG |
DDZP-45 45KW | 18KG | 70KG | 21KG |
DDZP--70 70KW | 28KG | 100KG | 30KG |
DDZP-90 90KW | 45KG | 120KG | 40KG |
DDZP--110 110KW | 60KG | 150KG | 50KG |
DDZP-160 160KW | 100KG | 250KG | 75KG |
Annealing steel wire furnace machine
Main model and applications
Models | DDZP-15 | DDZP-25 | DDZP-35 | DDZP-45 | DDZP-70 | DDZP-90 | DDZP-110 | DDZP-160 | ||
Fixed Power Input | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW | ||
Output Voltage | 70-520V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | ||
Input Power Source | Three Phases 340-420V 50-60HZ | |||||||||
Output Oscillating Frequency | 1KHZ-20KHZ It's made based on customer's requirement of parts heat treatment | |||||||||
Duty Cycle | 100% full load,24 hours of continuous work | |||||||||
Weight | 24KG | 24KG | 34KG | 36KG | 51KG | 57KG | 89KG | 130 KG | ||
Volume(CM) | 29(W)×47(H)×48(L) | 29×47×54 | 37×57×67 | 42×89×77 | ||||||
others | For normal products,it's made of normal panel,but can make automatice ones with time PCB function.PCB panel function includes:heating time:0.1-99.9 seconds;retain time:0.1-99.9 seconds. | |||||||||
Annealing steel wire furnace machine
M.F melting furnace consists of
1. ultra-small frequency induction heating power supply
2. top-out or rotating-type melting furnace
3. the compensation capacitor box
Annealing steel wire furnace machine
Annealing (tempering and modulation)
1, Annealing of various stainless steel products, such as stainless steel basin annealed and extruded can annealed folded,annealed sink,stainless steel tube, tableware and cup.
2,Annealing of various other metal work pieces,such as golf ball head,cue brass lock,hardware copper fitting,kitchen knife handle,blade,aluminum pan,aluminum pail,aluminum radiator and various aluminum products.
Annealing steel wire furnace machine
photos
