35KW End Bar Hot Forging Machine With IGBT Technology

1. DDZP induction heating generator.

2. compensating capacitor

3. heating coil and guide rail and coil cover.

4.pneumatic rod feeder.

ing table and stander.

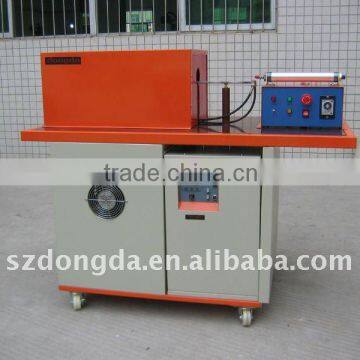

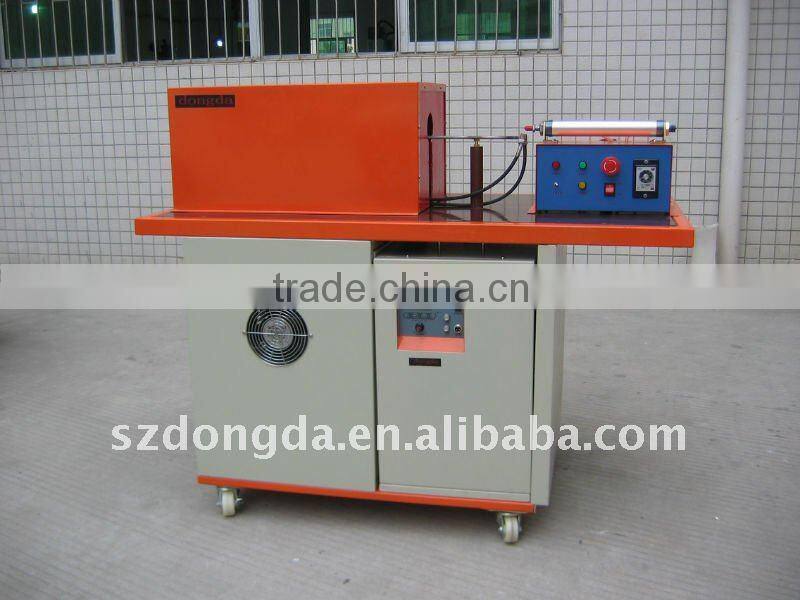

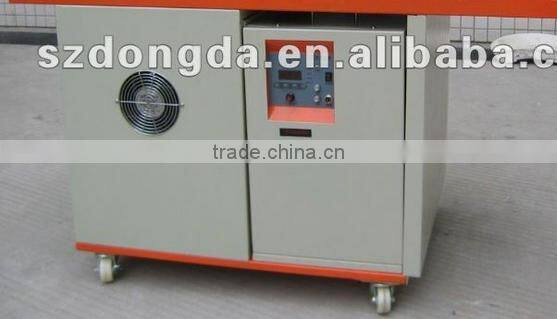

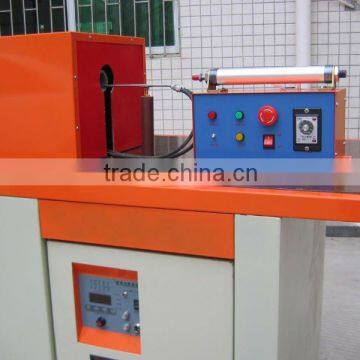

this is the induction hot forging machine power supply and the furnace , it could be best suitable for the induction hot forging machine working demands use .

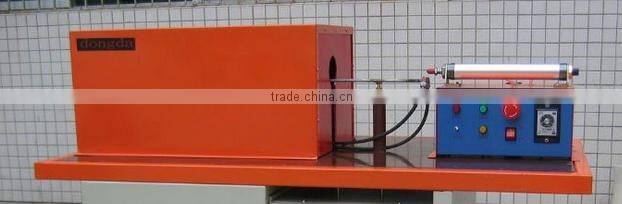

this is the furnace for the nuts and bolts hot forging design , it could be best suitable for the induction hot foring machine working design and also those machine could be best suitable for the induction hot forging working

induction hot end bar hot forging machine with IGBT technology working demands , it could be best suitable for the induction hot forging machine working demands . which could be best suitable for the induction hot forging

Options:

1.infrared sensor,

2.temperature controller.

3.automatic rod picking and feeding systems

4.hydraulic pump.

5.water cooling systems.

6.others.

Main Applications:

DDZPforging furnace is used to heating rod with diameter from 15 to 80mm or quadrates or other shape stuff in the shaping of screws, nuts, valves, locks and other metal parts, the material can be steel ,stainless steel, copper, brass, aluminum and so on,  that used for whole heating, partial heating or middle part heating.

This is the induction hot forging machine working demands for the bolts hot forging machine working demands , it could be best suitable for the induction hot forging machine working demands.

this is the induction hot forging machine with IGBT technology hot forging machine

Typical applications:

Whole rod heating,manual feed end heating,Auto-feed end heating ,end or middle part heating

DDZP heating furnace with infrared temperature controller

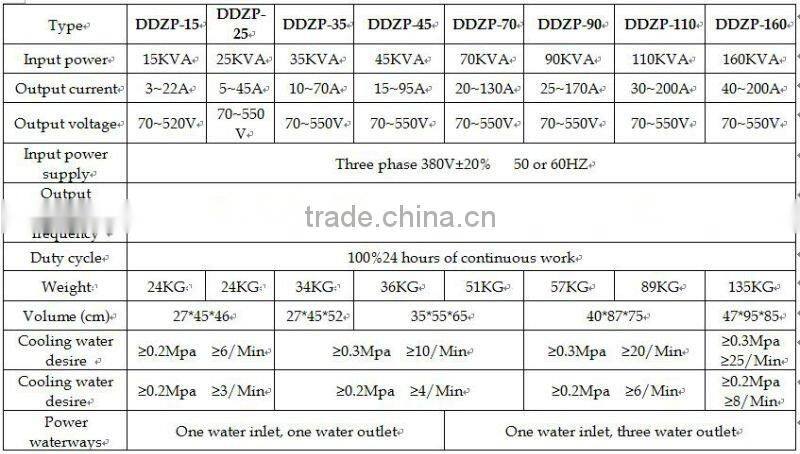

Main models and heating ability:

Used for materials such as copper and aluminum which have small gap between forging temperature and melting point.and also used for the occasion when forging temperature is needed to be accurately controlled.

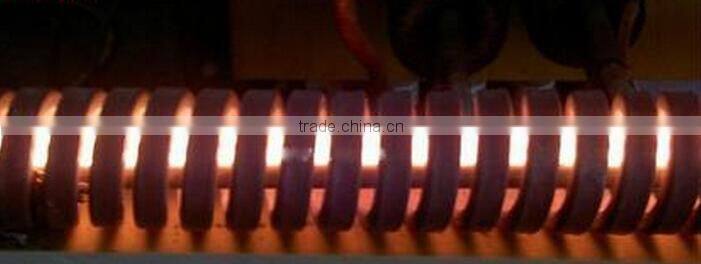

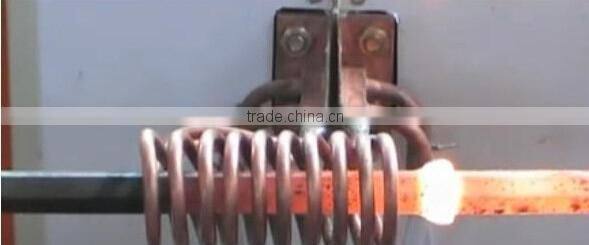

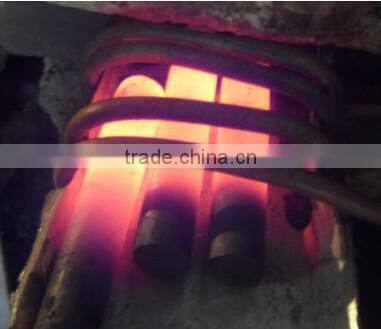

this is the induction coils for the induction hot forging working demands , it could be best suitable for the induction hot forging working demands and also those machine could be best suitable for those machine working

Advantages:

1.by detecting the rod temperature at the outlet of the induction coil, the heating power is controlled by the temperature controller device, such to control the temperature of the rod.

lting of rods inside the induction coil will not happen any more by the using of infrared sensor and temperature control device. The operating is eased, at the same time, repair of the induction coil is decreased greatly.

3.it is especially important and necessary to use infrared sensor when heating brass and aluminum rods of which the forging temperature and melting point is very near. The forging temperature of brass is about 700°C and melting point about 900°C, the forging temperature of aluminum is about 450-500°C and melting point about 660°C, in the continuously heating and feeding process, it is likely to happen that the rods melt inside the induction coil due to to careless of operator,. To install the infrared sensor is the only way to solve this problem.

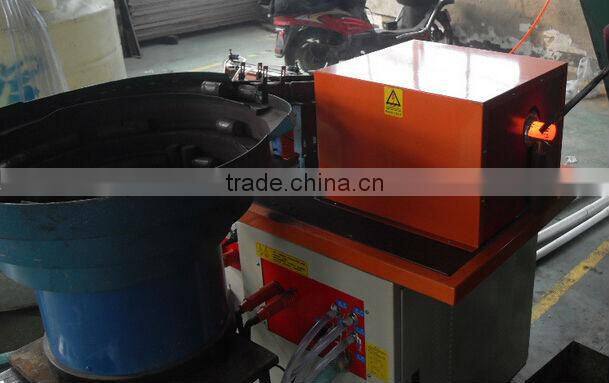

Rod heating furnace with auto-feed system

Used for the automatically heating of steel, brass, aluminum and other metal rods.

Characteristics:

1.whole processes including the rod picking up, rod selecting, rod pushing and rod sending out, heating and temperature controlling are all automatically controlled by PLC device.

2.a wide range of rod size from Φ20 to Φ60 and length from 50 to 250mm.

3.the temperature of the rod can be exactly controlled to achieve high quality of the parts.
