Specifications
Power Supply constant voltage 15w 12v1.Short circuit/ Overload /Over voltage/over temperature
2.100% full load

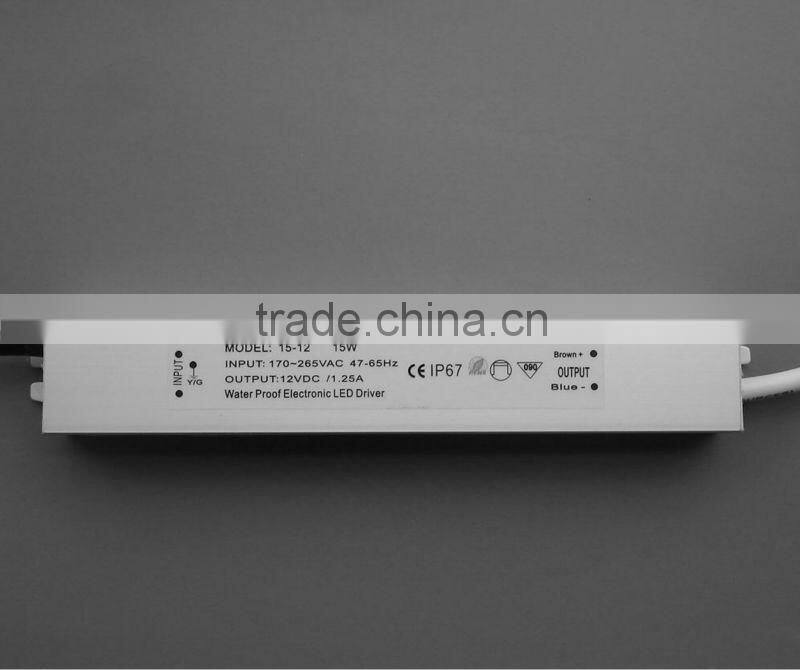

Power Supply constant voltage 15w 12v
FEATURES
1. Input Voltage AC170-265V
2. Protections: Short circuit/ Overload /Over voltage/Over temperature
3.100% full load test
4. Pass IP67 and CE
5.1-year warranty
Model No. : SUN-15-12
Output Rated DC voltage 12V±0.5V
Output Rated current 125mA
Current range 125mA±50mA
Output Rated Power 15W
Output Ripple & Noise <500mVp-p
Power Factor >0.6
Load regulation ±2%
Input Voltage range 170~265VAC;240~360VDC
Frequency range 40~50Hz
Efficiency (Typ.) >80%
Leakage current 0.5mA/240VAC
PROTECTION Over load 24V
With short circuit protection
NO over-temperature protection
Working TEMP.-25°C~50°C
Storage TEMP.-40°C~80°C
Waterproof IP67
Vibration 10~500Hz,2G 10min/1cycle,X,Y,Z 60min
TEMP. coefficient ±0.03%/°C(0~50°C)
MTBF 50K Hours MIL-HDBK-217F (25°C)
Dimension 180x30x20mm
Weight 180g
Drawing for Power Supply constant voltage 15w 12v :
