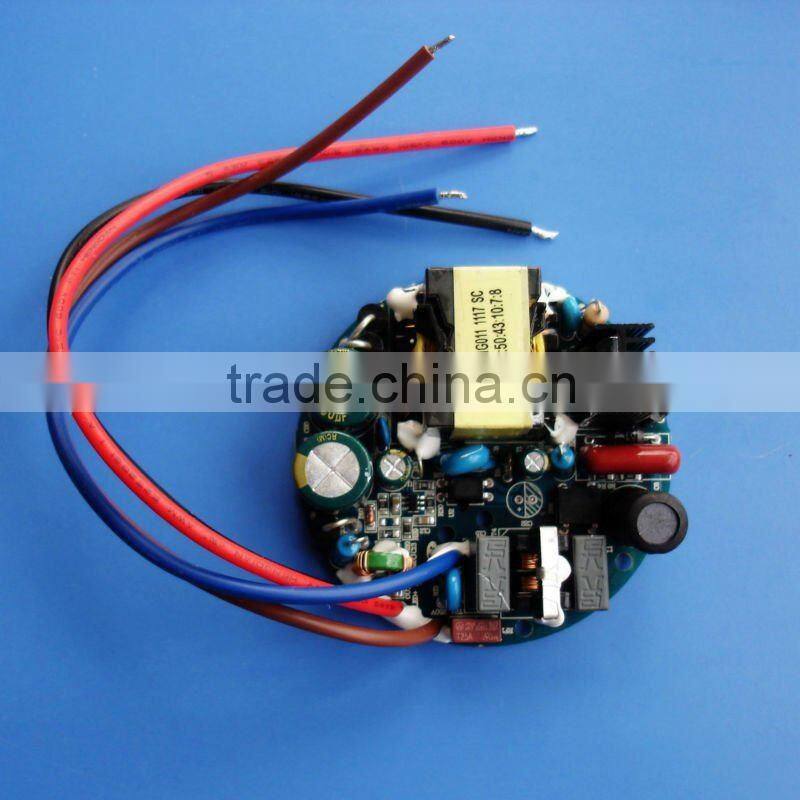

28W 320mA PFC Constant Current LED Driver Factory
| Model | AT1585-28x1 |
| DC Voltage: | 56-90VDC |
| DC current: | 320mA |
| Rated power: | 28W |
| Input power: | 100-240VAC |
| Efficiency: | 80%~85% |
| Size: | 67*25mm |
| Packing: | 0.14kg/pcs, 50pcs/ctn |
Features:
• Universal AV input with full range: 100VAC~240VAC
• Built-in active PFC fuction, PFC≥0.95
• Comply with ROHS, EMC standard
• Protection: Over voltage, Over load, Over temperature, Short circuit
• High efficiency (80%~85%)
• Long life span: 50000hrs
• 100% burn-in tests (at full load), full-round tests.
• 2 years warranty
• Rated output can be customized
Specification For Constant Current LED Driver Factory
Model NO. |
AT1585-28X1W |
AT1585-7X4W
|
Rated Input voltage |
110VAC/220VAC |
|
Input voltage scale |
100~240VAC ,47~63Hz |
|
Power factor |
>0.9 |
>0.9 |
Efficiency |
>80% |
>80% |
Rated input power |
<36W |
<36W |
Loading input power |
<3W |
<3W |
Short-circuit input power |
<5W |
<5W |
AC Current |
<370 mA |
<370 mA |
Cold start surge current |
<15A |
<15A |
Leakage current |
<2mA |
<2mA |
Constant current output scale |
320±20mA,56~90V |
1280±50mA,14~22.5V |
Loading voltage |
<120V |
<35V |
Ripple ,noise |
3V |
2V |
Linear adjust |
2% |
2% |
Load regulation |
2% |
2% |
Time for starting |
<1.3S |
<1.3S |
Opposite for wires |
Normal working |
|
Low or high voltage |
Low voltage ,no output or twinkle ;high voltage will damage the power supply |
|
Overheat |
IC has protection for overheat |
|
Working temp & humidity |
-20°C-60°C,20-95%RH |
|
Storing temp ,humidity |
-25°C-80°C,20-95%RH |
|
RoHS |
YES |
|
MTBF |
>25000 HOURS |
|
Dimension ,weight |
PCB:67mm*25 mm ;100g |
|
|

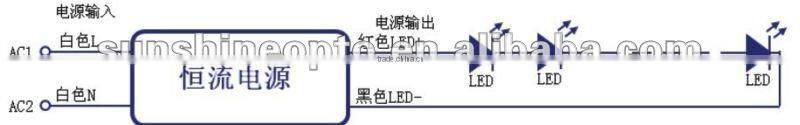

Input wires:
|
stranded cable/white/22AWG/length 150mm; L,N, |
|
Output wires |
stranded cables /black/22AWG/length 150mm LED - ; RED /LED + |
|
Working environments:
• Make sure work in proper environments are stated in this Guide.
• Do not overload.
• Avoid free of load while a power supply is powered on, keep proper loading
• Always keep good ventilation
• Do not mount on wood or flammable surface, keep minimum 5CM for LED power supplies each other.
• Keep away from inflammable or explosive environments.
Key Application:

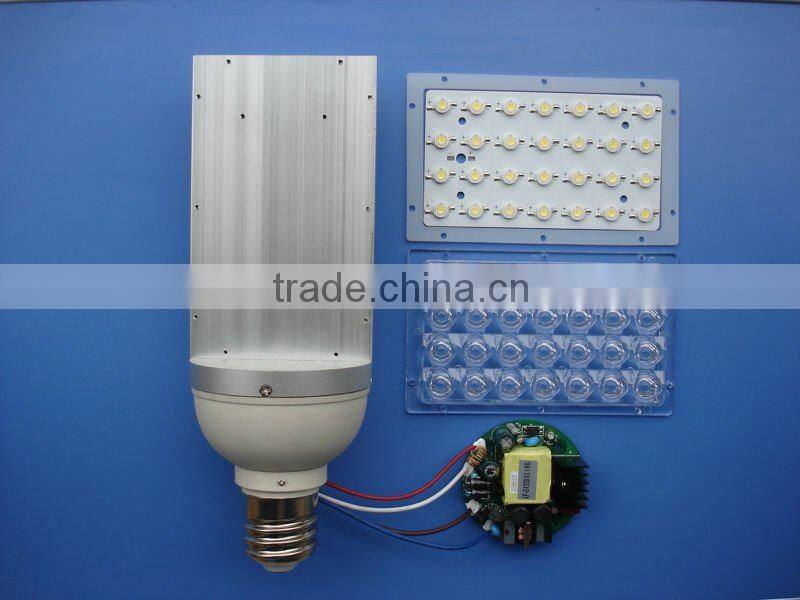

Suitable for LED electronic display screen, LED street lights, LED tunnel lights, LED bridge lights, LED panel lights, LED ceiling lights, moving sign application, etc
Why choosing us - SUNSHINEOPTO ?
1. About 6 years specializing in High Power LED
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
6. Packaging: strong enough package to protect goods
7. Shipping: any shipping can be arranged as your request.
8. We have a R&D department with a professional team and we have a factory with rich experience, So OEM and ODM can be accepted.
9. Our after-sale service is complete. The warranty is 12 months.
How To Order Our Product ?
1,Customers offer general drawing of the product.
2,Our designer will make a professional drawing according to your product layout.
3,After your confirmation of the drawings,inform us the material and types you need.
4,We will do quote once get the confirmation of you.
5,Note Customers can order all product samples we put or you can also have your own idea as we are custom-made product supplier,so different colors and types are available.
