Specifications
Excellent fiber optic cable factory indoor/outdoor ribbon optical fiber cable1.PVC/LSZH sheath
2.single mode/multimode/OM3

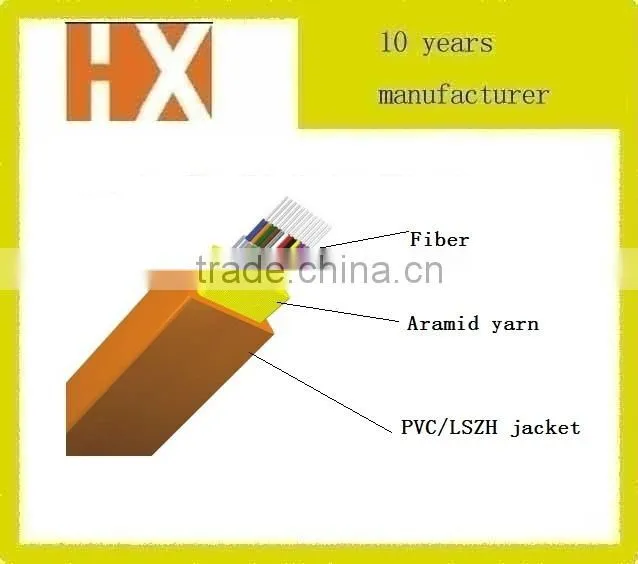

Excellent fiber optic cable factory indoor/outdoor ribbon optical fiber cable
1. Description
- Excellent stripping performance of tight buffer , ribbon fiber optic cable, flat fiber optic cable
- GJDFJV Indoor Ribbon Optical Fiber Cable From 2core to 12core
- Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4
- Low dispersion and attenuation
- for indoor with aramid yarn
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20°C) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Note: A:The color of fiber in loose tube is arranged from NO.1 color successively.
B:Other color indentifications available on request
Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N |
Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
Long Term |
Short Term |
Long Term |
Short Term |
Dynamic |
Static |
||||
2 |
2.5×3.5 |
9 |
80 |
200 |
200 |
500 |
20H |
10H |
-20-+60 |
4 |
2.5×3.5 |
9 |
80 |
200 |
200 |
500 |
|||
6 |
2.5×4.0 |
11 |
80 |
200 |
200 |
500 |
|||
8 |
2.5×4.5 |
12 |
80 |
200 |
200 |
500 |
|||
12 |
2.5×5.0 |
15 |
80 |
200 |
200 |
500 |
|||
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension in the tahle, which are according to single ribbon, are subject to change with the ribbon count; 3. H is height of the flat cable; 4. The minimum bend radius (static) is 5H when G657 fiber is used. | |||||||||
5. Packing& Shipping
- packing in Wooden drums, Polywooden drums or other drums according to clients' need
- shipping by sea or air
6. Services
Sample: Can provide by our factory
prist list: can provide by our salesperson
after-sales: one by one
7. Introduction
Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce optical fiber products:
1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)
2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)
3.FTTH(bow-type access cable,self-supporting bow-type cable)
4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.
5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter
