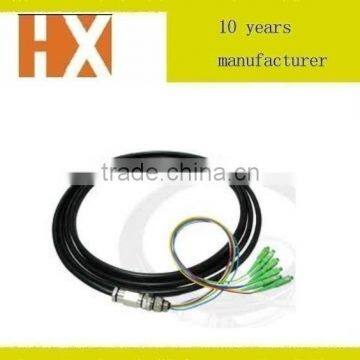

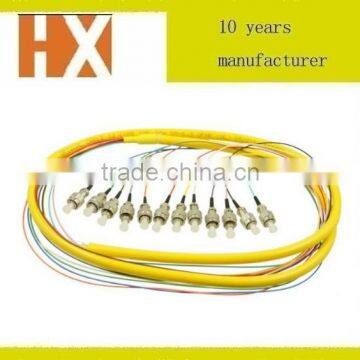

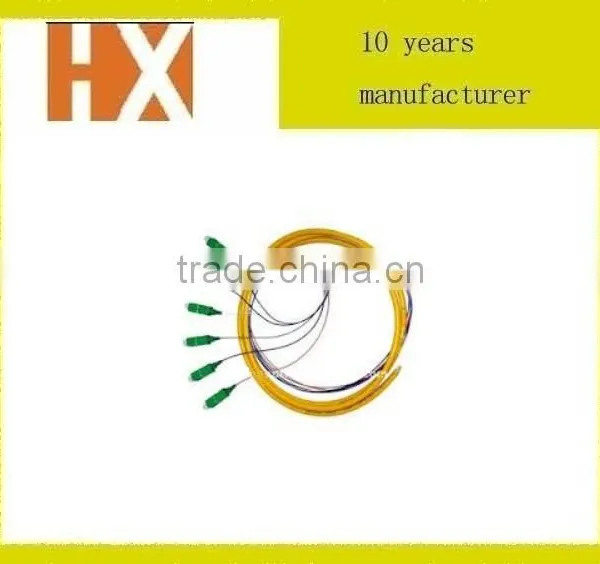

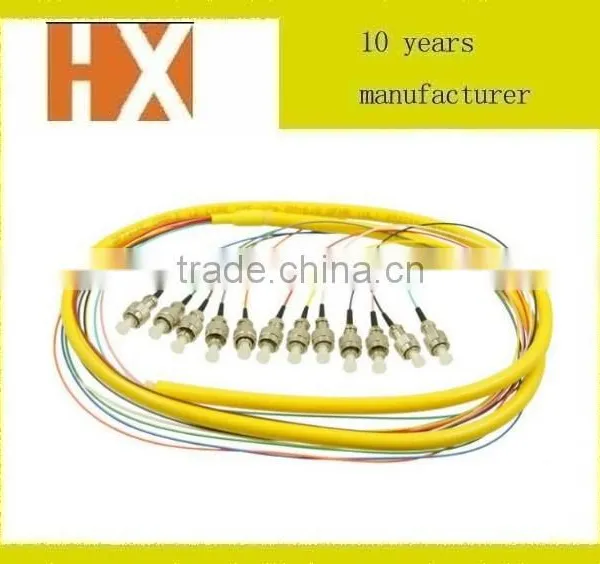

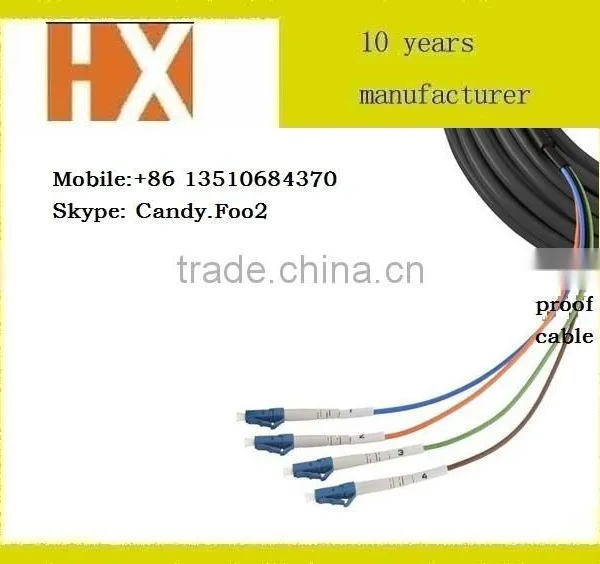

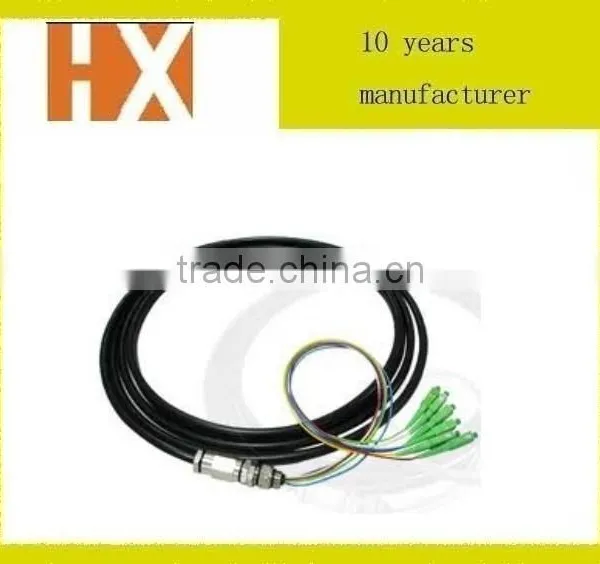

Hot Selling Fiber Optic Pigtail Bunchy Pigtail

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	HX
Model Number	Bunchy Pigtail

Product Description

Specifications

Hot Selling Fiber Optic Pigtail Bunchy Pigtail
1.factory
2.easy to install
3.SC/ST/FC/LC type

Hot Selling Fiber Optic Pigtail Bunchy Pigtail

1. Description

- Pre-terminated Fibre optic cables
- Plug-and play fibre eliminates the need for complicated sensitive field terminations and splices
- Available in 4,12,24,36,72,144 cores or custom fibre counts
- Fiber: singlemode OS1/OS2, G657, G652(9/125um), OM1(62.5/125um), OM2, OM3 and OM4(50/125um)
- Connect with the following connectors ST, SC, LC,FC, MTRJ, SMA, E2000, MU
- Available in PC, UPC and APC

2. Characteristics

HX offer multi fibre cable assemblies , such as multimode MPO/MTP to 12 connectors and other types like 12 core SC UPC TO 12 core LC APC. We can use bundle fibre cable(Loose tube, tight bugfered, breakout, steel tape armoured) or ribbon fibre cable(2, 4,6,8,10, 12 fibres).

3. Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
(+20°C)	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km

Fiber color code:

Note: A:The color of fiber in loose tube is arranged from NO.1 color successively.
B:Other color indentifications available on request

Structure:

4. Technical Parameters

Fiber Optic Patchcords / pigtails
Application :LAN Telecommunications, Data Cmmmunications, Component termination, CATV
Specifications
· High Repeatablity &Stability
· OD of cable:0.9mm,1.6mm,2.0mm,3.0mm…
· Cable Type:PVC,LSZH,OFNP,OFNR
· Fiber Type:9/125um 50/125,62.5/125um
Parameter
Connectors	UPC/PC(SM)	APC(SM)	PC(MM)
Reture Loss(dB)	≥50	≥60	≥35
Insertion Loss(dB)	≤0.2		≤0.3
Repeatability(dB)	≤0.1(1000matings)
Operating Temperature(°C)	-40~+80
Tensile Strength(N)	≥90(Φ3.0),≥70(Φ2.0)

5. Packing& Shipping

packing in Wooden drums, Polywooden drums or other drums according to clients' need
shipping by sea or air

6. Services

Sample: Can provide by our factory

prist list: can provide by our salesperson

after-sales: one by one

7. Introduction

Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce optical fiber products:

1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)

2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)

3.FTTH(bow-type access cable,self-supporting bow-type cable)

4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.

5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter

8. Certificate
