Specifications
3 watts led heat sink pcb1.Epistar&Bridgelux chip
2.Various of colors available
3.low-attenuation.
4.2 years warranty

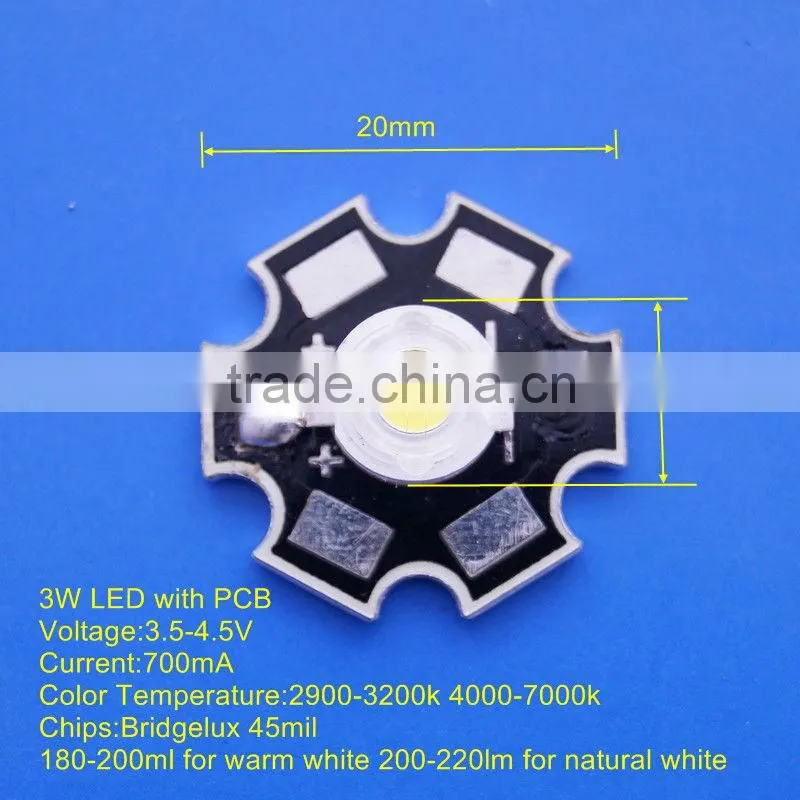

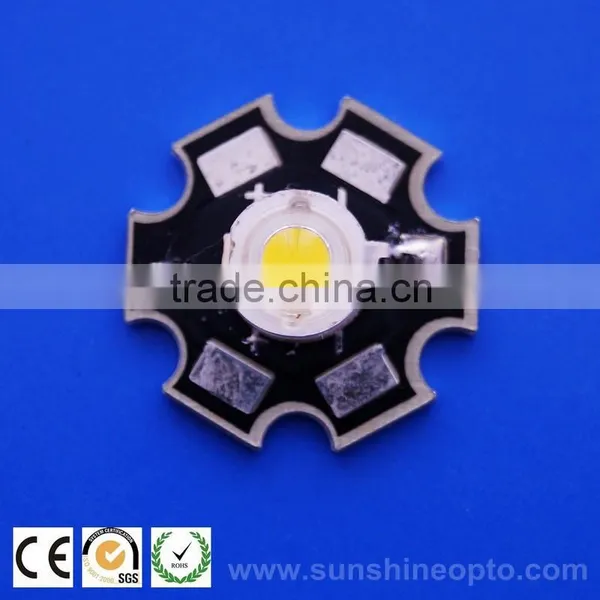

3 watts led heat sink pcb 1w led printed heat sink
Model:SP3W200
PCB Size: diameter of 20mm
LED angle :120degree
Voltage:3.0-3.6v for 1w/3.5-4.5v for 3w
Current:350ma for 1w /700ma for 3w
Color temperature: 2900-3200k , 4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k
Chips: Epistar or Bridgelux chip
Luminous Flux :120-140lm for 1w, 200-220lm for 3w
Advantage : LM-80 Energy Star Passed
BEST raw materials used in our LED production are as following :
Chip:USA Bridgelux chip, Taiwan Epistar chip
Silicon glue: USA Dowcorning (good glue has less lighting decreasing)
Powder: USA Intermatix (good powder has better performance in lumens)
Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper)
Led base:red/ black cooper base (for better thermal conductive/ disspation)
Similar related led products in Green ,Blue ,Red ,warm white ,RGB :
Featuresof 1/3W high power led
*Super high Flux output and high Luminance
*Designed for high current operation
*Low thermal resistance
*SMT solder technology
*Lead Free product
*ROHS compliant
Applications for 1/3W high power led
*General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling

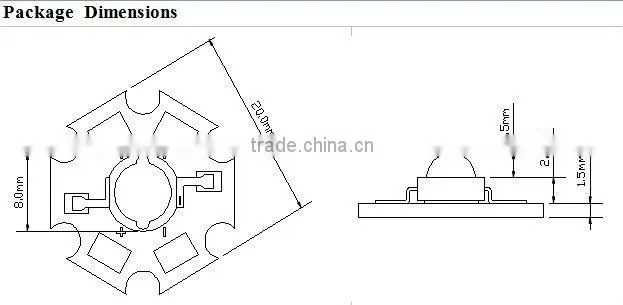

Outline Dimensions of led - Dome Type of 1w/3w led :

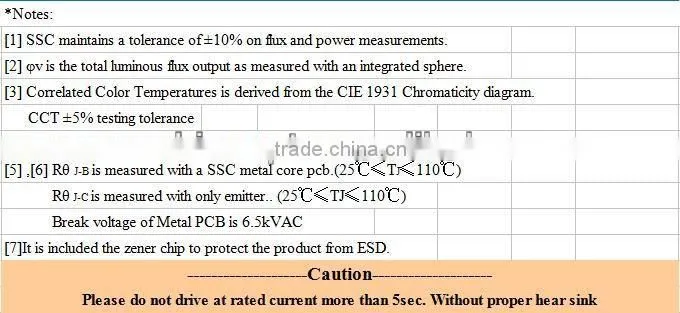

Notes
1. All dimensions are in millimeters.(tolerance:±0.2)
2. Scale:none

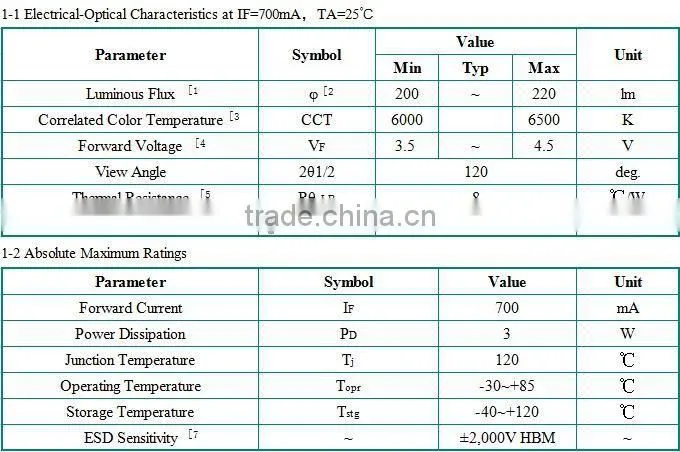

Characteristics for SP3W200 3W high power led
Packing for 1/3W high power led with Star pcb :
Production line & Equipment for 1/3W High Power LED Bridgelux chips with Star pcb:
Company Certificate & Team Training :
Service terms :
| Trade terms | FOB ,CIF ,CFR ,EXW |
| Payment terms | T/T ,Western Union ,Paypal ,Moneygram IN ADVANCE |
| Sample time | 1-3 DAYS |
| Lead time | 3-5 DAYS |
| Shipment | BY DHL/TNT/FEDEX/UPS |
| Supply capability | 10000pcs/day |
| Sample availability | (Yes / No)YES |
| Warranty Service | 2 years |
