Fujikura non-metallic 96 core optic fiber cables ADSS

FOB Price

USD $1 - $5 / Kilometer

1 Kilometer(Min.Order)

Supply Ability 600000 Kilometer / Kilometers per Month
Port shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

ADSS

Product Description

Fujikura non-metallic 96 core optic fiber cables ADSS

Non-metallic optic fiber cables ADSS

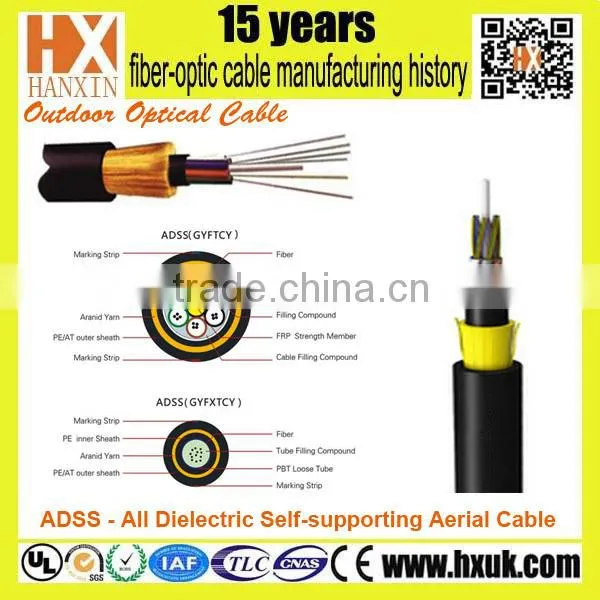

1. Description

With Aramid yarn, double sheath(AT Sheath or PE sheath)
ADSS Outdoor Aerial Optical Fiber Cable with Maximum Fiber Number of 288 Cores
Strength Member: FRP
Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4

2. Characteristics

1.Low dispersion and attenuation

2.Good mechanical and temperature perfermance

3.High strength loose tube that is hydrolysis resistance

4.Special tube filling compound ensure a critical protection of fiber

5.With small cable diameter, light cable weight, self-supporting

6.Crush resistance and flexibility

7.The following measures are taken to ensure the cable watertight

8.Single Fiber Reinforced Plastic as the central strength member,Loose tube filling

compound,100% cable core filling,Aramid yarn

3. Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
(+20°C)	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km

4. Technical Parameters

Fiber Count	Tubes	Fillers	Cable Diameter	Cable Weight	Tensile Strength Long Short Term	Crush Resistance Long Short Term	Bending Radius Static /Dynamic
14~24	2	3	12.5	255	1000/3000	1000/3000	10D/20D
26~36	3	2	12.5	255	1000/3000	1000/3000	10D/20D
38~48	4	1	12.5	255	1000/3000	1000/3000	10D/20D
50~60	5	0	12.8	255	1000/3000	1000/3000	10D/20D
62~72	6	0	13	255	1000/3000	1000/3000	10D/20D
74~84	7	0	13.2	255	1000/3000	1000/3000	10D/20D
86~96	8	0	13.4	300	1000/3000	1000/3000	10D/20D
98~108	9	0	13.6	300	1000/3000	1000/3000	10D/20D
110~120	10	0	13.8	300	1000/3000	1000/3000	10D/20D
122~132	11	0	14.0	300	1000/3000	1000/3000	10D/20D
134~144	12	0	14.2	300	1000/3000	1000/3000	10D/20D
...	...	...	...	...	...	...	...
276~288	12	0	18	300	1000/3000	1000/3000	10D/20D

5.Packaging and Shipping

6. Services

Sample: Can provide by our factory

Price list: can provide by our salesperson

After-sales: one by one

contact:Yuki

Skype: Yukisales

Mobile: +0086-18823353680

7. Introduction

Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce

optical fiber products:

1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)

2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,

waterproof cable etc.)

3.FTTH(bow-type access cable,self-supporting bow-type cable)

4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.

5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter
