Customized LED 1W 3W with Star PCB for spot light
Model:SP3W
PCB Size: diameter of 20mm
LED angle :120degree
Voltage:3.0-3.6v for 1w/3.5-4.5v for 3w
Current:350ma for 1w /750ma for 3w
Color temperature: 2900-3200k , 4000-4500k,4500-5000k,5000-5500k,5500-6000k,6000-7000k
Chips: Epistar or Bridgelux chip
Luminous Flux :140-150lm for 1w, 240-260lm for 3w
We can customised according your requirement .
Advantage : LM-80 Energy Star Passed
BEST raw materials used in our LED production are as following :
Chip:USA Bridgelux chip, Taiwan Epistar chip
Silicon glue: USA Dowcorning (good glue has less lighting decreasing)
Powder: USA Intermatix (good powder has better performance in lumens)
Gold wire: Germany Herqeus 1.0mil Gold wire(for bearing bigger current, gold wire has less electricity resistance than silver and cooper)
Led base:red/ black cooper base (for better thermal conductive/ disspation)
Similar related led products in Green ,Blue ,Red ,warm white ,RGB :
Featuresof 1/3W high power led
*Super high Flux output and high Luminance
*Designed for high current operation
*Low thermal resistance
*SMT solder technology
*Lead Free product
*ROHS compliant
Applications for 1/3W high power led
*General Illumination
- Outdoor & Indoor architectural lighting
- Decorative lighting
- Torch lighting
- Portable lighting and Reading lighting
- Traffic signaling
Outline Dimensions of led - Dome Type of 1w/3w led :
Notes
1. All dimensions are in millimeters.(tolerance:±0.2)
2. Scale:none
Packing for 1/3W high power LED with star pcb:

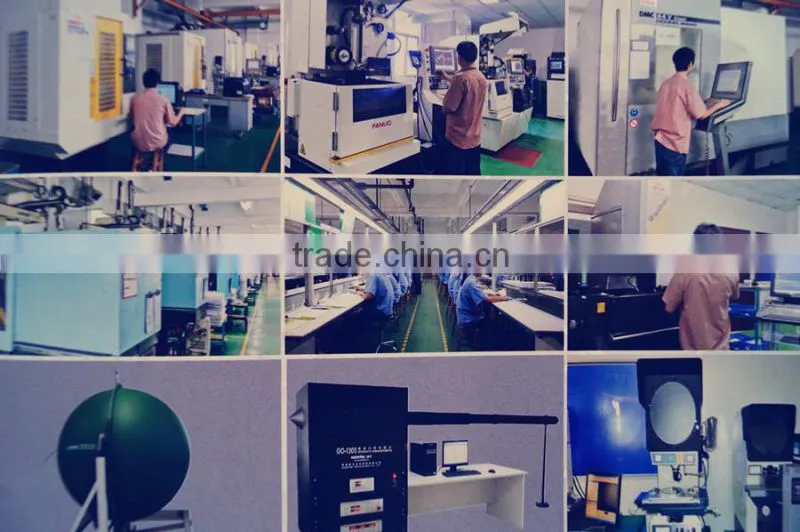

Production line:
Company Certificate & Team Training :
Trade terms: FOB ,CIF ,CFR ,EXW
Payment terms: T/T IN ADVANCE ,Western Union ,Paypal ,Moneygram
Sample time: 1-3 DAYS
Lead time: 3-5 DAYS
Shipment: BY DHL/TNT/FEDEX/UPS
Supply capability: 10000pcs/day
Sample availability: (Yes / No)YES
Warranty Service : 2 years
