12 Core Loose Tube Optical Cable for Audio/ Cctv Product

12 Core Loose Tube Optical Cable for Audio/ Cctv Product thumbnail-1
12 Core Loose Tube Optical Cable for Audio/ Cctv Product photo-1
US$ 0.1 - 5 MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HX
Model Number:
GYFTY
Contact Supplier Request Quote Chat Now
Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HX
Model Number GYFTY

  12 core loose tube optical cable for audio/ cctv product

12 core loose tube optical cable for audio/ cctv product

1. Description

    1. Duct optical fiber cable,stranded structure.

    2. GYFTY Outdoor Aerial Optical Fiber Cable with Maximum Fiber Number of 288 Cores

    3.Strength Member: FRP

    4.Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4


2. Characteristics
    1.Low dispersion and attenuation
    2.Good mechanical and temperature perfermance
    3.High strength loose tube that is hydrolysis resistance
    4.Special tube filling compound ensure a critical protection of fiber
    5.With small cable diameter, light cable weight
    6.Crush resistance and flexibility
    7. The following measures are taken to ensure the cable watertight
    8. Loose tube filling compound
    9. 100% cable core filling

3. Optical Characteristics

  G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm     ≤3.0 dB/km ≤3.0 dB/km
(+20°C) @1300nm     ≤1.0 dB/km ≤1.0 dB/km
  @1310nm ≤0.36 dB/km ≤0.40 dB/km
  @1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
 Fiber color code

12 core loose tube optical cable for audio/ cctv product



 Note: A:The color of fiber in loose tube is arranged from NO.1 color successively.

          B:Other color indentifications available on request

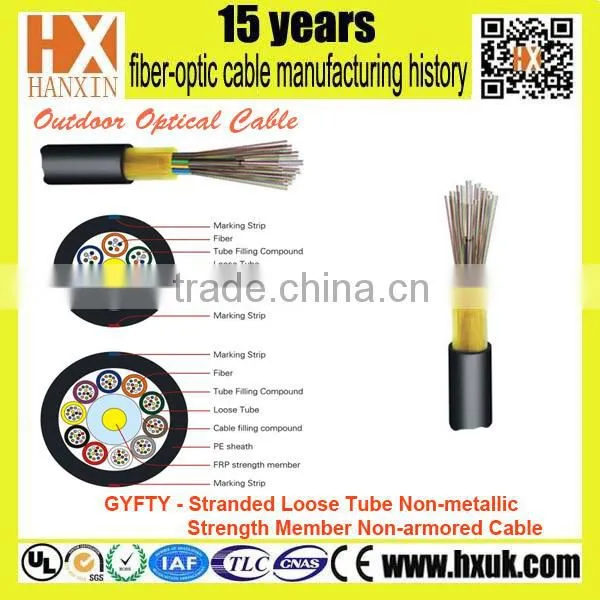

4.Cable structure

12 core loose tube optical cable has the some structure as below:


 12 core loose tube optical cable for audio/ cctv product

5. Technical Parameters
Cable Type Fiber Count Tubes Fillers  Cable Diameter Cable Weight   Tensile Strength Crush Resistance  Bending Radius
 Long/Short Term           Long/Short Term  Static /Dynamic
mm kg/km N N/100mm mm
GYFTY-2~12 2~12 1 4 10 255 1000/3000 1000/3000 10D/20D
GYFTY-14 ~24 14~24 2 3 10 255 1000/3000 1000/3000 10D/20D
GYFTY-26 ~36 26~36 3 2 10 255 1000/3000 1000/3000 10D/20D
GYFTY-38 ~48 38~48 4 1 10 255 1000/3000 1000/3000 10D/20D
GYFTY -50~60 50~60 5 0 10.5 255 1000/3000 1000/3000 10D/20D
GYFTY-62~72 62~72 6 0 11 255 1000/3000 1000/3000 10D/20D
GYFTY-74~84 74~84  7  0 11.5  255 1000/3000 1000/3000 10D/20D
GYFTY-86~96  86~96  8  0 12  300 1000/3000   1000/3000 10D/20D
GYFTY-98~108 98~108  9  0 12.5  300 1000/3000   1000/3000 10D/20D
GYFTY-110~120 110~120  10  0 12.8  300 1000/3000 1000/3000 10D/20D
GYFTY-122~132 122~132  11  0 13  300 1000/3000 1000/3000 10D/20D
GYFTY-134~144 134~144  12  0 13.2  300 1000/3000 1000/3000 10D/20D
... ... ... ... ... ... ... ... ...
GYFTY-276~288   276~288  12  0 15  300 1000/3000 1000/3000 10D/20D

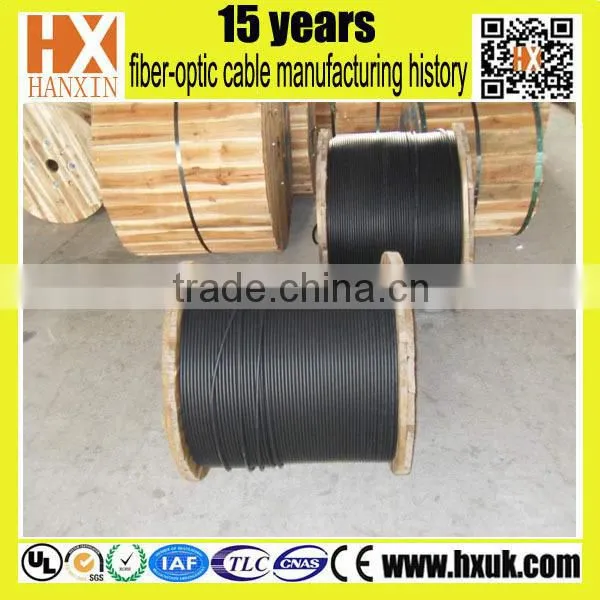

6. Packing& Shipping

  1.packing in Wooden drums, Polywooden drums or other drums customized

  2.shipping by sea or air

12 core loose tube optical cable for audio/ cctv product

7. Services

Sample: Can provide by our factory

prist list: can provide by our salesperson

after-sales: one by one

contact: Yuki

Skype: Yukisales1

Mobile: +0086-18823353680





8. Certificate
