Specifications
10/100M SC fiber optic media converter 4 port fiber media converter:1.factory and acept OEM
2.delivery within 3days

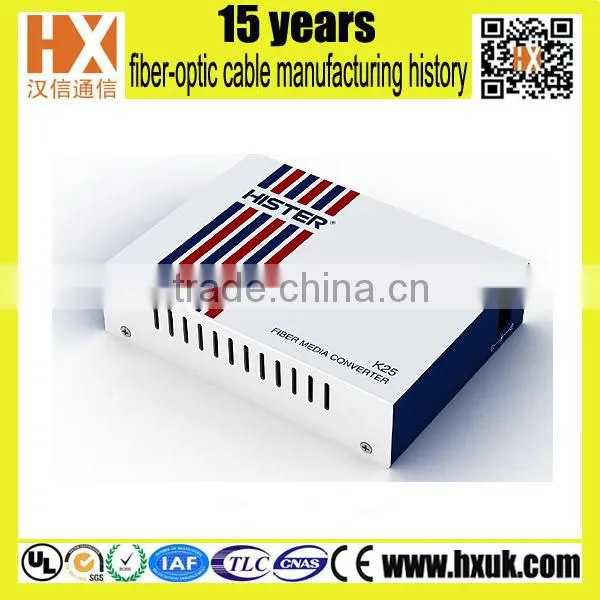

10/100M SC fiber optic media converter 4 port fiber media converter
The Gigabit Ethernet Media Converter complies with IEEE802.3 Standards. The Converter is designed to convert data signal between 10/100/1000Base-TX and 1000Base-SX/LX fast Ethernet. The media converter is connected between Fiber cable and twisted cable segments with network operating smoothly.
Model Description
Type |
Wavelength |
Multimode |
850nm/1310nm |
Single Mode |
1310nm |
BIDI |
Tx:1310nm/Rx:1550nm |
BIDI |
Tx:1550nm/Rx:1310nm |
LED Description
LED |
Color |
Function |
1000M |
Green |
Lit for fiber 1000Mbps operation |
100M |
Green |
Lit for fiber 100Mbps operation |
FX/ACT |
Green |
Lit when fiber connection is good Blinks when fiber data is present |
TP/ACT |
Green |
Lit when TP connection is good Blinks when TP data is present |
FDX |
Green |
Lit when full-duplex mode is active |
PWR |
Green |
Lit when +5V power is coming up |
Installing the Converter
Note: The Media Converter is hot-swappable.
Wear a grounding device for electrostatic discharge.
For as a standalone unit:
l Verify the AC-DC adapter conforms to your country AC power requirement and insert the power plug.
For as a slide-in unit:
l Verify the media converter is the right model and conforms to the chassis slot. The Media Converter and Rack are built to match in dimensions, DC jack, DC receptacle and power safety.
l Locate +5VDC power jack on converter back, carefully slide in and plug to 19” rack +5VDC power receptacle
Fiber Port |
Attach the fiber cable. The TX,RX fiber cable must be paired at both ends |
Default: AUTO. when you intend to connect a pair of Gigabit Media converters via fiber optic cable at both ends of a fiber connection | |
TP Port |
Attach TP Cat.5 cable to TP port |
The 10/100/1000 TP port is transmit/receive wires auto-link (e.g. Either MDI-X or MDI-II).It will auto-cross-connect transmit/receive wires to a switch or to a workstation |
Connecting to Gigabit it Device
Converter TP Port |
10/100/1000FDX with Nway |
Converter Fiber Port |
AUTO(Default):1000FDX with Nway |
Fiber Cable Limitations:
Items |
Wavelength(nm) |
Fiber cable(um) |
Max distance |
1 |
850/1310 |
50/125 62.5/125 Multi-mode |
550M |
2 |
1310 |
9/125 Single-mode |
10KM |
3 |
TX:1310 RX:1550 |
8.3/125 8.7/125 9/125 10/125 Single-mode |
10KM |
4 |
20KM |
||
5 |
TX:1550 RX:1310 |
10KM |
|
6 |
20KM |
TP-Fiber Technical Specifications
Standards: IEEE802.3z/AB 10/100/1000Base-T 1000Base-SX/LX
Fiber Cable:
SX: 50/125,62.5/125,or 100/140mm multi-mode
LX: 8.3/125,8.7/125,9/125,or 10/125mm single mode
LED Indicators: PWR, FDX, TP/ACT, FX/ACT, 100M, 1000M
Data Transfer Rate: 1000Mbps/full-duplex
Power Requirement:2A@+5VDC
