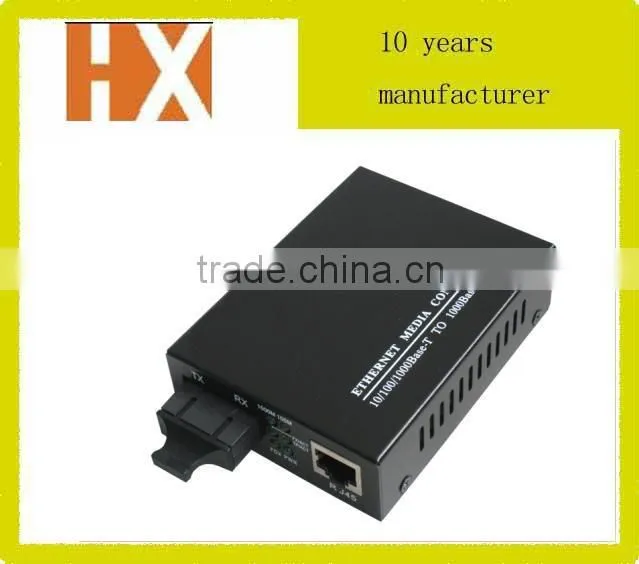

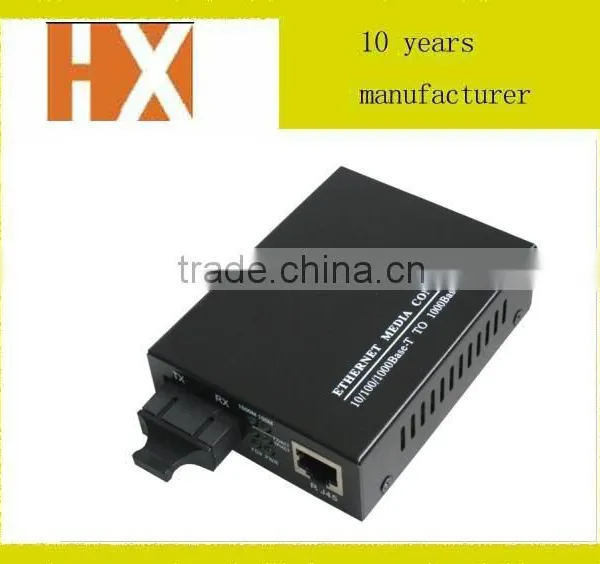

Multi-mode 850nm / 1310nm 10 / 100M Fiber Optic Media Converter 1-Fx to 1 RJ45Fiber Optic Cable Convert
Certificate: ISO, CE
1. Description
1. Provide 1* RJ45 electronic interface, support local switching
2. Comply with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX and 100Base-FX
3. Support full duplex IEEE802.3X flow control, half duplex back pressure flow control
4. Interface Speed Rate: 10/100Base-Tx, 10M and 100M
5. Support Broadcast Storm Suppression
6. Support RJ45 interface direct connection/cross line auto-adaptation
| Technical Parameter: | |
| Access Method: | 10/100Mbps |
| Standard: | IEEE802.3 , IEEE802.3u, IEEE802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1d |
| Wavelength: | 850nm/1310nm/1550nm |
| Dual Fiber MM : 2Km | |
| Distance: | Dual Fiber SM : 10/20/30/50/80Km |
| Single Fiber SM : 20/40/60Km | |
| CAT5 : 100m | |
| Conversion Method: | Media Conversion, Store-and-Forward/straight through |
| MAC Address Table: | 1 K |
| Buffer Size: | 1Mbit |
| Flow Control: | Duplex : flow control ; Half duplex : back pressure |
| Time Delay: | Store-and-Forward : 9.6us , Straight-through : 0.9us |
| BER: | <1/1000000000 |
| LED Indicator Lamps: | TP 100 , FX 100 , FX LINK/ACT, TP LINK/ACT, , FDX, POWER |
| Power Supply: | DC5V 1A (external power) , AC220 0.5A /DC-48( internal power ) |
| Power Dissipation: | <2.5W |
| Operating Temperature: | 0 ~ 50 °C |
| Humidity: | 5%~90% |
| Storage Temperature: | -40~ 70 °C |
| Dimension: | 25mm (H) 70mm (W) 93mm (D) |
3. Order info.
| Model No. | Description |
| HX-100MMS2 | 10/ 100M Multi-mode 1310nm 2km |
| HX--100SMS20 | 10/ 100M Single-mode 1310nm 20km |
| HX-100SMS40 | 10/ 100M Single-mode 1310nm 40KM |
| HX-100SMWDM1310S20 | 10/ 100M Single-mode WDM 1310/1550nm 20km |
| HX-100SMWDM1550S20 | 10/ 100M Single-mode WDM 1550/1310nm 20km |
| HX-100SMWDM1310S40 | 10/ 100M Single-mode WDM 1310/1550nm 40km |
| HX-100SMWDM1550S40 | 10/ 100M Single-mode WDM 1550/1310nm 40km |
4. Packing& Shipping
- packing in Wooden drums, Polywooden drums or other drums according to clients' need
- shipping by sea or air
5. Services
Sample: Can provide by our factory
prist list: can provide by our salesperson
after-sales: one by one
contact:
Skype: Candy.Foo2
Mobile: +0086-13519684370
6. Introduction
Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce optical fiber products:
1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)
2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)
3.FTTH(bow-type access cable,self-supporting bow-type cable)
4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.
5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter
