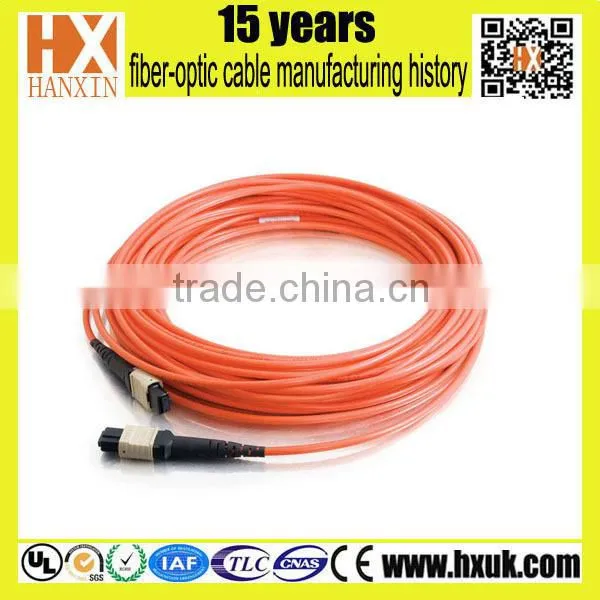

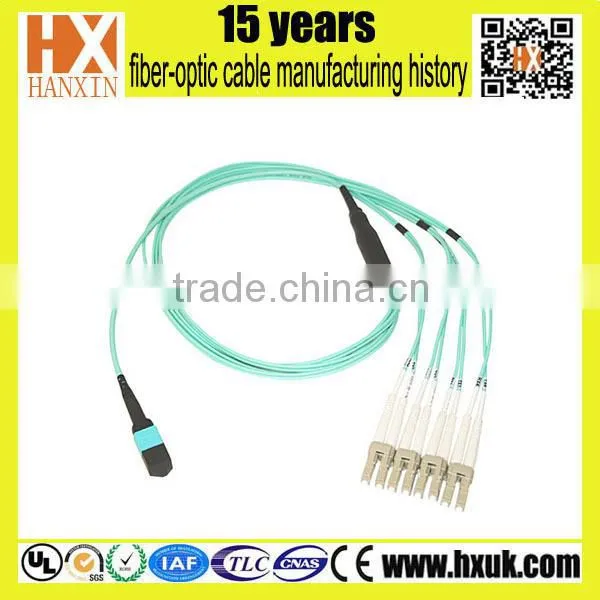

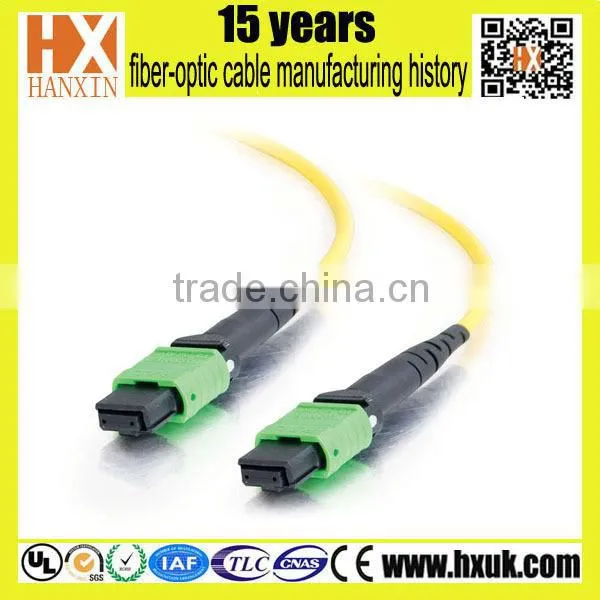

MPO/MTP optic fiber cable for telecommunication
Product Description:
Make MTP/MPO your choice for high density fiber networks; it's specifically designed for fast ethernet, fiber channel, ATM and gigabit ethernet applications. Save time and money with MTP/MPO's increased ease of installation - simply pull one cable rather than twelve. Each MTP/MPO fiber assembly consists of twelve 62.5/125µm single-mode fibers under one PVC (OFNR-rated) jacket.
With our MTP/MPO, it's possible to run a single cable that automatically terminates twelve fibers in one easy plug-in. Plus, the small form factor of an MTP/MPO connector provides a higher port density. With its push-pull release mechanism, the MTP/MPO connector is easy to engage and disengage. Plus, its latch design prevents the plug from snagging when jumper cables are being routed. Straight-through pinning; immune to electrical interference.
Specification:
• Connector Dimensions - 7.75 mm height x 61 mm depth
• Number of Fibers - 12
• Jacket material - PVC (OFNR riser-rated)
• Jacket OD - 3.0 mm
• Installation Tensile Load - 100 N (445 lbs)
• Long-Term Tensile Load - 50 N (222 lbs)
• Installation Minimum Bend Radius - 4.5 cm (1.8 in)
• Long-Term Minimum Bend Radius - 3.0 cm (1.2 in)
• Attenuation at 850 nm - 3.5 dB/km
• Attenuation at 1300 nm - 1.0 dB/km
• Maximum Connector Loss - 0.50 dB
• Typical Return Loss - -22 dB
• Operating Temperature - -20°C to +70°C
Specification:
Characteristic |
SM , MM |
|||
Connector type |
FC/SC/ST/LC/MU/MT-RJ/MPO/E2000 |
|||
Diameter(mm) |
0.9,2.0,3.0 |
|||
Polishing grade |
SM PC |
MM PC |
UPC |
APC |
Insertion loss |
≤0.3dB |
≤0.4dB |
≤0.2dB |
≤0.3dB |
Return loss |
≥40dB |
≥50dB |
≥65dB |
|
Interchangeability |
≤0.2dB |
|||
Repeatability |
≤0.2dB |
|||
Operation temperature (℃) |
-40~+85 |
|||
Products Overview:
Certificate:
