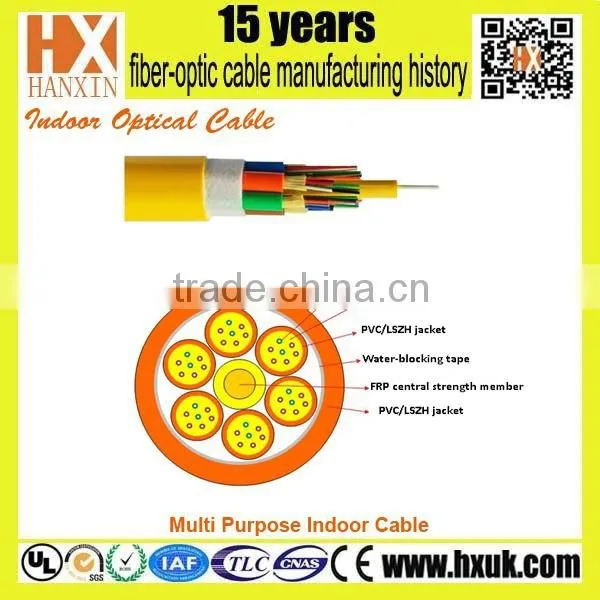

Multimode 4 core indoor distribution optical fiber cable
Indoor distribution Optic Cable details
1. Description
- Excellent stripping performance of tight buffer
- GJFJV Indoor Optical Fiber Cable From 2core to 24core
- Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4
- Low dispersion and attenuation
- for indoor with aramid yarn
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20°C) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Note: A:The color of fiber in loose tube is arranged from NO.1 color successively.
B:Other color indentifications available on request
| Distribution cable tupe | 2 | 4 | 6 | 8 | 10 | 12 | 24 |
| Distribution Cable Diameter(mm) | 4.00 | 4.80 | 5.10 | 5.60 | 5.8 0 | 6.20 | 8.30 |
| Distribution Cable Weight(kg/km) | 12.4 | 16.2 | 20 | 26 | 28 | 31.5 | 48 |
| TBF Diameter(μm) | 900±50 |
Mechanical Characteristics
Max lood(NO) |
Long term |
130 |
130 |
130 |
130 |
130 |
130 |
200 |
Short term |
440 |
440 |
440 |
440 |
440 |
440 |
440 |
|
Bending Radius(CM) |
Dynamic |
20×D (DCable Diameter |
||||||
Static |
10×D (DCable Diameter |
|||||||
5. Packing& Shipping

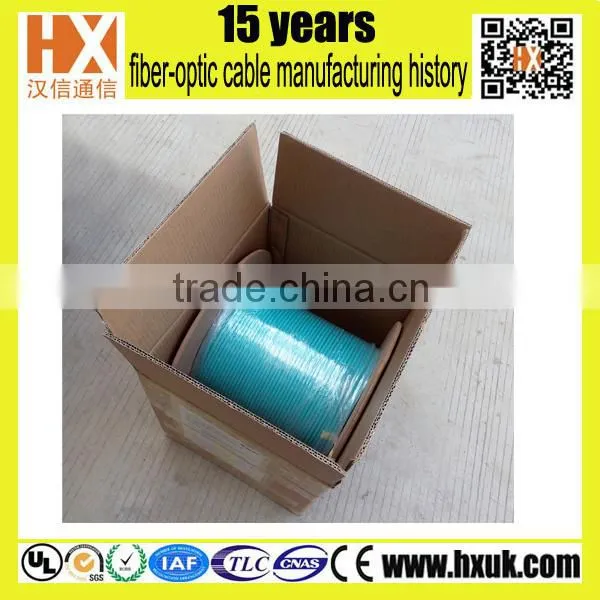

1.packing in Wooden drums, Polywooden drums or other drums according to clients' need
2.shipping by sea or air
6. Services
Sample: Can provide by our factory
prist list: can provide by our salesperson
after-sales: one by one
contact:
Skype:Yukisale1
Mobile: +0086-18823353680
7. Introduction
Shenzhen Hanxin Communication Optical Fiber Cable Co., Ltd is a factory who mainly produce optical fiber products:
1.Outdoor Fiber Optic Cable(GYXTW,GYFTY,GYTA,GYTS,ADSS,GYXTC8Y,GYTA53 etc.)
2.Indoor Fiber Optic Cable(Simplex/Duplex indoor cable,distribution box,break-out cable,waterproof cable etc.)
3.FTTH(bow-type access cable,self-supporting bow-type cable)
4.Fiber Patch Cord(SC,SC,LC,FC,MTRJ,MU etc.
5.Accessories:Fiber Patch Panel,Fiber Splice Closure,Fiber Media Converter,Fiber Adapter
8. Certificate
