Heavy duty rack.
Heavy duty rack also called beam type storage shelves, each section shelves can carry up to 1000-4000Kg, with overall concise and beautiful, the safety coefficient is high, the access speed, save a space, improve storage capacity etc. Heavy shelves are used for goods put on a tray, the use of forklift piled up in the beam layer or directly in the rack layer lattice, adding support beam and floor plate storage goods shelves use, in classification design different shelves and supporting the use of the forklift truck, more show products in logistics management and improve the operation efficiency of the effect produced.
Heavy duty rack structure design classification can generally be divided into: select type rack, guide rail type rack, press in type rack, into type rack, shuttle racking, cantilever racking, etc.
Heavy Duty Warehouse metal stack pallet rack shelf
1. Features of warehouse storage pallet rack system: |
1) Beam levers are adjustable in 75mm pitch interval. 2) Different sizes, various specifications and colors are available according to your different needs. 3) Maximizes space utility ratio while retaining optimum product accessibility. |
2. Material: |
High grade Q235B Cold Rolled Steel |
3. Finish for pallet rack surface: |
High-quality Powder Coating Finishing. |
4. Load Capacity & Dimension: |
Loading capacity: 500-1500 kgs /beam level. |
5. Main Parts Specs: |
1) Uprights 90*70*1.5mm 2) beams 80*50*1.5mm 3) Horizontal & diagonal bracings, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
6. certificates. |
CE certified, ISO9001, TUV |
7. Quick Delivery. |
Within 20 workdays (negotiable), according to quantity |

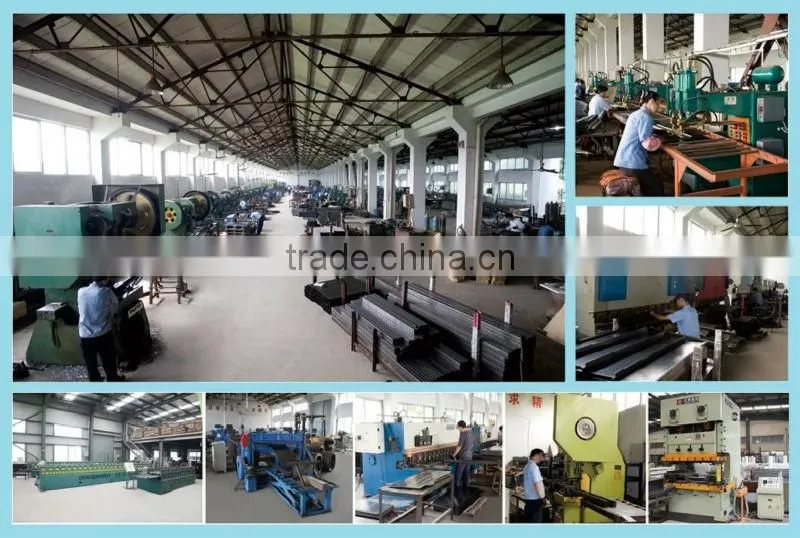

1. Question: Are you a trade company or manufacture factory?
Answer: We are a manufacture factory;
2. Question: Where is your factory?
Answer: Our factory is located in Changshu city which is face to face Jiangsu;
3. Question: What is your steel material?
Answer: The material is Steel Q235 which is similar as SS400;
4. What is your payment terms?
We accept T/T and L/C, other terms could be further discussed;
5. Do you have any request about the order quantity?
Any order quantity is accepted. But small order would take more shipping cost;
6. How could you guarantee the products quality?
We have professional engineer to check what size should be used to guarantee your load weight request.
Before shipping, our quality control also would carefully check whether the quality is approved.
7. How could I install the racks?
We would provide detail install drawing to teach you how to install the racks. If needed, we also could provide
free engineer to teach you installation. But related cost( Flight, living and eating) should be in your charge.
