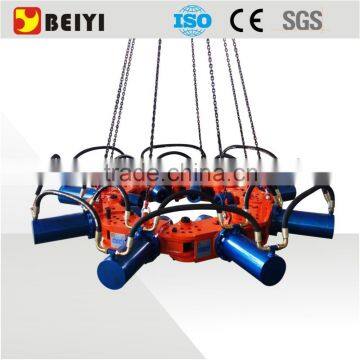

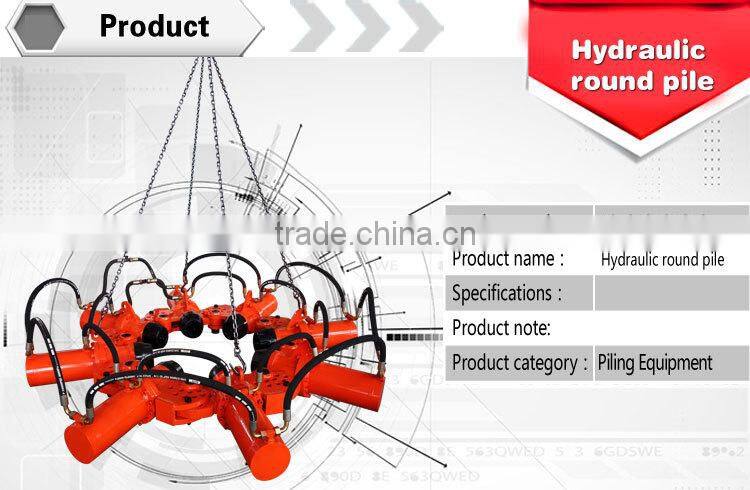

Hydraulic pile breaker for round concrete piles
We produce and sell Kinds of Excavator parts and attachments more than 15 years experience
With ISO9001 quality management system ;CE ; SGS Certificate .
Attend BICES Exhibition in Beijing on October 15,2013; CATON FAIR on April 15,2014; BAUMA Exhibition on NOV 24, 2014 ........
Pile Breaker Advantege
1.It's the most advanced pile breaker and can achieve high efficiency,low noise in pile broken.

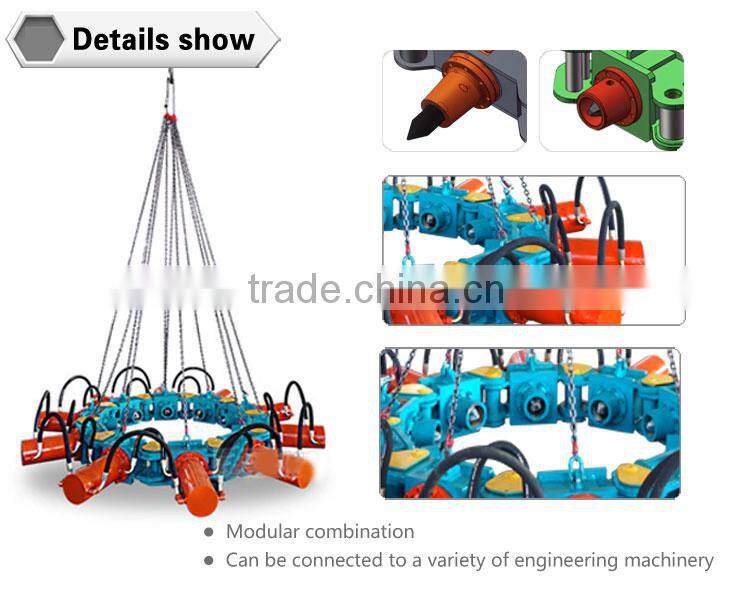

2.It has the advanced modularization and break diffirent diameter pile by diffirent number of modular combination
3.It has high cost performance ,low operating cost and its cost performance is nearly the same with the foreign products
4.Its operates easily and don't need any professinal skill ,besides ,it operates very safely
5.It can be connected to a variety of engineering machinery to make achieve products commonality and economical efficiency .it also can be hanged in the excavators ,cranes and telescopics arm,ect.
6.High life design can bring you' the best benefits
Pile Breaker Performance Parameter
| Max. Thrust | 300KN | Max. Cylinder Required | 20L/min | Machinery Tonnage |
≥20t | |||||
| Max. Cylinder Trip | 250mm | Quantity / 8h | 80/8h | Single Module Weight | 278KG | |||||
| Max. Cylinder Pressure | 30Mpa | Max. Hoist Capacity | ≤500mm | Single Module Size | 885*780*340 | |||||
| Module Number | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
| Combination total weight | KG | 2200 | 2475 | 2750 | 3025 | 3300 | 3575 | 3850 | 4125 | 4400 |
| Pile diameter range | mm | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2140 |

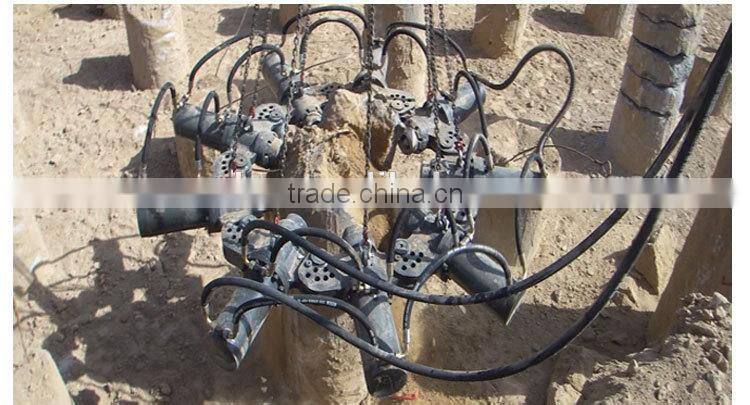

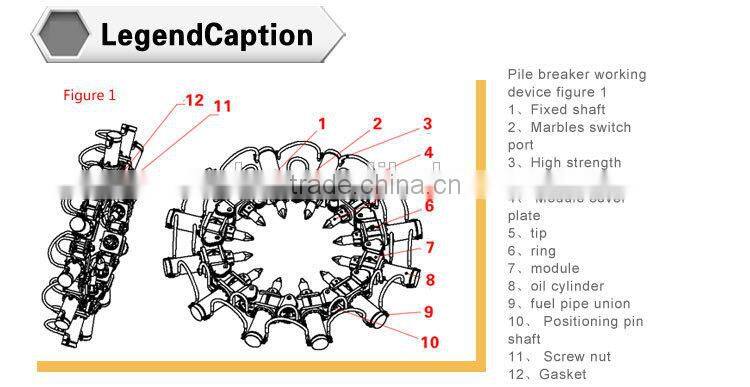

Pile Breaker Working Principle

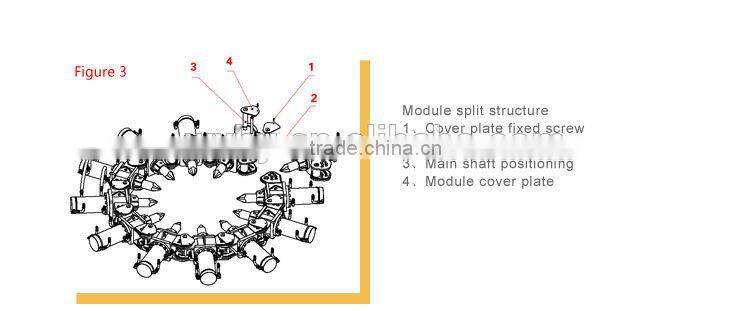

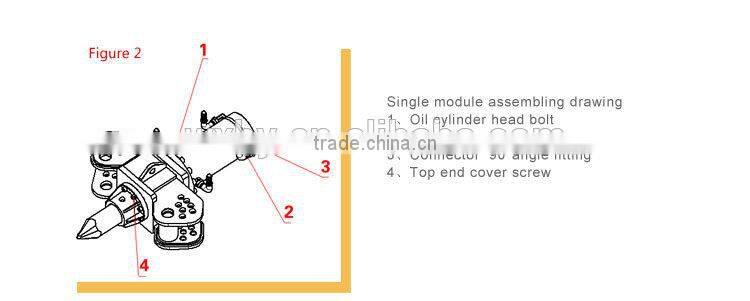

Hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile.It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering.Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins.It can break piles in certain ranges of diameter by different number of modules combination.

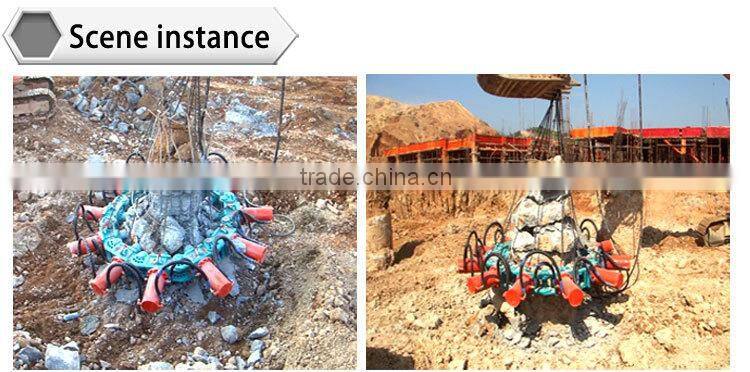

Pile Breaker Application Scope
Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc.It can be divided into round and square by the pile shape, widely used in high-speed railway bridges and civil building pile foundation engineering.Normally hydraulic round pile breaker can break pile diameter from 500-2200mm and hydraulic square pile breaker is suitable for square pile from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.
Contact Information
Contact person : Jennifer.Meng (Export manager)
Mob: +86 18762688124
Skype:jenniferky1
wechat : meng 7463
Office Address:Room2208 Zhihui Building, No.990 Jianghai West Road, Beitang District, Wuxi, Jiangsu, China
Factory Address : A park, ShuangMiao Industrial, HuiShan District, Wuxi, Jiangsu, China
