Hydraulic pile breaker, pile cutter, pile breaking machine

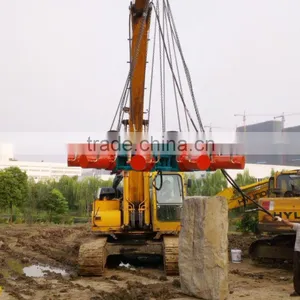

BEIYI MACHINERY Hydraulic pile breaker/pile cutter, pile breaking machine, can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from 600-2200mm and hydraulic square pile breaker is suitable for square piles from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.
Hydraulic pile breaker/pile cutter, pile breaking machin Advantege
* BEIYI MACHINERY Hydraulic pile breaker is the most advanced and can achieve high efficiency, low noise in pile broken.
* It has the advanced modularization and break different diameter pile by different number of modular combination.
* It has high cost performance, low operating cost and its cost performance is nearly the same with the foreign products.
* It operates easily and don’t need any professional skill, besides, it operates very safely.
* It can be connected to a variety of engineering machinery to make achieve of products’ commonality and economical efficiency. It also can be hanged in the excavators, cranes and telescopic arm, etc.
* High life design can bring you the best benefits.
Hydraulic pile breaker/pile cutter, pile breaking machin Specification
| Max. Thrust | 300KN | Max. Cylinder Required | 20L/min | Machinery Tonnage |
≥20t | |||||
| Max. Cylinder Trip | 250mm | Quantity / 8h | 80/8h | Single Module Weight | 328KG | |||||
| Max. Cylinder Pressure | 30Mpa | Max. Hoist Capacity | ≤500mm | Single Module Size | 885*780*340 | |||||
| Module Number | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | |
| Combination total weight | KG | 2200 | 2475 | 2750 | 3025 | 3300 | 3575 | 3850 | 4125 | 4400 |
| Pile diameter range | mm | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1460-1970 | 1620-2140 |
Hydraulic pile breaker/pile cutter, pile breaking machin working principle
BEIYI MACHINERY hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering. Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination.
We packed with standard wooden box, single module packed in individual small box and several box bundled into pallet.
1. Q:How to chose the modules?
A: Please kindly advise your pile diameter, your pile concrete grade, and your project situation, we will help you to decide the numbers of the modules.
2. Q: Is your pile breaker dangerous for work?
A: Our machine operate contact-free and there is no impact force on the piles, so our machine is not dangerous for work.
3. Q:Is your module changeable or fixed?
A:Our module round pile breaker is changeable, you can combine freely according to your different pile diameter, the modules can be assembled and disassembled easily and conveniently.
We also can custom made for your small round piles which is fixed with 5 modules.
4. Q:Do you offer after-sale service?
A: Yes, we will offer you machine operation instructions. 6 months of warranty time will offer to our customer dating from the receipt day. Besides, we will offer some spare parts for free and life long technical instruction.
5. Q:Is your machine working with noisy?
A: We got CE approved and our machine working with low noisy which can meet environmental protection.
6. Q:your service ?
Wuxi Beiyi Excavator Spare Parts Factory warmly welcome our customers' inquiry about all kinds of pilling foundation machines and construction products.
We can offer professional technical supports and good after sale service for your orders.
We have a stronger R&D team who can develop and produce the special machines according to your requests.
Contact Information
Contact person : Jennifer.Meng
Mob: +86 18762688124
Skype:jenniferky1
wechat : meng 7463
Office Address:Room2208 Zhihui Building, No.990 Jianghai West Road, Beitang District, Wuxi, Jiangsu, China
Factory Address : A park, ShuangMiao Industrial, HuiShan District, Wuxi, Jiangsu, China
