Advantages
--Easy operation
--Flexible control
--Silence operation
--Easy maintenance
--Precision design
--Reliable performance
--Quick speed
--Save time
Features Description
1.Hydraulic Motor driven turntable
The latest inner gear design, effectively avoid the dirt and collision, gear is changeable, stable and durable, very reliable!
2.Ventage
Ensure the gear box pressure balance,stable heat removal.

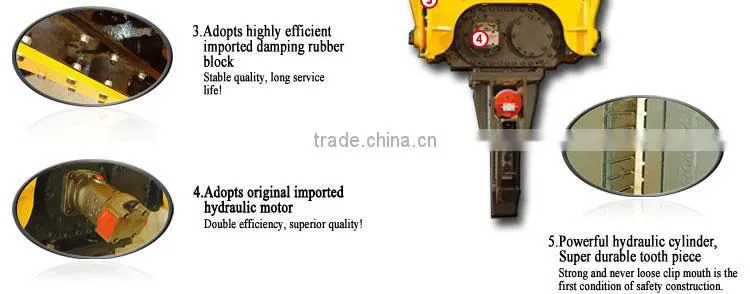

3.Adopts highly efficient imported damping rubber block.
Stable quality, long service life!
4.Adopts original imported hydraulic motor.
Double efficiency, superior quality!
5.Powerful hydraulic cylinder,Super durable tooth piece.
Strong and never loose clip mouth is the first condition of safety construction.

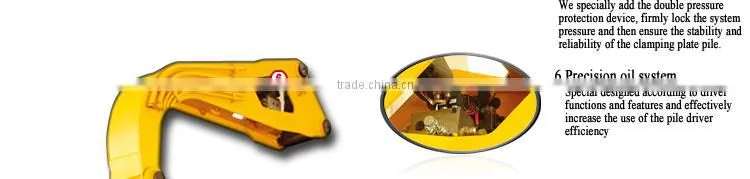

We specially add the double pressure protection device, firmly lock the system pressure and then ensure the stability and reliability of the clamping plate pile.
6.Precision oil system
Special designed according to driver functions and features and effectively increase the use of the pile driver efficiency.

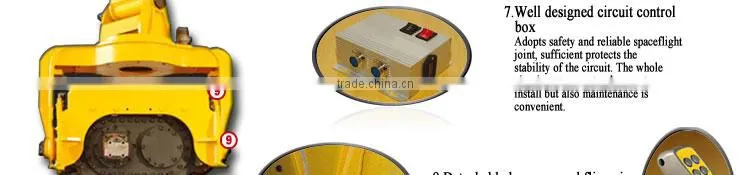

7.Well designed circuit control box
Adopts safety and reliable spaceflight joint, sufficient protects the stability of the circuit. The whole circuit system, not only easy to install but also maintenance is convenient.
8.Adopts original imported control handle
Multifunctional integration, beautiful and practical, easy reliable installation , high reliability.

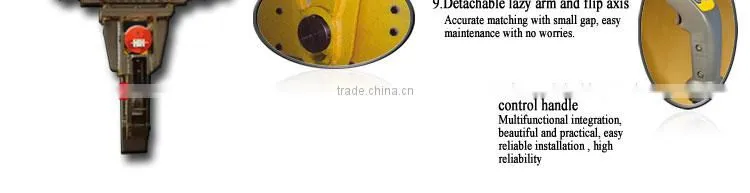

9.Detachable lazy arm and flip axis
Accurate matching with small gap, easy maintenance with no worries.
Working principle and engineering application scope
BEIYI Machinery. V series high frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam, building foundation etc. such short pile projects.
Operating principle
1. V series high frequency hydraulic vibratory pile driver internally installed two eccentric shaft. It adopts hydraulic motor to drive and produce high-speed revolution and vertical vibration force. Through the damping rubber block to maintain a certain amplitude to cope with various types of soil and pile driving.
2.Exciting force is proportional to the eccentric shaft size and the vibration times square. BEIYI eccentric shafts are all made after a detailed calculation
and test which can combine strong vibration force and material properties, not only can meet the needs of the work but also guarantee the mechanical reliability.
The construction principle
Vibrating pile hammer is using its high frequency vibration to vibrate pile body with high acceleration to pass the vertical vibration of mechanical produce to pile which leading to
changes in the soil structure around the pile, strength decrease. Soil around the piles become liquefaction to reduce frictional resistance between side of the pile and the soil.
Then using the excavator down force, vibrating pile hammer and pile body weight to sink pile into the soil. When extracting piles, in the condition of vibration to pull out the pile by using excavator lift force.
Excitation force needed by pile driving machinery are comprehensive determined by site soil, soil condition, moisture content and type of pile, construction.
The efficient of vibration pile method is higher than other methods. It is mainly applied to steel sheet pile, steel pipe pile and long slender concrete precast pile within 8 meters.
This pile driving method is the most suitable for working in sand and poorer effect in the clay which must select higher power model machines.
Operation example

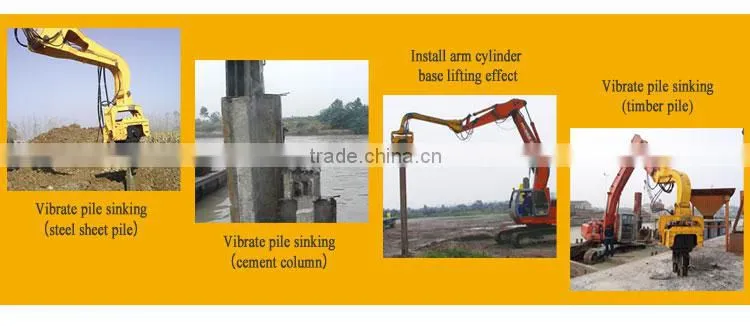

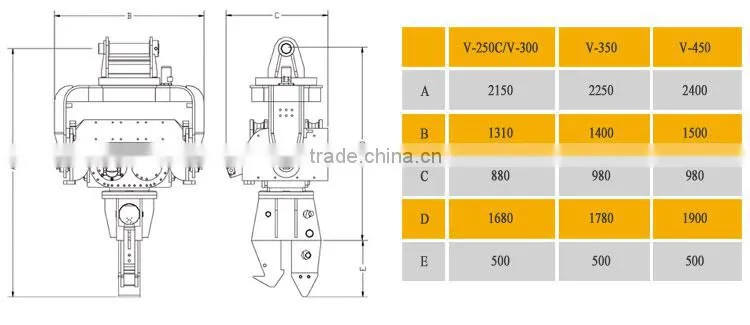

The performance specification table
| PROJECT. | Products Model And Technical Parameters | |||
| V-250C | V-300 | V-350 | V-450 | |
| Eccentric torque(Nm) | 40 | 50 | 65 | 85 |
| Rotate speed(Rpm) | 2800 | 2800 | 2800 | 2800 |
| Excitig force(T) | 36 | 45 | 58 | 75 |
| Hydraulic system operating pressure(Bar) | 280 | 280 | 300 | 300 |
| Hydraulic system flow demand(Lpm) | 155 | 168 | 210 | 255 |
| Main body weight(Kg) | 1450 | 1550 | 1650 | 1800 |
| Apply to excavator weight(T) | 20-24 | 24-32 | 30-40 | 40-45 |

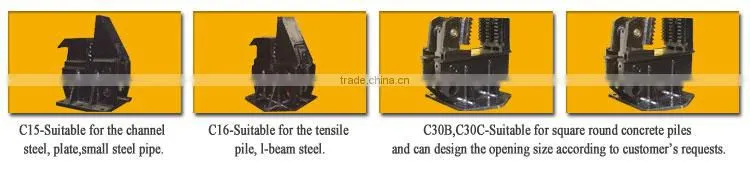

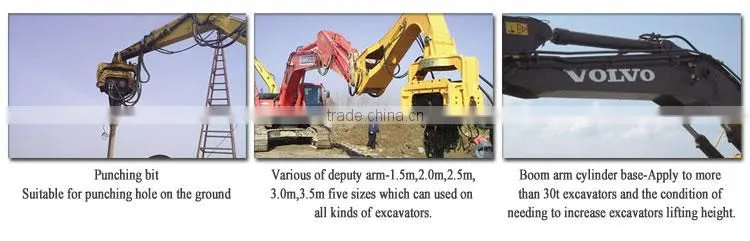

| Clip mouth weight(kg) | C12:300KG C11B:360KG C30:350KG | |||
| Assistance arm weight(kg) | A150:450KG A200:550KG A250:600KG A300:750KG A350:900KG | |||

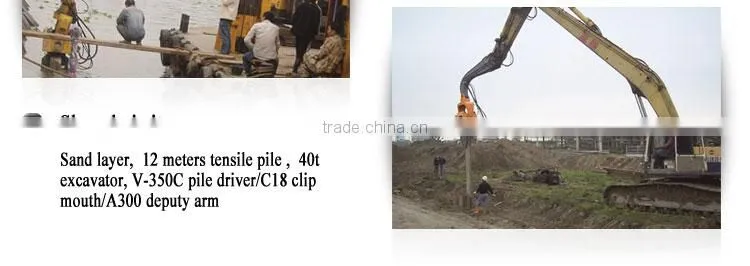

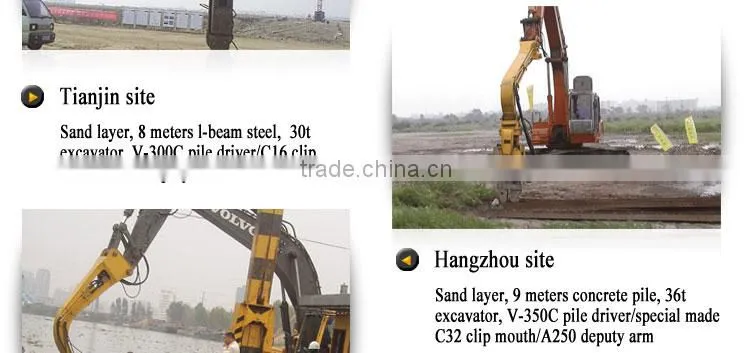

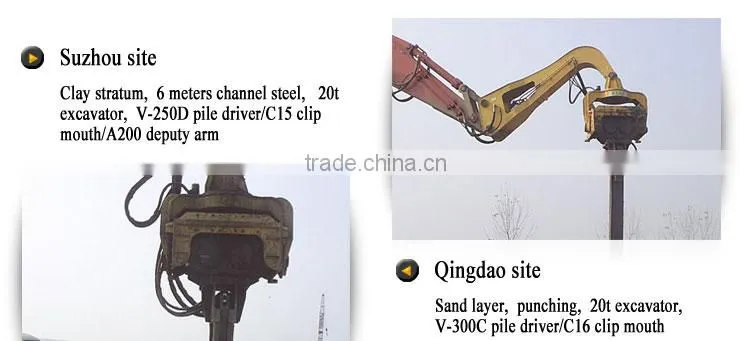

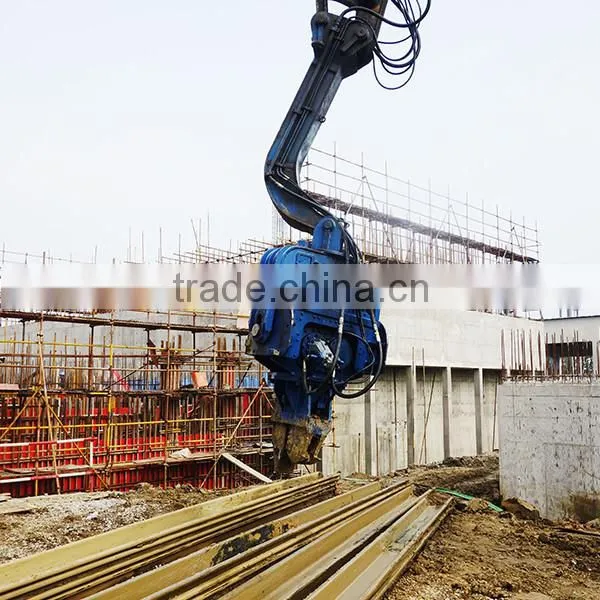

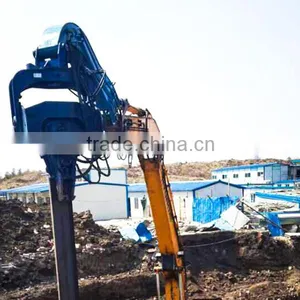

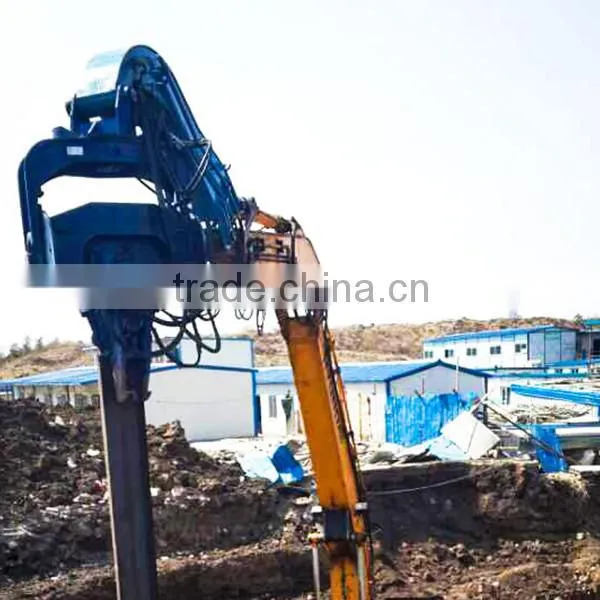

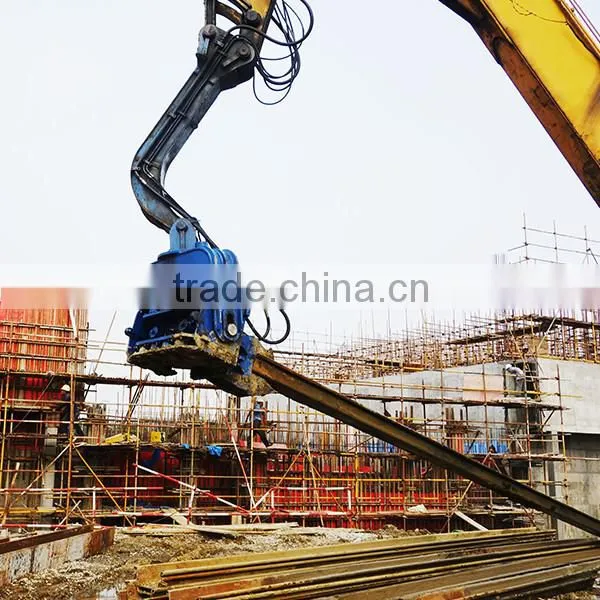

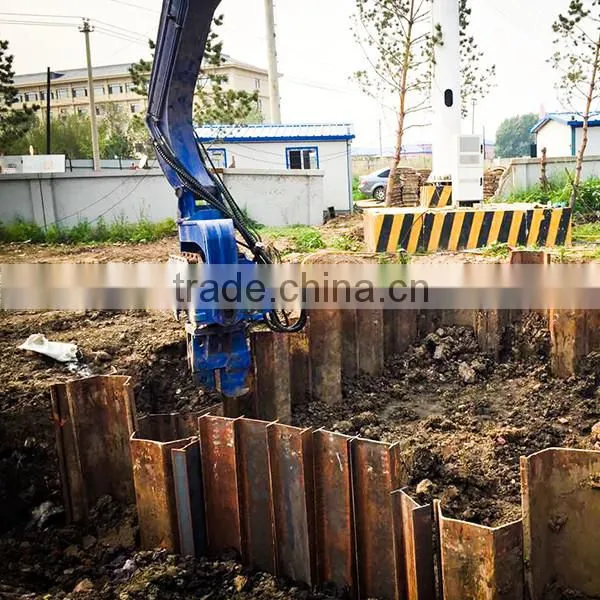

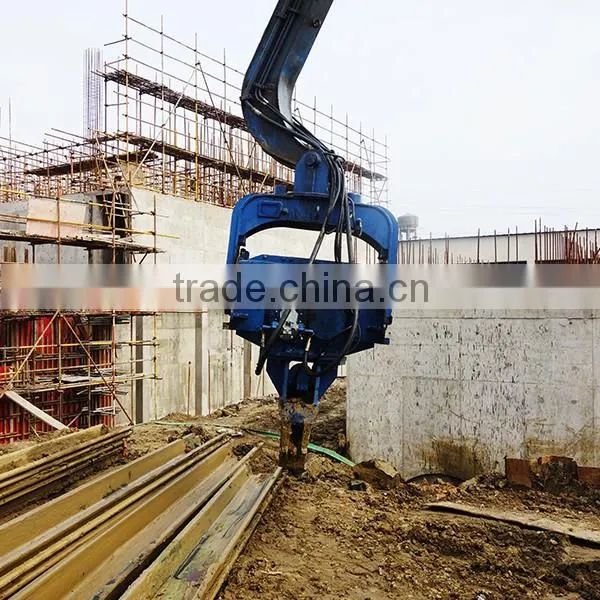

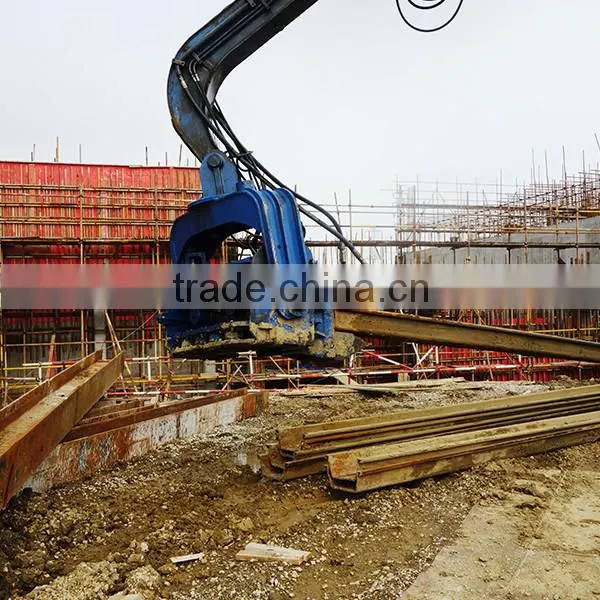

Project site example
