SRON PETROL TANK
WHY SRON PETROL TANK IS SUPER FOR YOU? |
1- One of the Earliest Integral Solution Provider of Silo Storage System and Chemical Storage Tanks
2- With the Most Reliable Project Design Technology Team
3- We Work All Efforts Out to Guarantee the All-round Safety of Your Project.
4- We Have the Biggest Cost Advantage and Supervision of Raw Materials Quality as We are Located at the Galvanized Steel Production Base.
5- With all over 3000 units silo projects and countless tanks under good operation till now
6- SRON can design and manufacturer the silos and tanks as per your requirement.
7- Have Strategical Cooperation with COFCO, YIHAI CHERRY China National Reserve etc. and Have Participated Several International Bank Projects.
| SRON Petrol Tank Specifications |
| Item | Parameters & Specifications | Note |
| Stored Materials | Diesel, Petrol, Ethanol Gasoline and other chemicals | Check with us if our tank suits your materials or not |
| Designed Pressure | Normal Pressure | |
| Designed Temperature | -40-200 degrees | |
| If for underground type tank | The Underground Depth must be at least 0.5m | |
| Capacity | As Per the requirement of the buyer | |
| Filling Ratio | 0.9 | |
| Corrossion Allowance | 1mm | |
| Materials | Q235-B 20R | |
| Tank Body | Double Wall | |
| Welding | by ARC Welding | |
| Welding Test | JB/T4730.2, RT test length 10% | |
| Derusting | by sandblast grade Sa2.5 | |
| Paint Quality | Deluxe anti-corrossion coal tar epoxy paint | |
| Painting Structure | Coat Paint-Surface Paint-Glass Fabric-Surface Paint-Glass Fabric. The total of two times surface painting should be at least 0.6mm thickness | |
| Test Pressure | 0.1MPa | |
| Test Pass By | by 3000V electrical spark | |
| Standard Configurations | inlet oil mouth, outlet oil mouth, areation mouth, gauge hole, level hole, man hole | We can design to meet your special requirement |
| Safety tips for diesel tanks |
1- low down temperature and reduce temperature difference 2- no contact with metals of copper etc 3- sealing storage, reduce to contact air 4- no allowing mixture with water and other impurities 5- routinely check the tank bottom details, the oil quality and clean the tank 6- with thorough and good lightning-protection, anti-static and other fire protection methods |
|
| |
TALK TO SRON, LET SRON WORK OUT YOUR INTEGRAL PLAN | |
Petrol Tank Advantages |
1- With Max Assured Safety Consideration Leant from Our Over 500 Units Diesel Tank Experience.
2- With the Most Reliable Technology Team to Design and Control the Quality
3- We are autorized with Pressure Vessel Manufacturing License
4- We Have the Biggest Cost Advantage and Supervision of Raw Materials Quality as We are Located at the Galvanized Steel Production Base.

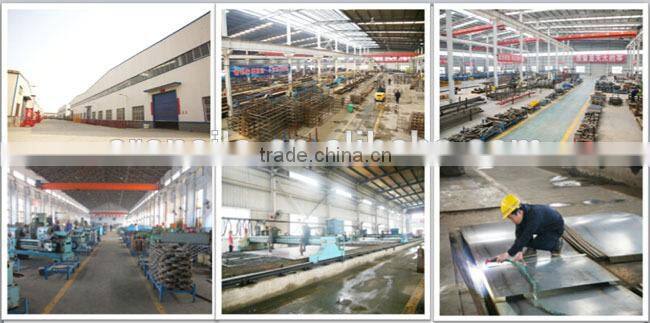

| Our Superb Equipment |

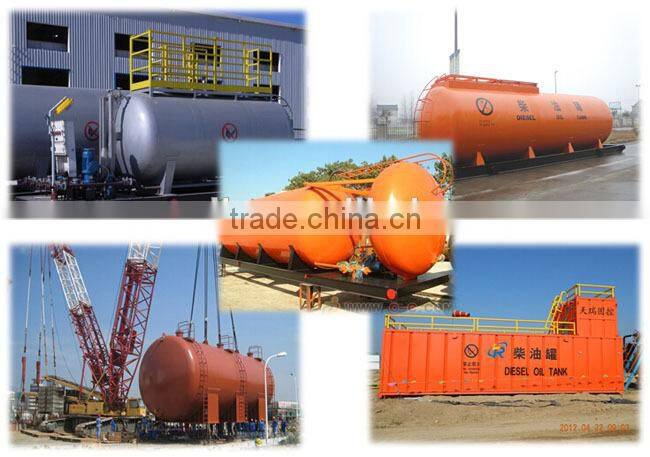

Part Cases Display of Our PetrolTank |

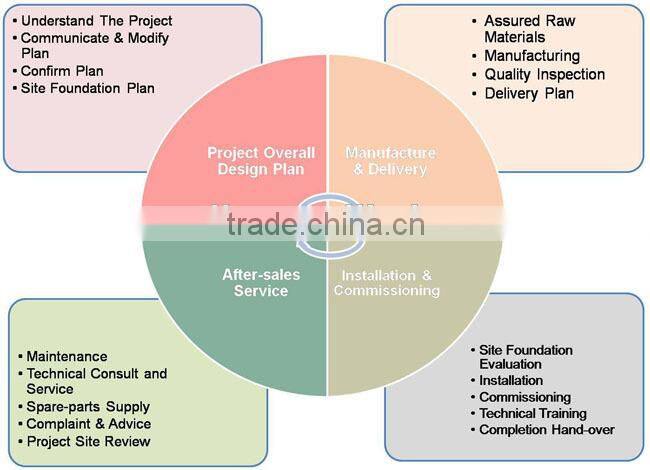

Our 360 Degree Service for the Petrol Tank Projects |
SRON HOLD UP YOUR INVESTMENT
