Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BEIYI | Model Number: | BYL MINI |
Product Description

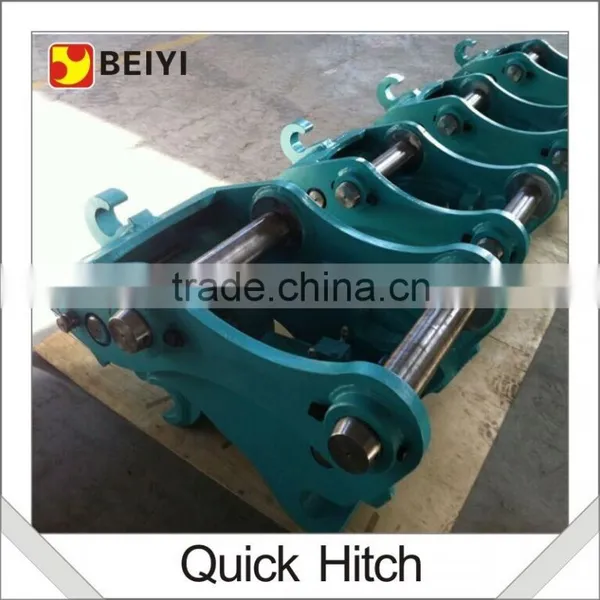

Excavator hydraulic quick coupler for kinds of excavator
Excavator coupling, Quick Hitch, quick coupling
Advantage:
FULL AUTOMATIC DOUBLE SAFETY SYSTEM
*Electronic drive system is installed in the cab,the expensive hydraulic pressure is replaced by the electric power,which saves the cost from the production. Operators in the cab can easily turn on and turn off the quick hitch through the switch.
*Check valve Protection System:each cylinder installed safety check valve ensures That quick hitch coupler can work when the oil circuit and the circuit is cut off.
*Safety Pin Protection System:security protection is customized for each excavator according to the different parameters.In the case of the failure of cylinder ,quick hitch coupler can work regularly.
Performance Parameter:
Model | Unit | BULKMINI | BYLK45 | BYLK50 BYLK55 | BYLK60 BYLK65 | BYLK70 BYLK80 | BYLK90 | BYLK100 BYLK110 |
Overall Length | Mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
Overall Height | Mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Overall Width | Mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Pin to Pin Center Distance | Mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Forearm Open Width | Mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Retractable Distance of Oil Cylinder | Mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
Top to Bottom Pin Distance | Mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter | Mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
Weight | Kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 |
Working Pressure | Kg/cm2 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
Required Oil Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Suitable Excavator | Ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
Our company is the professional manufacturer of hydraulic pile breaker, earth drill ,pulverizer,quick hitch, hydraulic compactor, ripper, grab bucker, hydraulic log/rock grapple for excavator, etc. We are looking forward to have a good cooperation with you.
1,Are you a factory ?
Yes, we are a factory,more then 10 years factory
2,Where are your factory ?
Address: A park, ShuangMiao Industrial, HuiShan District, Wuxi, Jiangsu, China ,You can by train form shanghai to Wuxi station ,then we will drive the car to pick you up!
3, What is your delivery time?
have stock, about 10 days.without stock,about 30 days.pls contact us before.
4, What's your payment ?
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
If you are interested in our products,please feel free to contact me!
----------------------------------
