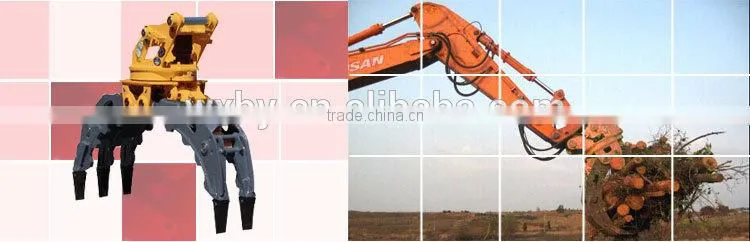

Help Center20T Excavator Hydraulic Swing Grab, Excavator Hydraulic Stone Grab
Related Products
-
18,000 to 40,000 Pounds Excavator Manual Quick CouplerUS$ 600 - 1,200MOQ: 1 Piece -
Hydraulic Clamshell Excavator Grab Bucket for Discharge Rock ScrapUS$ 1,200 - 65,000MOQ: 1 Set
-
Excavator Manual Quick Coupler Excavator AttachmentUS$ 600 - 1,200MOQ: 1 Piece
-
ISO-Certified Cactus GrabUS$ 1,200 - 65,000MOQ: 1 Set
-
Excavator Hydraulic Quick Coupler Quick HitchUS$ 600 - 1,200MOQ: 1 Piece

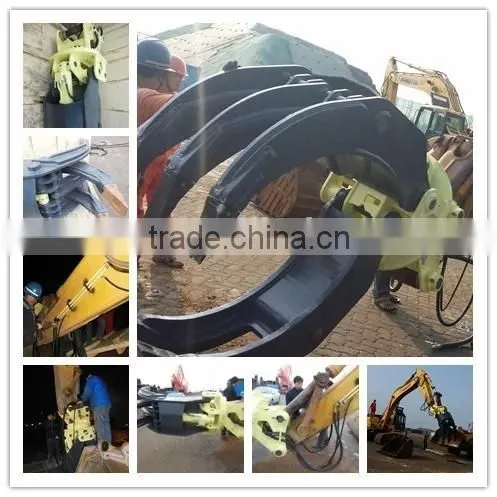

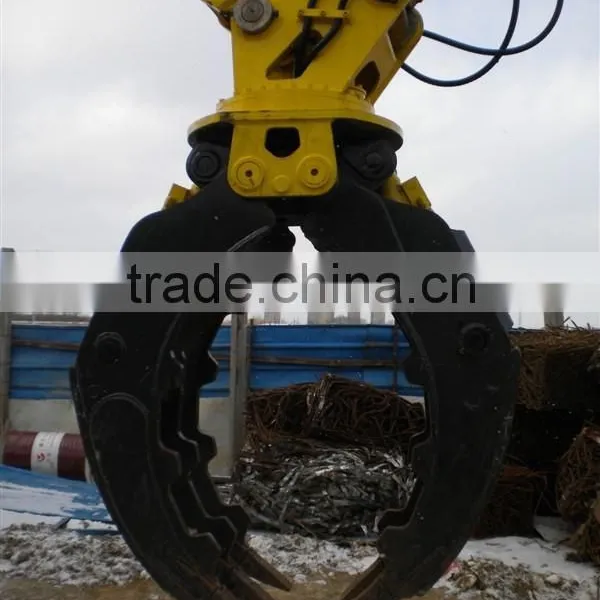

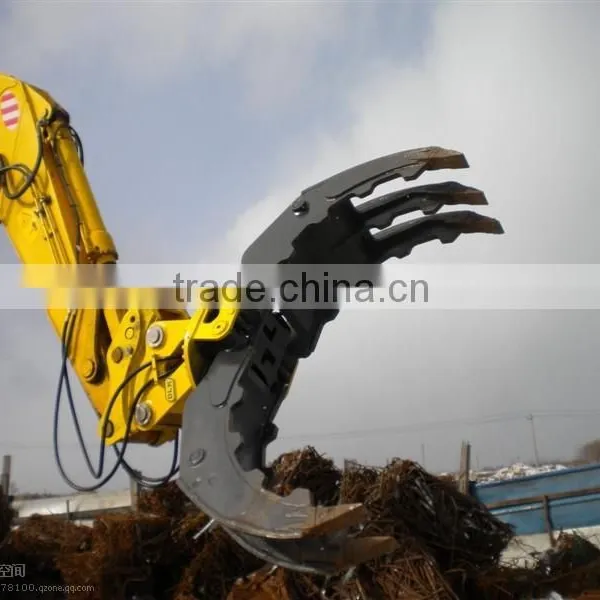

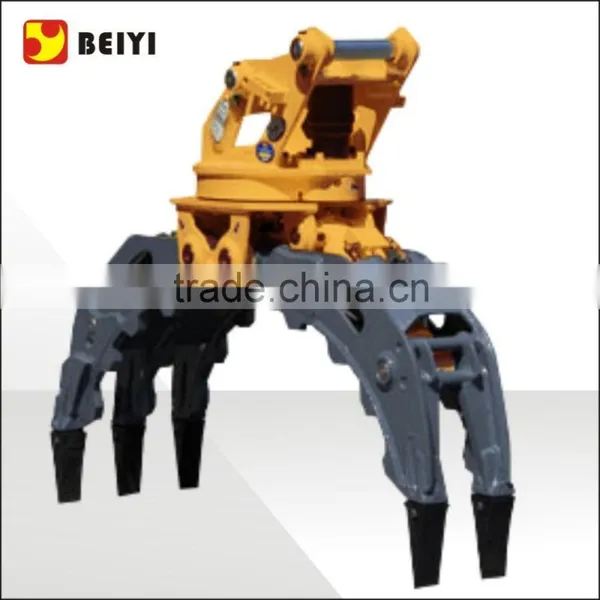

Hydraulic rotating grapple for 3T-50T excavator grapple
As actual manufacturer, we are able to offer a wide variety of grapples and spare parts to our customers with own advanced equipment and technology, and we can play a manufacturer’s advantage to provide full support to our customers include very competitive prices, after-sale service,operation manuals,drawings,delivery time ;OEM processed,Agency and so on.
Hydraulic Grapple Feature:
1. The wide opening width with light weight , not only outstanding performance in handing the iron bar but also maximize the operation efficiency with light weight.
2. Unlimited clockwise and anti-clockwise 360 rotatable.
3. Special designed swing bearing for durability and big cylinder for more power.
4. Check valve is embedded for better safety shock value enclosed for better safety from damage.
5. Wear resistant special solid steel is used and no extra reinforcement is requirement.

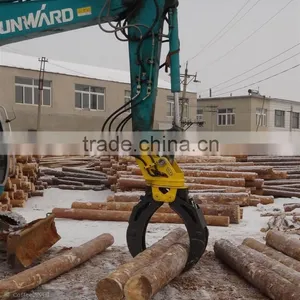

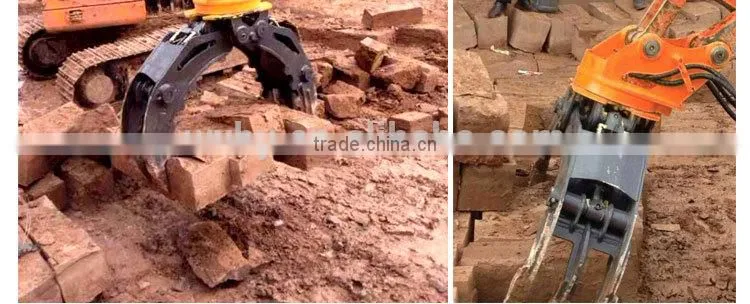

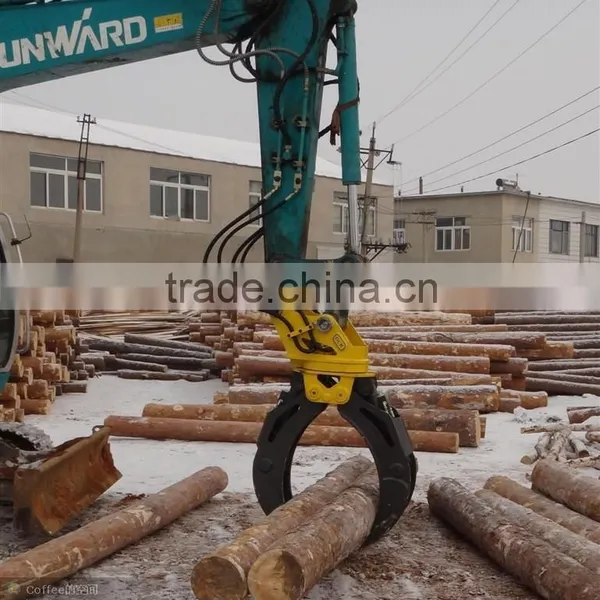

6. Flexible choices dependent on job environment Operator can control the rotating speed.Versatile applications including handing of stones,wood,cane,pipes,disposable waste,landscaping works and many others.
Hydraulic Grapple Specification:
|
Model Name |
Unit |
BYKL03 |
BYKL04 |
BYKL036 |
BYKL08 |
BYKL10 |
BYKL14 |
BYKL20 |
Weight |
kg |
320 |
390 |
740 |
1380 |
1700 |
1900 |
2100 |
Max jaw opening |
M/m |
1300 |
1400 |
1800 |
2300 |
2500 |
2500 |
2700 |
Oil Pressure |
kg/cm2 |
110-140 |
120-160 |
150-170 |
160-180 |
160-180 |
180-200 |
180-200 |
Set up Pressure |
kg/cm2 |
170 |
180 |
190 |
200 |
210 |
250 |
250 |
Operating flux |
L/min |
30-55 |
50-100 |
90-100 |
100-140 |
130-170 |
200-250 |
250-320 |
Cylinder Volume |
Ton |
4.0x2 |
4.5x2 |
8.0x2 |
9.7x2 |
12x2 |
12x2 |
12x2 |
Suitable excavator |
Ton |
4-6 |
7-11 |
12-16 |
17-23 |
24-30 |
31-40 |
41-50 |
Our hydraulic grapple equipment is suitable for Kinds of Excavator Models for your review
