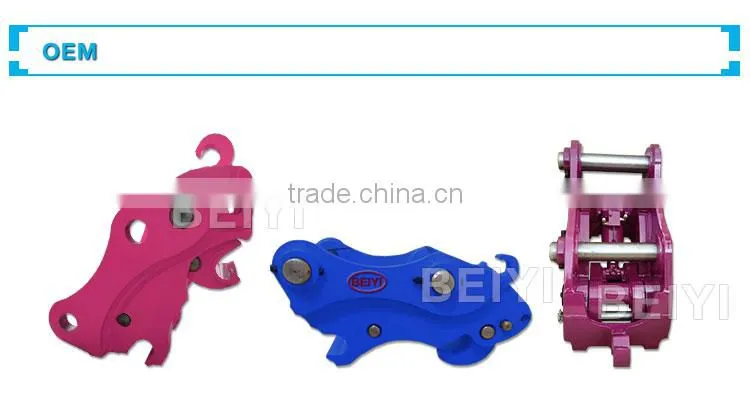

Hydraulic quick hitch, Excavator quick coupler, Quick hitch coupler
Application: to be equiped with hydraulic breaker, hydraulic compactor, hydraulic grapple, ripper etc.
Advantage:

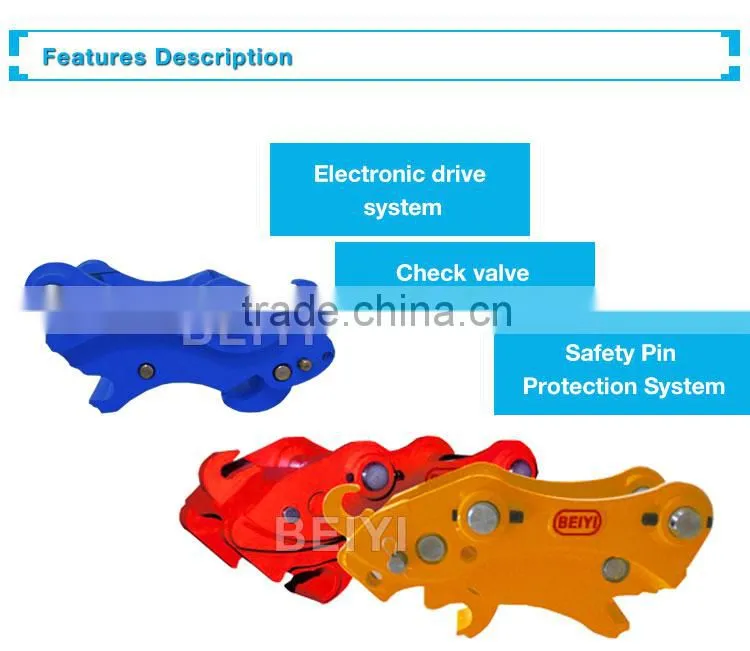

FULL AUTOMATIC DOUBLE SAFETY SYSTEM
1.Can deal with switching from bucket to hammer, bucket to ripper, grapple, hydraulic compactor flexibly.
2.Electronic drive system is installed in the cab,the expensive hydraulic pressure is replaced by the electric power,which save the cost from the production. Operators in the cab can easily turn on and turn off the quick hitch through the switch.
3.Check valve Protection System:each cylinder installed safety check valve ensures That quick hitch coupler can work when
oil circuit and the circuit is cut off.
4.Safety Pin Protection System:security protection is customized for each excavator according to the different parameters.
In the case of the failure of cylinder ,quick hitch coupler can work regularly.
Performance Parameter:
| Model | Unit | BULKMINI | BYLK45 |
BYLK50 BYLK55 |
BYLK60 BYLK65 |
BYLK70 BYLK80 |
BYLK90 |
BYLK100 BYLK110 |
| Overall Length | Mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
| Overall Height | Mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Overall Width |
Mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
| Pin to Pin Center Distance | Mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Forearm Open Width |
Mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
| Retractable Distance of Oil Cylinder | Mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
Top to Bottom Pin Distance |
Mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter |
Mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
| Weight | Kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-580 |
Working Pressure |
Kg/cm2 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
| Required Oil Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Suitable Excavator | Ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
1,Are you a factory ?
Yes, we are a factory,more then 10 years factory
2,Where are your factory ?
Address: A park, ShuangMiao Industrial, HuiShan District, Wuxi, Jiangsu, China ,You can by train form shanghai to Wuxi station ,then we will drive the car to pick you up!
3, What is your delivery time?
Within one week.
4, What's your payment ?
T/T:30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
Western Union ; L/C
5. Limited one year warranty for hydraulic quick coupler
Contact person :Jennifer.Meng
Mob:+86 18762688124(whatsapp)
Skype:jenniferky1
wechat : meng 7463 qq:605317078
Website:
