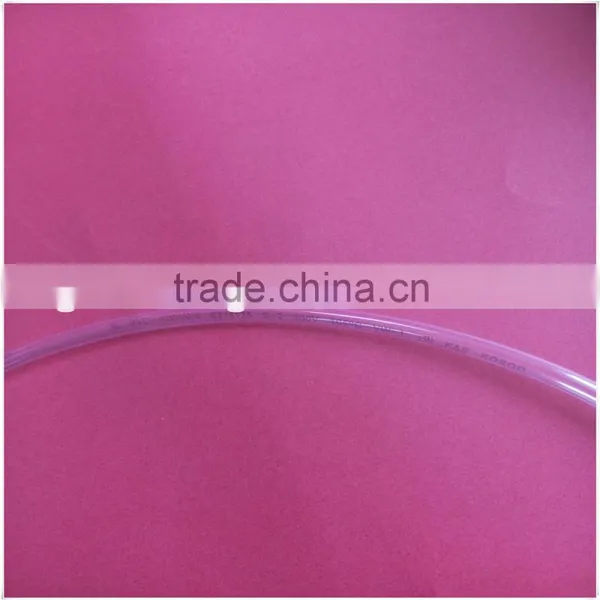

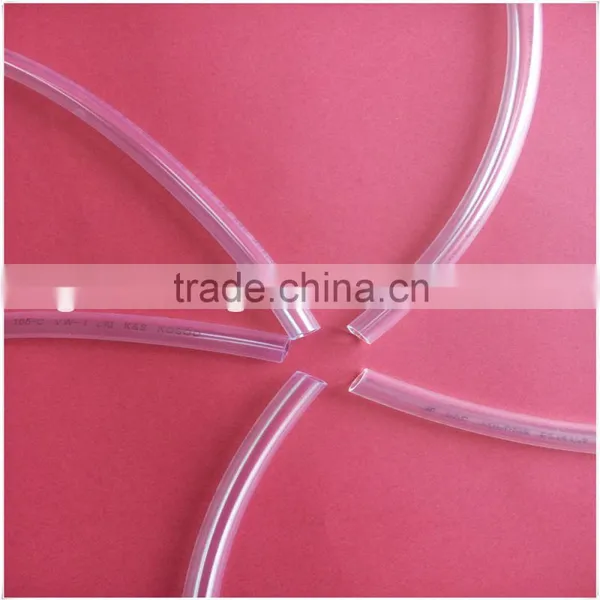

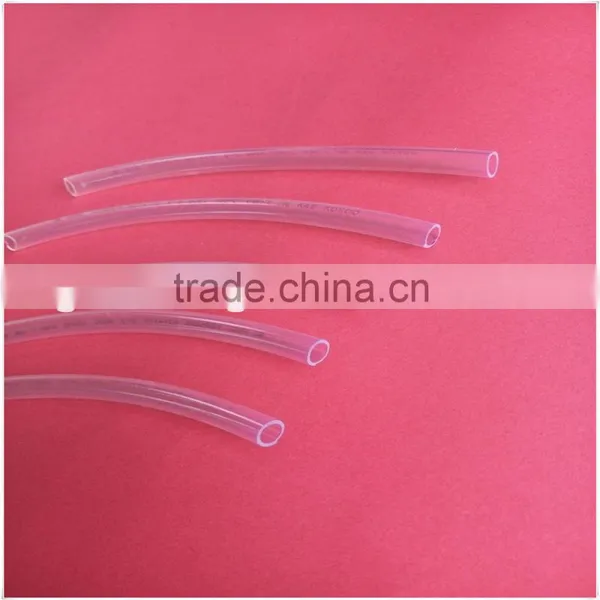

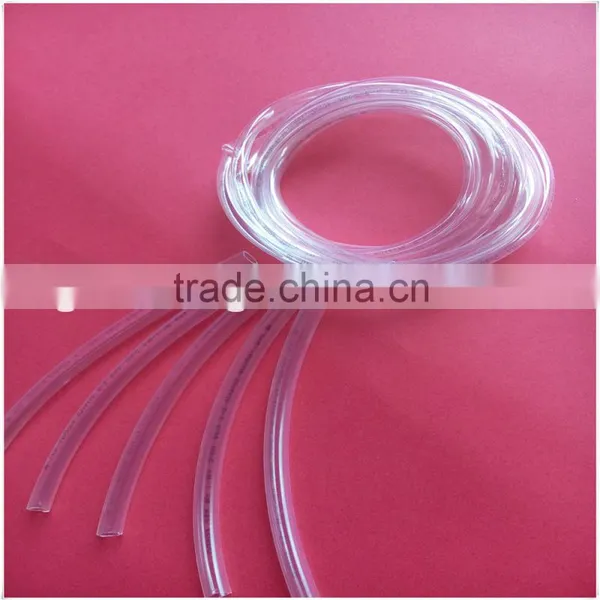

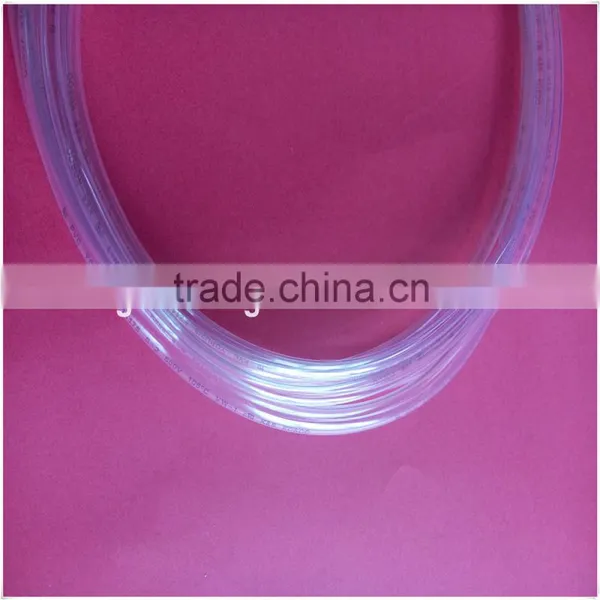

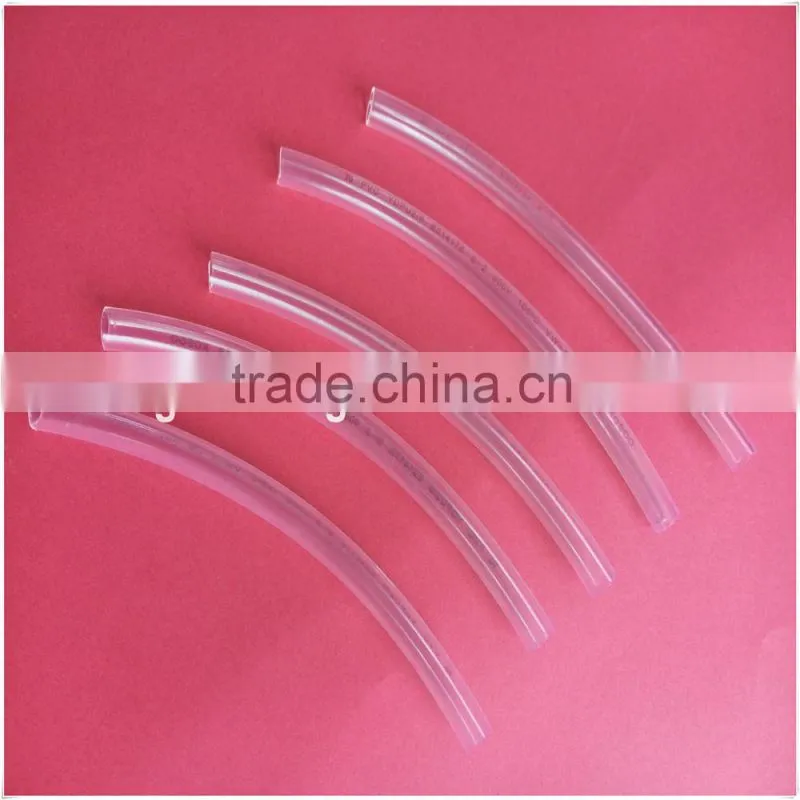

Insulation Sleeving PVC Single Layer Clear Vinyl Tubing
1) Designed for bundling wires of home appliances, automobiles and motorcars
2) The insulating protection of electronic componentss
1) Outstanding electrical and mechanical properties
2) -30- 105°C, VW-1, 600V
3) Conforms to European Environmental Protecting standard: EN71-3ASTMD-3421-75,
SRS-046, EN1122, EPA3052, EPA3050B, EPA3060, EPA7196
4) Operating temperature range: -30 ~ 105°C
5) Approvals: GB8815, GB13527
6) Inside diameter: Φ3.0 ~ 30.0mm
7) Thickness: 0.3 ~ 3.0mm

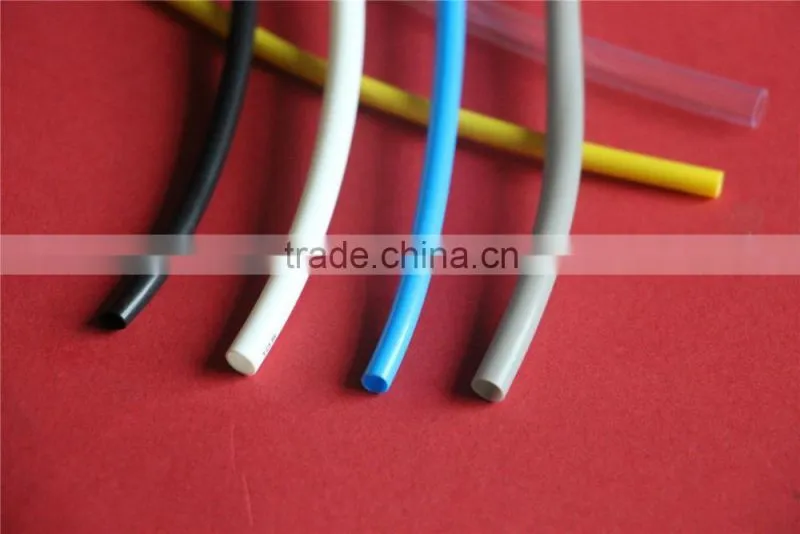

8) Colors: all colors are available
Approvals/Specification
UL224 YDPU2/8 CSA22.2
NO.198.1-M1998
Property |
Value |
Tensile strength <MPa> |
≥10.4 |
Elongation <%> |
≥100 |
Tensile strength after aging<MPa> |
≥7.3 |
Elongation after aging<%> |
≥100 |
Flexibility after aging |
No crack,remain flexible |
Insulating voltage<2500V 60S> |
Pass |
Minimum volume resistivity |
≥1010 |
Cool bending <-30℃ 1h> |
No crack |
Radial shrindage <%> |
≥±5 |
Heat shock |
No crack |
Sizes/colors
inside diameter: 5.0mm~19.5mm
wall thickness:0.3mm~2.0mm
colors :ALL colors are available.
