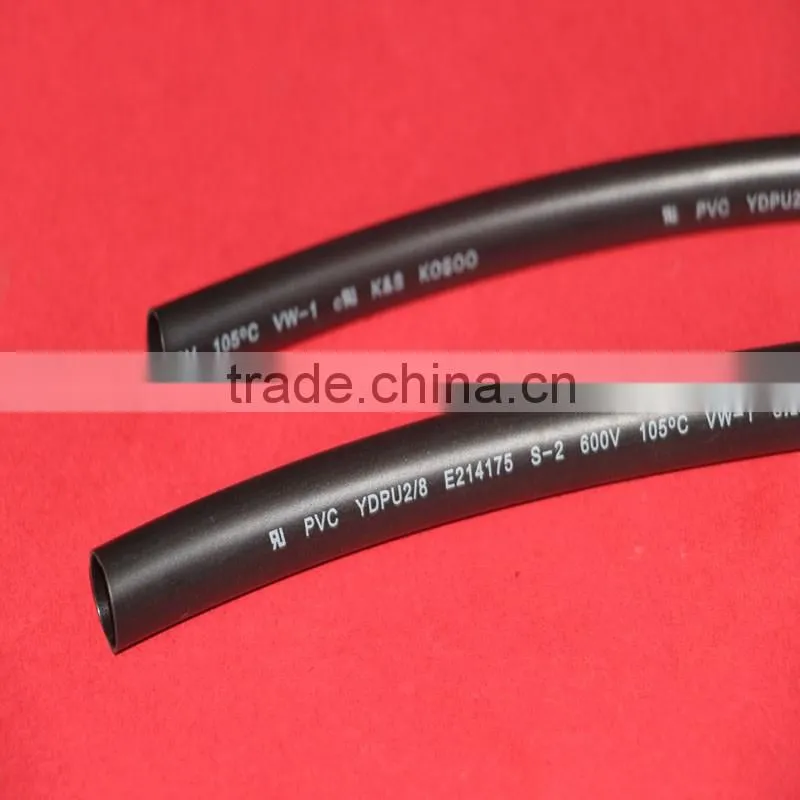

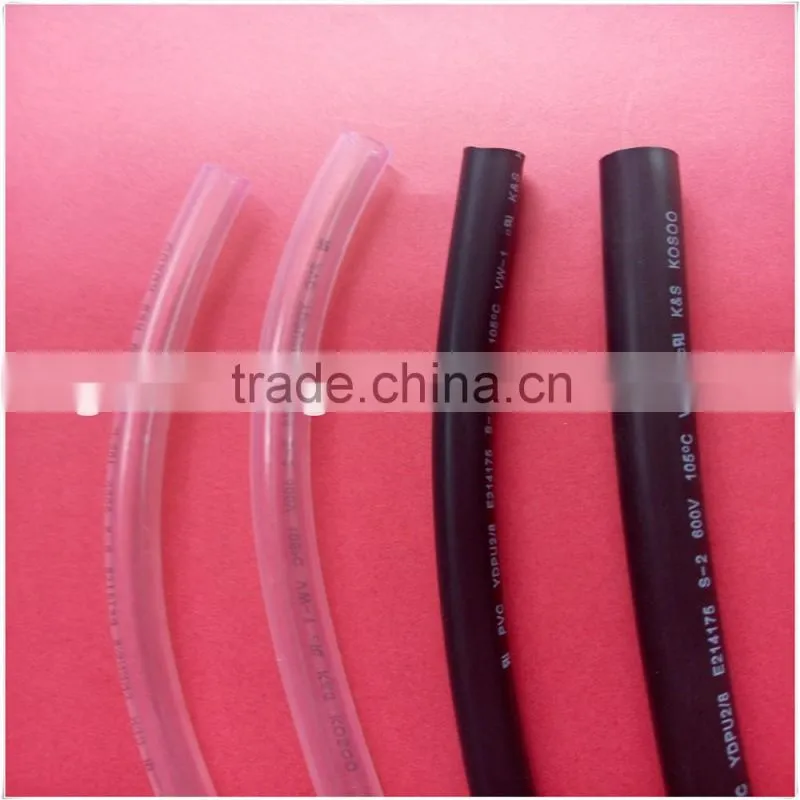

Insulation sleeves thin wall pvc pipe for cable and wire
KOSOO S-2 pvc pipe
Designed for bundling wires of home appliances, automobiles, motorcars.
The insulating protection of electronic components.
1) Outstanding electrical and mechanical properties
2) -30- 105°C, VW-1, 600V
3) Conforms to European Environmental Protecting standard: EN71-3ASTMD-3421-75,
SRS-046, EN1122, EPA3052, EPA3050B, EPA3060, EPA7196
4) Operating temperature range: -30 ~ 105°C
5) Approvals: GB8815, GB13527
6) Inside diameter: 2.0mm ~ 30.0mm
7) Wall Thickness: 0.3 ~ 3.0mm

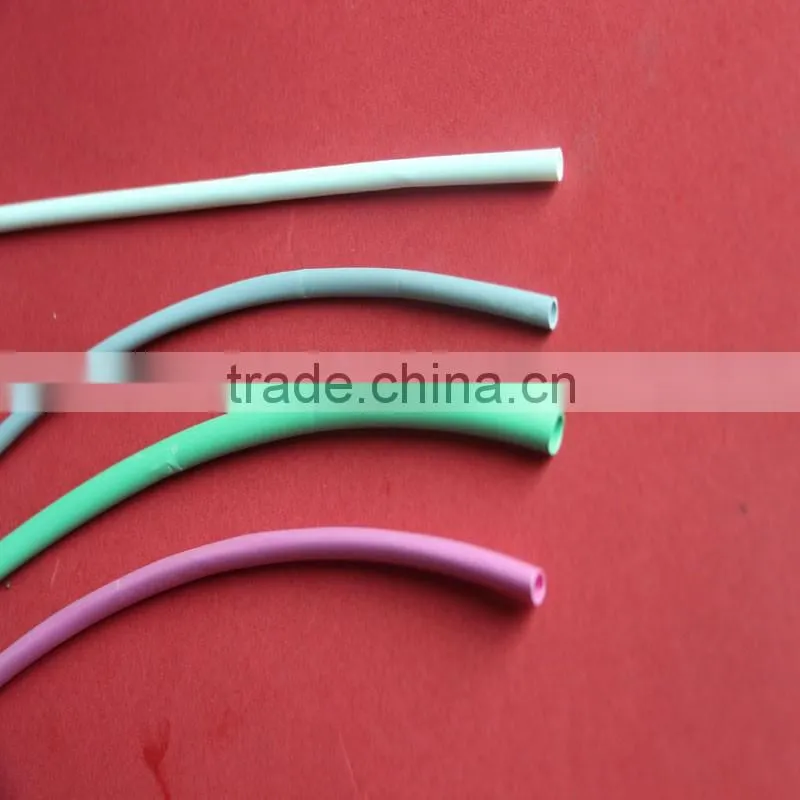

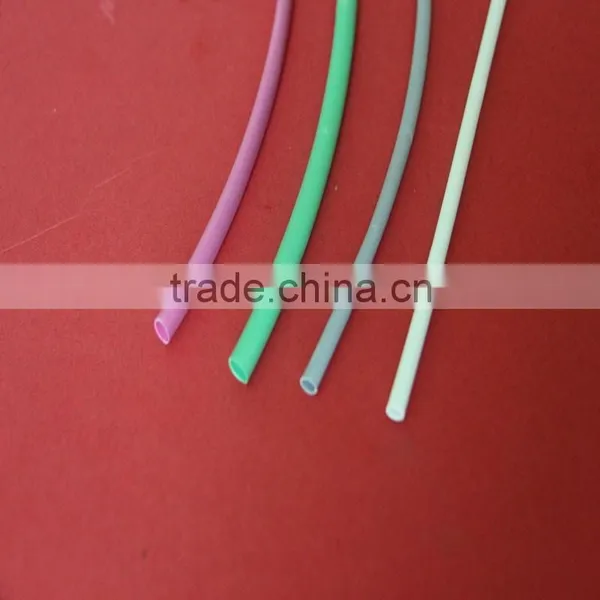

8) Colors: all colors are available
Approvals/Specification
UL224 YDPU2/8 CSA22.2
NO.198.1-M1998
Property |
Value |
Tensile strength <MPa> |
≥10.4 |
Elongation <%> |
≥100 |
Tensile strength after aging<MPa> |
≥7.3 |
Elongation after aging<%> |
≥100 |
Flexibility after aging |
No crack,remain flexible |
Insulating voltage<2500V 60S> |
Pass |
Minimum volume resistivity |
≥1010 |
Cool bending <-30℃ 1h> |
No crack |
Radial shrindage <%> |
≥±5 |
Heat shock |
No crack |
Sizes/colors
- inside diameter: 2.0mm~30mm
- wall thickness:0.3mm~2.0mm
- colors :ALL colors are available.
Standard packing for S-2 pvc pipe

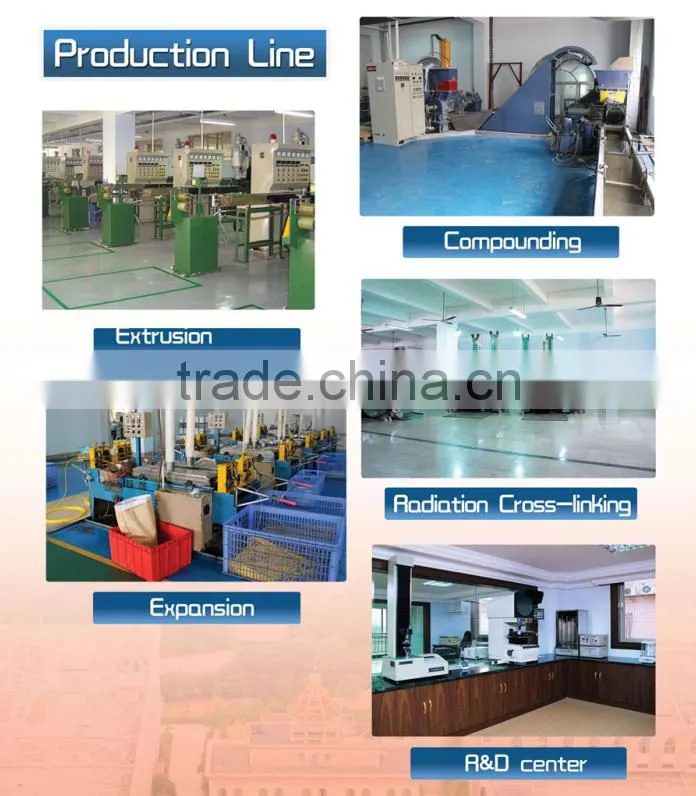

Guangzhou Kaiheng K&S Co., ltd is a major supplier of heat shrinkable tubing offering good-quality products at competitive price. we manufacture and distribute a broad range of heat shrinkable tubing, pvc tubings. trademarked as KOSOO.Our products meet international standards such as UL, CSA and Milspec as well as international environmental demands. the company is certified to ISO 9001:2000 quality syestem.the products are widely used in automotive, electronics, food, telecommunications, shipbuilding, aerospace aviation, military, spacecraft, audio&video, appliance, rail/transit, and various industries.
1.Reply your inquiry in 24 working hours.
2.Fast delivery date, superior quality with competitive prices.
3.100% QC inspection before shipment.
4.Professional teamwork service for you actively.
5.Quick solution and long time online time waiting for your inquiry.
6.Rapid delivery and feedback.
7.Stock available, Free sample
8.We can do that you expect.
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
