KOSOO

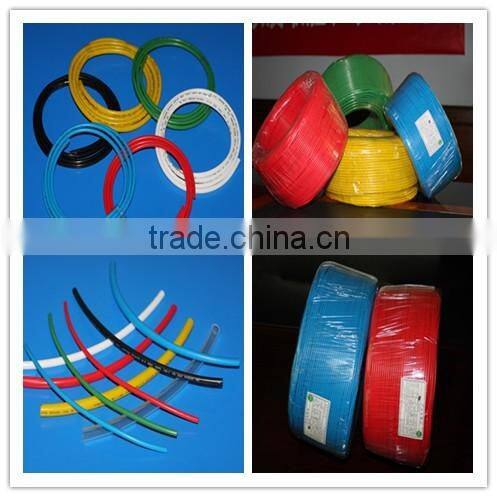

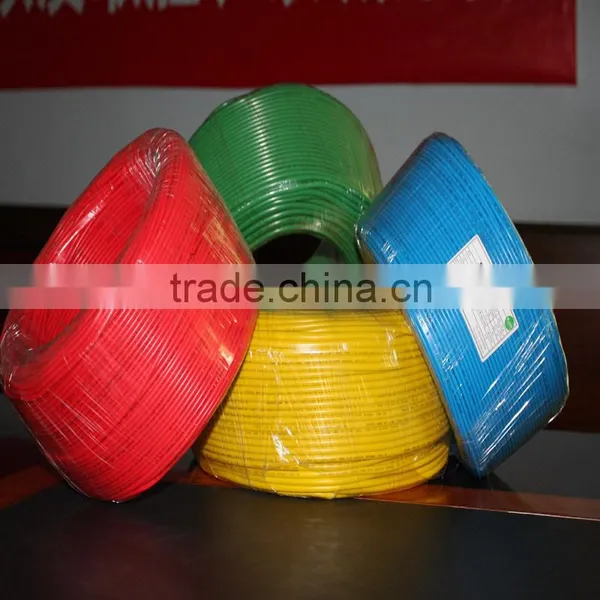

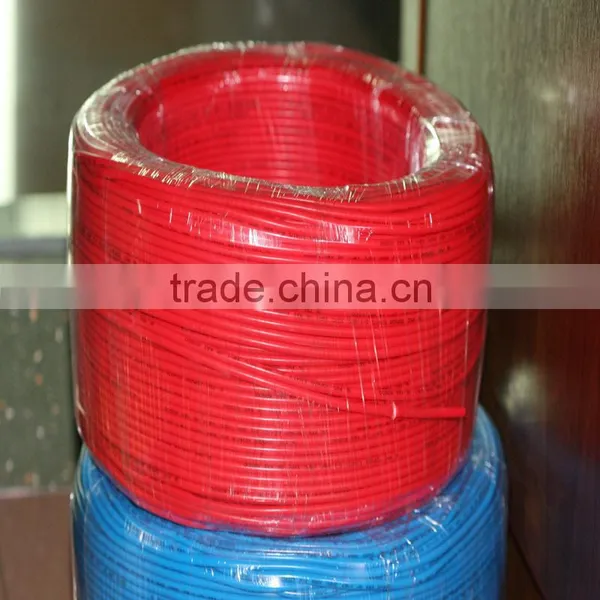

UL PVC Flame-retardant tubing
Application
Designed for wire bundling of home appliances,automobiles and motorcycles.
The insulating and protection of electronic components.
Features/Benefits
Outstanding electrical and mechanical properties.
105℃,VW-1,300V/600V
Conform to RoHS and Sony-ss00259 environmental directive.
Operating temperature range
-30℃~105℃
Approvals/Specification
UL224 YDPU2/8 CSA22.2
NO.198.1-M1998
Property | Value |
Tensile strength <MPa> | ≥10.4 |
Elongation <%> | ≥100 |
Tensile strength after aging<MPa> | ≥7.3 |
Elongation after aging<%> | ≥100 |
Flexibility after aging | No crack,remain flexible |
Insulating voltage<2500V 60S> | Pass |
Minimum volume resistivity | ≥1010 |
Cool bending <-30℃ 1h> | No crack |
Radial shrindage <%> | ≥±5 |
Heat shock | No crack |
Sizes/colors: inside diameter: 5.0mm~19.5mm
wall thickness:0.3mm~2.0mm
colors :ALL colors are available.
Company information
Guangzhou Kaiheng Enterprise Group Co.,Ltd was founded in 1998,and Guangzhou Kaiheng K&S Co.,Ltd is an affiliated company of the group,we are a very professional manfuacturer of PVC tube, heat shrinkable tube including medium wall&heavy wall heat shrinkable tube,Dual &single heat shrinkable tuble,Busbar,Telflon heat shrinkable tube,and wire accessoies for 17 years.And we have over 10 years of exporting experience to overseas makerts.
Certificates
Related Products:heat shrink tubes
