Specifications
Non-heat shrink tube1.environmental friendly,flexible flame retardant,irradiated cross linked tube
2.Wide range of sizes

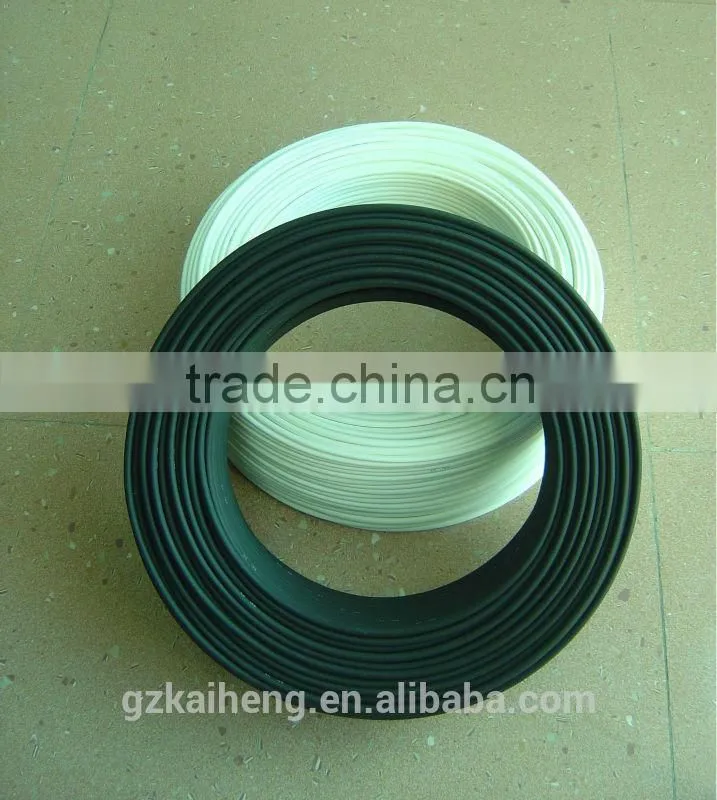

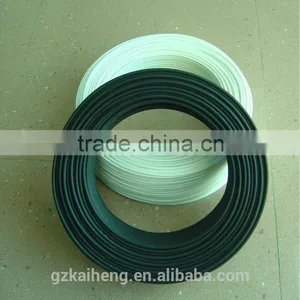

Non-heat shrink tube
KOSOO K-2(XT150)
Environment friendly, flexible, flame-retardant,
heat-resistant 150°C not-heat-shrinkable polyolefin tubing
Application
KOSOO K-2(XT150) is environment friendly, flexible, flame-retardant, irradiated crosslinking heat-resistant 150°C not-heat-shrinkable modified polyolefin tubing. KH150 is free of PCBs, PCPs, polybrominated biphenyls (PBBs), polybrominated biphenyl oxides and ethers (PBBOs, PBBEs and PBDEs) and toxic heavy metal compounds, which are classified as environmentally hazardous substances. It is designed to provide protection, insulation and capsule of wire harnesses where there is exposure to temperatures as high as 150°C.
Features/Benefits
·Good heat resistance.
·Flexible, highly flame-retardant.
·Excellent physical, chemical and electrical properties and high reliability.
Conform to European RoHS environmental directive.
·Wide range of sizes and colors.
Operating Temperature Range
Operating temperature range-55°C~150°C
Specifications / Standards
UL224 VW-1
Specification values
|
Property |
Requirement |
Test method |
Typical data |
Physical |
Tensile strength |
10.4MPa min. |
ASTM D 638 |
≥14.0MPa |
|
Elongation |
200% min. |
ASTM D 638 |
≥400% |
|
Heat shock 250°C, 4hrs |
No cracking, dripping or flowing |
ASTM D 2671 |
Pass |
|
Low temperature flexibility -55°C, 4hrs |
No cracking |
ASTM D 2671 |
Pass |
|
Aging 180°C,168hrs |
|
|
|
|
Tensile strength after aging |
70% of original min. |
ASTM D 638 |
≥90% |
|
Elongation after aging |
100% min. |
ASTM D 638 |
≥300% |
|
Electrical |
Dielectric voltage withstand |
2500V, 60sec no breakdown |
UL224 |
Pass |
Dielectric strength |
19.7KV/mm min. |
ASTM D 2671 |
25KV/mm |
|
Volume resistivity |
1014Ω·cm min. |
ASTM D 876 |
≥1014Ω·cm |
|
Chemical |
Corrosion |
No corrosion |
ASTM D 2671 |
Pass |
|
Flammability |
VW-1 |
UL224 |
Pass |
Product sizes
|
Size (AWG) |
Inside diameter (mm) |
Wall thickness (mm) |
Standard length (m/spool) |
AWG18 |
1.00±0.10 |
0.40±0.06 |
400 |
AWG16 |
1.30±0.10 |
0.40±0.06 |
400 |
AWG14 |
1.65±0.10 |
0.40±0.06 |
400 |
AWG12 |
2.10±0.15 |
0.40±0.06 |
400 |
AWG10 |
2.60±0.15 |
0.50±0.06 |
400 |
AWG8 |
3.30±0.15 |
0.50±0.06 |
400 |
AWG6 |
4.10±0.20 |
0.50±0.06 |
200 |
AWG4 |
5.20±0.20 |
0.50±0.06 |
200 |
AWG2 |
6.50±0.20 |
0.50±0.06 |
100 |
AWG0 |
8.30±0.30 |
0.50±0.06 |
100 |
3/8″ |
9.50±0.40 |
0.50±0.06 |
100 |
7/16″ |
11.10±0.40 |
0.50±0.06 |
100 |
1/2″ |
12.70±0.40 |
0.50±0.06 |
100 |
Ordering Information
Standard black (-BK), white (-WH)
Nonstandard colors are available upon request.
Nonstandard size
Nonstandard sizes are available upon request.
Standard packaging
On spools.
Ordering description
Specify product type, size and color.
