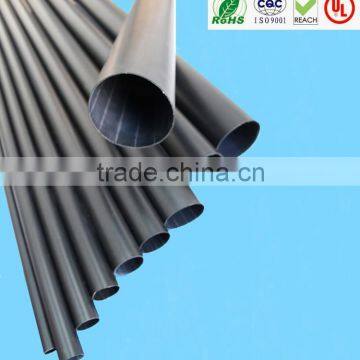

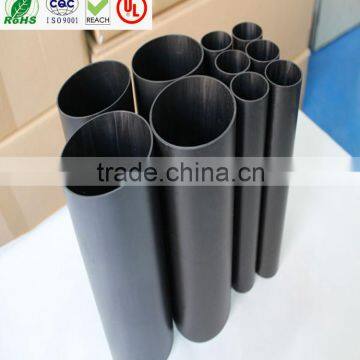

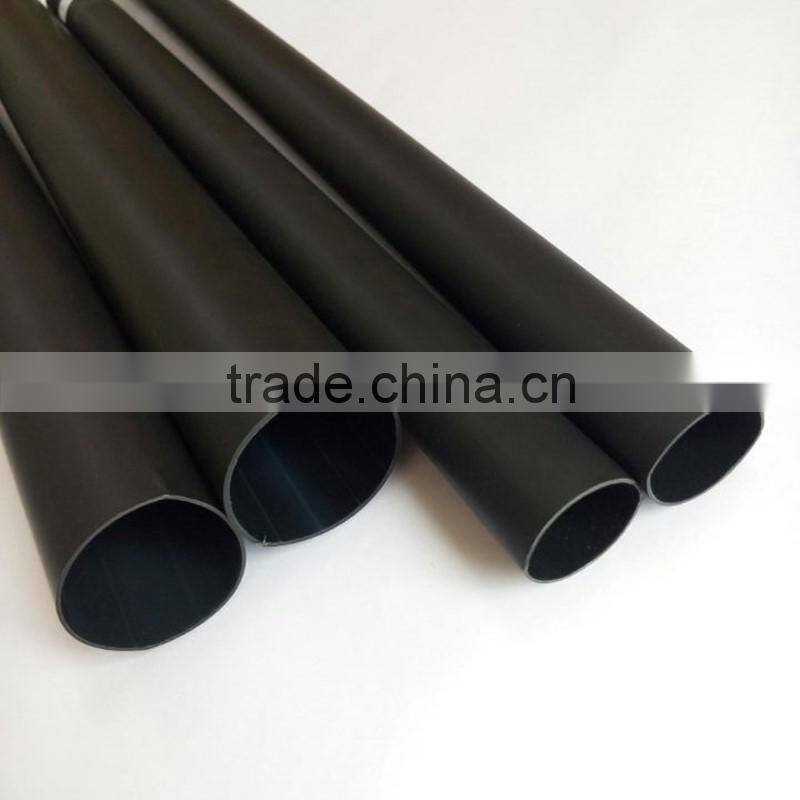

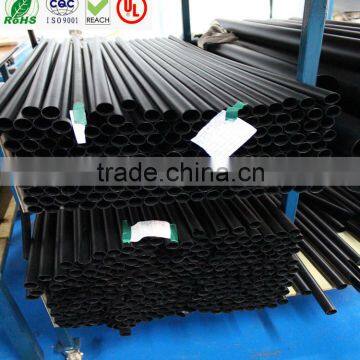

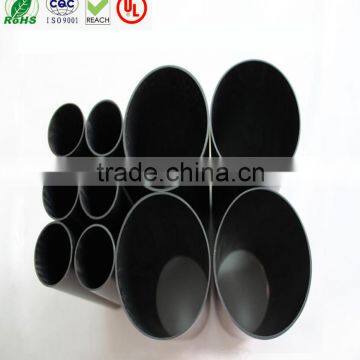

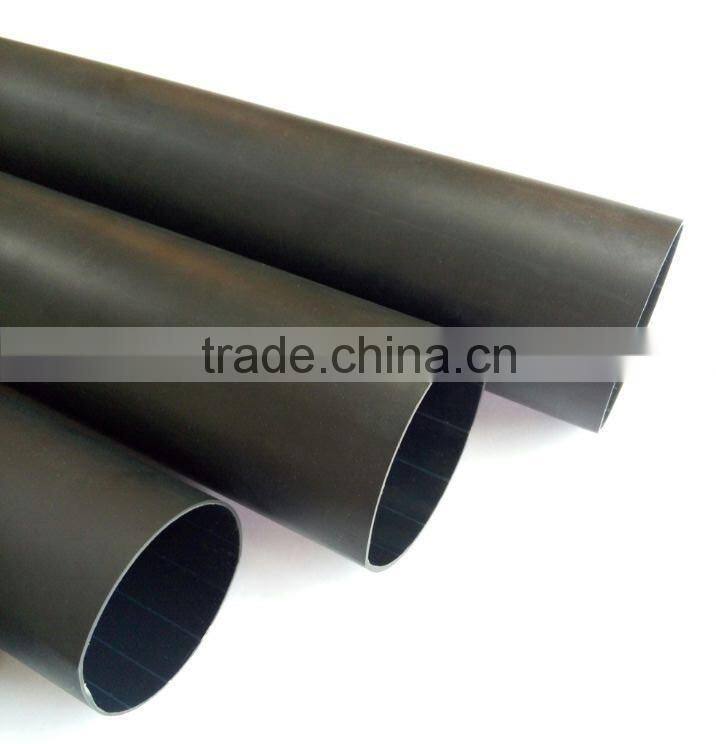

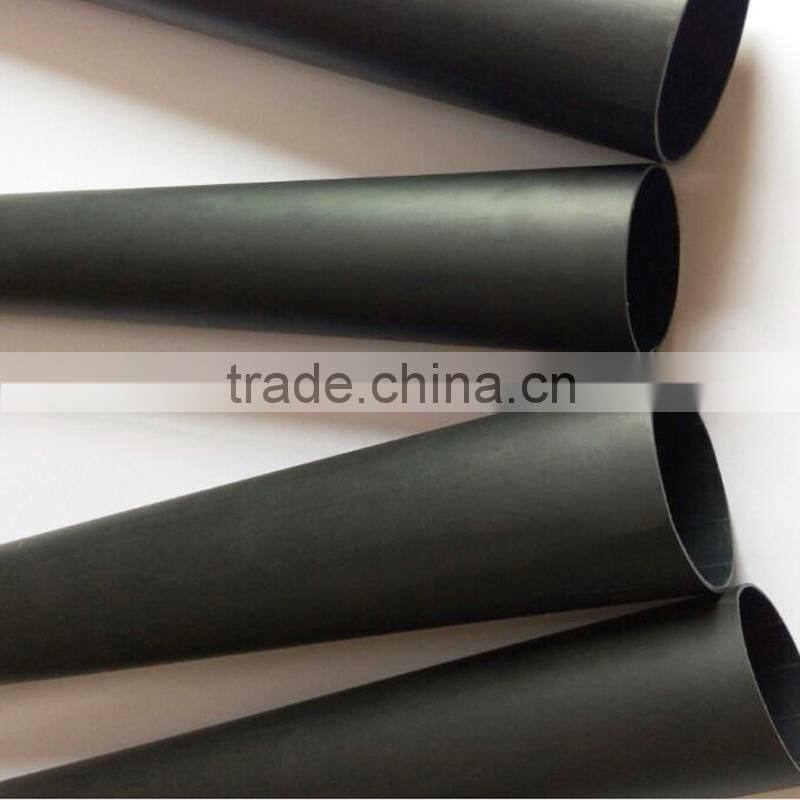

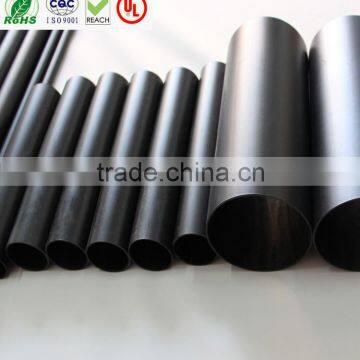

Medium wall PE material heat shrinkable tubing in communication cable and pipe
Designed with large expansion ratio and hot melt adhesive, which provides maximum reliability for insulation and protection to cable joints and terminations,and high abrasion and corrosion resistance for applying in communication cable and chemical pipe.
Features
1. Easily fit over irregular shape and large connectors
2. Resistant to UV and waterproof
3. Excellent electrical insulation
4. Operating temperature: -55℃ to 110℃
5. Minimum shrink temperature:80℃
6. Minimum fully recovery temperature:120℃
7. Standard color: Black
Technical Data
Property |
Test Method |
Typical Data |
Operation temperature |
IEC 216 |
-55℃to110℃ |
Tensile strength |
ASTM D 2671 |
≥14MPa |
Elongation break |
ASTM D 2671 |
≥400% |
Density |
ASTM D 792 |
1.05g/cm3 |
Longitudinal shrinkage |
UL 224 |
0 to 10% |
Volume resistance |
IEC 93 |
>1014Ω.cm |
Eccentricity |
ASTM D 2671 |
≤30% |
Copper stability |
ASTM D 2671 |
Pass |
Product Dimensions
|
Normal size (mm) |
As supplied(mm) |
After recovered (mm) |
|
ID(Min.) |
ID(Max.) |
WT Min |
|
8/2 |
8 |
2 |
1.7 |
12/3 |
12 |
3 |
2.0 |
16/5 |
16 |
5 |
2.2 |
19/5 |
19 |
5 |
2.5 |
22/6 |
22 |
6 |
2.5 |
28/6 |
28 |
6 |
2.5 |
33/8 |
33 |
8 |
2.5 |
40/12 |
40 |
12 |
2.5 |
44/14 |
44 |
14 |
2.7 |
55/16 |
55 |
16 |
2.8 |
65/19 |
65 |
19 |
3.0 |
75/22 |
75 |
22 |
3.0 |
85/25 |
85 |
25 |
3.0 |
95/25 |
95 |
25 |
3.0 |
115/34 |
115 |
34 |
3.0 |
140/42 |
140 |
42 |
3.5 |
160/50 |
160 |
50 |
3.5 |
180/58 |
180 |
58 |
3.5 |
Color
Standard: Black Red
Nonstandard size
Special sizes are available upon request.
Standard packaging
1.22M/Pcs, special size, cutting pieces are available on request
Ordering description
Specify product type, size (mm or inch) and color.
Guangzhou Kaiheng K&S Co., ltdis a major supplier of heat shrinkable tubing offering good-quality products at competitive price. We manufacture and distribute a broad range of heat shrinkable tubings, PVC tubings.Trademarked as KOSOO. Our products meet international standards such as UL, CSA and Milspec as well as international environmental demands.the company is certified to ISO 9001:2000 quality system. The products are widely used in automotive, electronics, telecommunications, appliance and various industries.
