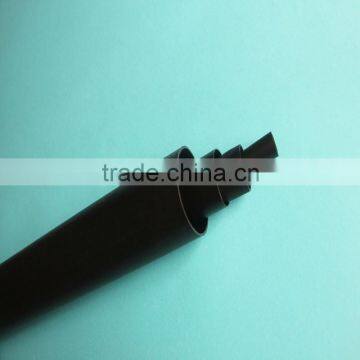

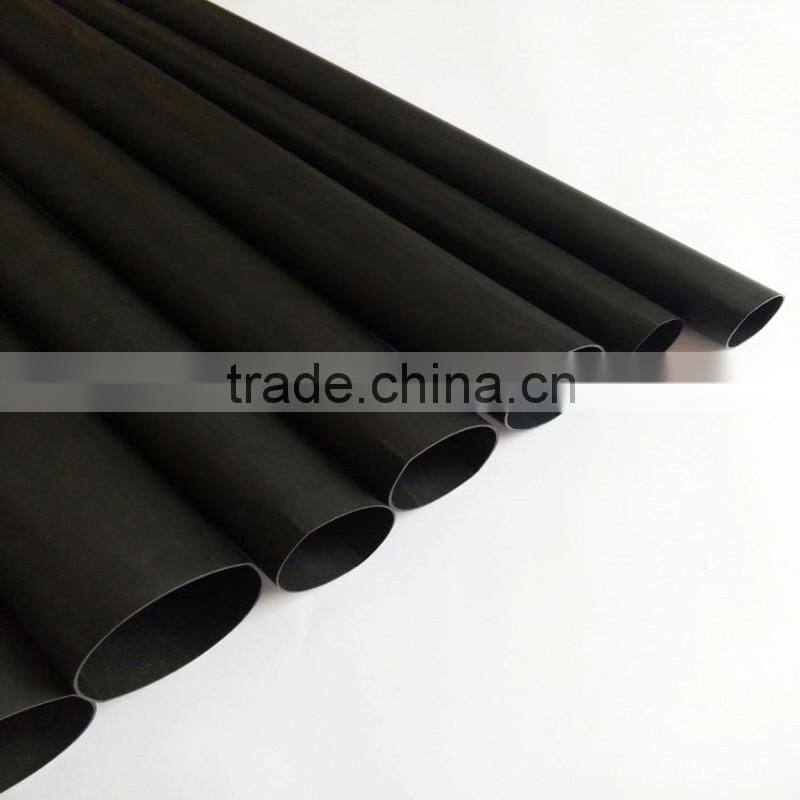

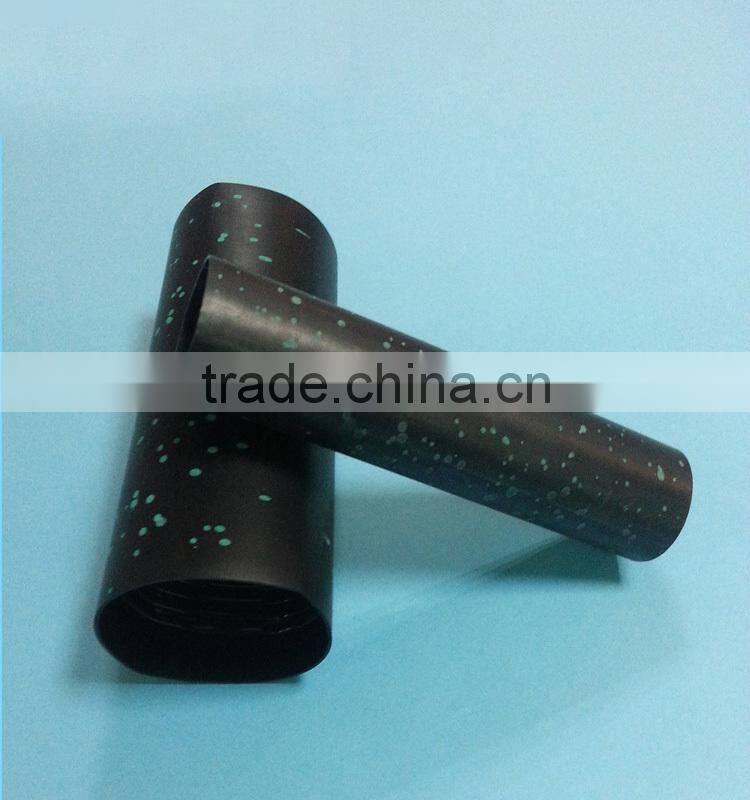

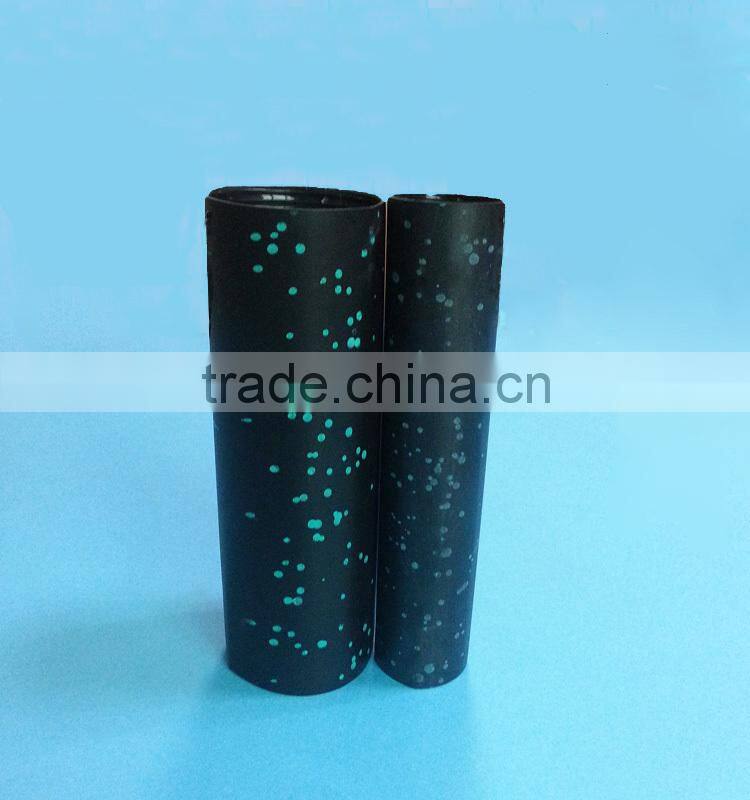

Medium wall heat shrink tube with/witout hot melt adhesive
Applications
This Medium wall heat shrinkable tubing with hot melt adhesive, having properties of excellent insulating, environmental sealing, and resistant to impact and abrasion, it is designed for applications to seal and protect electrical splices, cable terminations and joints where electrical insulation and water proof are required, 3:1 shrink ratio allows it easily fit over irregular shape and large connectors.
Feature
Shrinkable ratio:3:1
Easily fit over irregular shape and large connectors.
Resistant to UV and waterproof.
High electrical insulation.
Operating temperating:-55℃ to 110℃.
Minimum shrink temperature:80℃.
Minimum fully recovery temperature:120℃
Standard color: Black
Product Dimensions
|
Normal size (mm) |
As supplied(mm) |
After recovered (mm) |
|
ID(Min.) |
ID(Max.) |
Wall thickness Min |
|
KHRA2 8/2 |
8 |
2 |
1.7 |
KHRA2 12/3 |
12 |
3 |
2.0 |
KHRA2 16/5 |
16 |
5 |
2.2 |
KHRA2 19/5 |
19 |
5 |
2.5 |
KHRA2 22/6 |
22 |
6 |
2.5 |
KHRA2 28/6 |
28 |
6 |
2.5 |
KHRA2 33/8 |
33 |
8 |
2.5 |
KHRA2 40/12 |
40 |
12 |
2.5 |
KHRA2 55/16 |
55 |
16 |
2.7 |
KHRA2 65/19 |
65 |
19 |
2.8 |
KHRA2 75/22 |
75 |
22 |
3.0 |
KHRA2 85/25 |
85 |
25 |
3.0 |
KHRA2 95/25 |
95 |
25 |
3.0 |
KHRA2 115/34 |
115 |
34 |
3.0 |
KHRA2 140/42 |
140 |
42 |
3.0 |
KHRA2 160/50 |
160 |
50 |
3.0 |
KHRA2 180/58 |
180 |
58 |
3.0 |
KHRA2 205/65 |
205 |
65 |
3.0 |
KHRA2 235/65 |
235 |
65 |
3.0 |
KHRA2 265/75 |
265 |
75 |
3.0 |
KHRA2 300/85 |
300 |
85 |
3.0 |
KHRA2 350/100 |
350 |
100 |
3.0 |
Thermoplastic Adhesive
Property |
Test Method |
Typical Data |
Water absorption |
ISO62 |
max.0.2% |
Softening point |
ASTM D E28 |
85Celsius |
Peel strength(PE) |
DIN 30672 |
4N/cm |
Copper stability |
ASTMD2671 |
Non-corrosive |
|
Resistance to fungus and decay |
ISO846 |
Pass |
Standard paking:1.22m/pc.special size &cutting pieces are available on request.
Company information
Guangzhou Kaiheng Enterprise Group Co.,Ltd was founded in 1998,and Guangzhou Kaiheng K&S Co.,Ltd is an affiliated company of the group,we are a very professional manfuacturer of PVC tube, heat shrinkable tube including medium wall&heavy wall heat shrinkable tube,Dual &single heat shrinkable tuble,Busbar,Telflon heat shrinkable tube,and wire accessoies for 17 years.And we have over 10 years of exporting experience to overseas makerts.
