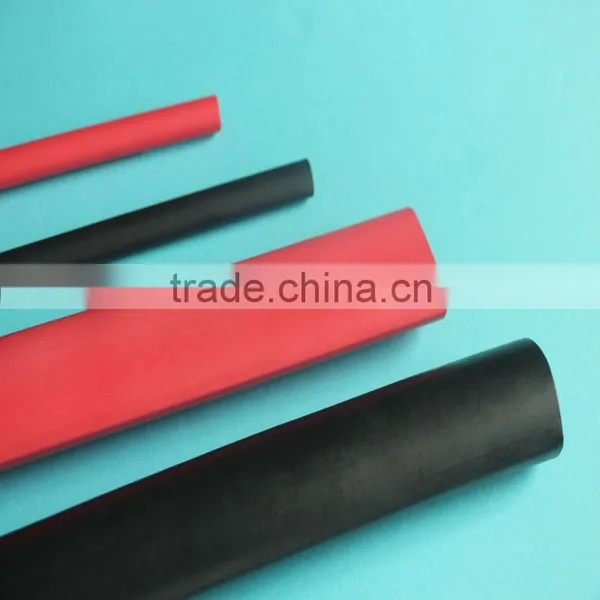

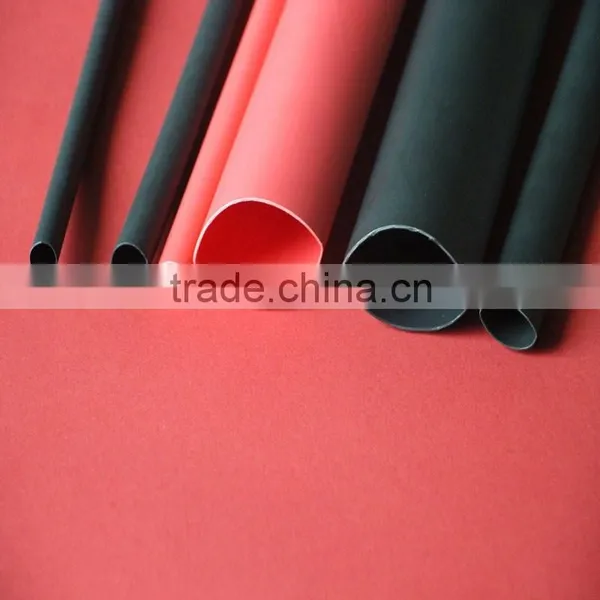

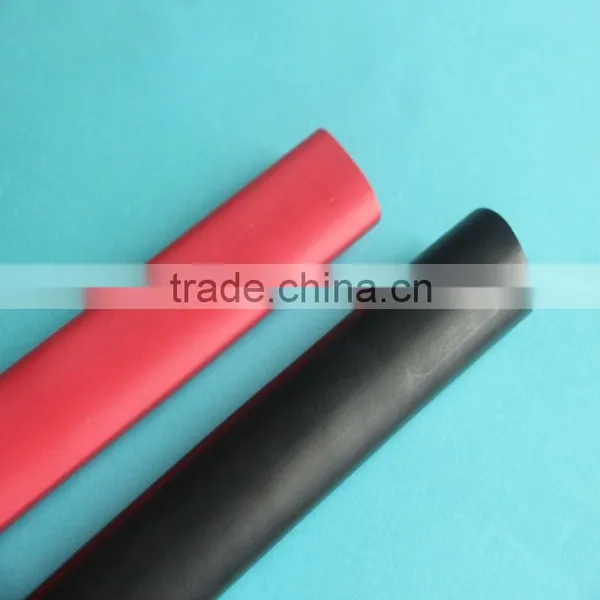

Colorized 3:1 &4:1 Adhesive Heat Shrink Dual Wall Tube With Low Price Quality Choice

Colorized 3:1 &4:1 Adhesive Heat Shrink Dual Wall Tube With Low Price Quality Choice thumbnail-1
Colorized 3:1 &4:1 Adhesive Heat Shrink Dual Wall Tube With Low Price Quality Choice thumbnail-2
Colorized 3:1 &4:1 Adhesive Heat Shrink Dual Wall Tube With Low Price Quality Choice thumbnail-3
Colorized 3:1 &4:1 Adhesive Heat Shrink Dual Wall Tube With Low Price Quality Choice photo-1
Colorized 3:1 &4:1 Adhesive Heat Shrink Dual Wall Tube With Low Price Quality Choice photo-2
Colorized 3:1 &4:1 Adhesive Heat Shrink Dual Wall Tube With Low Price Quality Choice photo-3
US$ 0.2 - 1 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KOSOO
Model Number:
DW(3:1,4:1)
Contact Supplier Request Quote Chat Now
Guangzhou Kaiheng K&S Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou /Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KOSOO
Model Number DW(3:1,4:1)
Type Insulation Sleeving
Material Other, polyolefin
Application Low Voltage
Rated Voltage 600V
Tensile Strength 10.4Mpa

Features/Benefits

·Shrink ratio: 3:1, 4:1.

·Environmentally seals and protects components, joints and interconnections from fluids, moisture and corrosion.

·Good mechnical, electrical and chemical properties.

·Adhesive has good stickness and bonds to a wide variety of plastics, rubbers and metals.

·Conform to RoHS and Sony-ss00259 environmental directive.



Colorized 3:1 &4:1 Adhesive heat shrink dual wall tube with low price

Colorized 3:1 &4:1 Adhesive heat shrink dual wall tube with low priceColorized 3:1 &4:1 Adhesive heat shrink dual wall tube with low price





Operating Temperature Range

·Operating temperature range: -55℃~110℃

·Minimum shrink temperature: 80℃

·Minimum full recovery temperature: 110℃



Specifications/Standards

UL224 125℃ 600V

AMS-DTL-23053/4 class3



Specification values



Property

Requirement

Test method

Typical value

Physical:

Tensile strength

9.0MPa min.

ASTM D 638

≥12MPa

 Elongation

200% min.

ASTM D 638

≥400%

Heat shock

250℃, 4hrs

No cracking, dripping or flowing of outer wall

ASTM D 2671

Pass

Low temperature flexibility

-55℃, 4hrs

No cracking

ASTM D 2671

Pass

Aging  158℃,168hrs







Tensile strength after aging

70% of original min.

ASTM D 638

≥90%

Elongation after aging

100% min.

ASTM D 638

≥300%

Electrical:

Dielectric voltage withstand

2500V, 60sec

 no breakdown

ASTM D 2671

Pass

Volume resistivity

1014Ω·cm min.

ASTM D 876

≥1014Ω·cm

Chemical:

Copper corrosion 158℃,168hrs

No corrosion

ASTM D 2671

Pass



Flammability

ALL  TUBING  FLAME  TEST

UL224

Pass





Product sizes

Size

(inch/mm)

As suppied(mm)

After recovery(mm)

Standard length

(m/length,

  m/spool)

Inside diameter

(min.)

Wall thickness*

(nominal)

Inside diameter

(max.)

Wall thickness*

(nominal)

Adhesive wall thickness

(nominal)

3:1

1/8(3/1)

3.0

0.35

1.0

1.00±0.28

0.50

1.2/200

3/16(4.8/1.6)

4.8

0.35

1.6

1.00±0.28

0.50

1.2/100

1/4(6/2)

6.0

0.4

2.0

1.00±0.28

0.50

1.2/100

3/8(9/3)

9.0

0.5

3.0

1.40±0.28

0.60

1.2

1/2(12/4)

12.0

0.6

4.0

1.78±0.38

0.76

1.2

3/4(18/6)

18.0

0.7

6.0

2.25±0.55

0.76

1.2

1(24/8)

24.0

0.8

8.0

2.54±0.55

1.02

1.2

1 1/4(30/10)

30.0

0.8

10.0

2.54±0.55

1.02

1.2

1 1/2(39/13)

39.0

0.8

13.0

2.54±0.55

1.02

1.2

4:1

4/1

4.0

0.4

1.0

1.00±0.28

0.50

1.2

8/2

8.0

0.45

2.0

1.00±0.28

0.50

1.2

12/3

12.0

0.5

3.0

1.40±0.28

0.60

1.2

16/4

16.0

0.6

4.0

1.78±0.38

0.76

1.2

24/6

24.0

0.7

6.0

2.25±0.55

0.76

1.2

32/8

32.0

0.8

8.0

2.54±0.55

1.02

1.2

52/13

52.0

0.8

13.0

2.54±0.55

1.02

1.2

* Wall thickness includes adhesive wall thickness.



Ordering information

·Standard color:Black(-BK),Nonstandard color:Special colors can be available upon request.

·Standard packaging:1.22m/length or on spools. Cut pieces are available upon request.

·Ordering description:Specify product type, size and color,Nonstandard size,special sizes are

available upon request.



Package

Colorized 3:1 &4:1 Adhesive heat shrink dual wall tube with low price
