Specifications
1.10/100Mbps switch 8 port2.8 port 10/100Mbps TX Auto-Negotiation
3.Factory price
4.FCC,CE,RoHS,GS

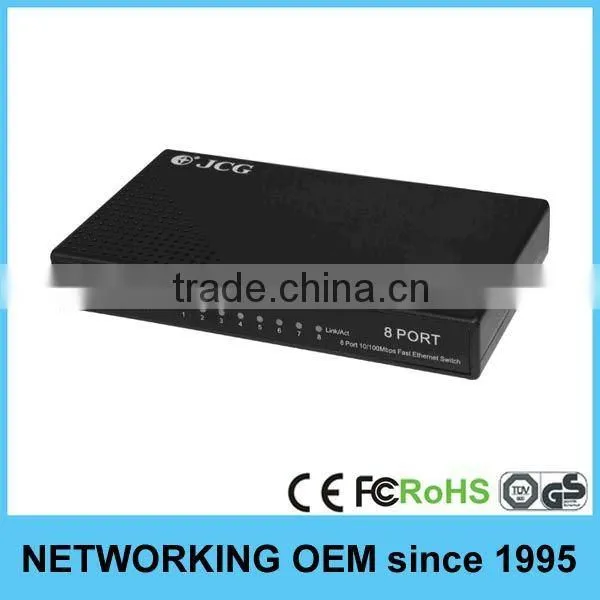

10/100Mbps switch 8 port
JES-108I2
JES-108I2 10/100Mbps switch 8 port is an Ethernet Switch with good quality and very favourable price. OEM service in large quantity is offered.
Product description
Specification
Characters
1.Compliant with the IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX specifications
2.8 port 10/100Mbps TX Auto-Negotiation Ethernet Switch
3.Automatic Source MAC Address Learning and Aging
4.IEEE 802.3x flow control for Full-duplex
5.Back Pressure function for 10/100Mbps Half-duplex operation
6.Plug and Play
Spec
Standard |
IEEE 802.3 10Base-T,IEEE 802.3u 100Base-TX IEEE 802.3x Flow Control |
Port |
8 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) |
Network Media |
10BASE-T: UTP Cat.3 or up 100BASE-TX: UTP Cat.5 or up |
Transmission Method |
Store and Forward |
Data Transfer Rate |
10/100M (Half-duplex) 10/100M (Full-duplex) |
Access Method |
CSMA/CD |
LED Indicators |
Power, Link/Act |
Environment |
Operating Temperature: 0°C~40°C Storage Temperature: -40°C~70°C Operating Humidity: 10%~90%RH(non-condensing) Storage Humidity: 5%~90%RH(non-condensing) |
Power |
9V/500mA |
Dimensions |
162mmx94mmx25mm |
Safety & Emission |
FCC, CE |
Workshop
PCB test
Quality and warranty
All our products are checked quality passed before delivery. Besides we provide ONE YEAR WARANTY for defective items if any.
