80700CD4H High Performance Container Bag Sewing Machine
Applications
We are manufacture of industrial sewing machine ,our products are suitable in sewing PP woven bag ,FIBC bag ,container bag ,big bag ,carpet ,leather and other thickness materials .Our 80700CD4H FIBC bag /container bag sewing machine is applicable for all sew on container bags, such as side sew, bottom sew, inserting top covers, attaching filling and discharging tubes.
Our 80700CD4H is double needle four threads chain stitch big bag sewing machine ,the max.sewing speed is 1,400r.p.m and the max,sewing thickness is 19mm.
Our 80700CD4H Bag sewing machine could replace Union Special 80700CD4H bag sewing machine.
Features
- Double needle four thread chain stitch;
- Max. sewing speed up to 1400rpm;
- Max. sewing thickness up to 19mm;
- Upper and lower feed with pneumatic operated prersser foot and upper feed dog lifter, pneumatic hot thread chain cutter left of the needle;
- Special for heavy duty seaming on FIBC;
- Needle gauge 7.2mm and adjustable stitch length from 6 to 12mm;
- Servo motor drived;
- Special designed pedestal fitted.
Specifications
Model |
80700CD4H |
Stitch Length |
6-12mm |
Max. Sewing Speed |
1,400spm |
Max. Sewing Capacity |
19mm (3/4in.) |
Stitch Type |
Safety Stitch 401.401 |
Needle Gauge |
7.2mm |
Overedge Stitch Width |
10mm (25/64in.) |
Feed Mechanism |
Walking Foot |
Lubrication |
Manual with Built-in Sight Feed Oiler |
Presser Foot Lifter |
Electro-pneumatically Operated |
Needle |
9848G300/120 |
Thread |
Polyester 20/6, 20/9 (2×3, 3×3) |
Net Weight(head) |
42kg |
Gross Weight(head) |
45kg |
Net Weight(with motor and pedestal) |
126kg |
Gross Weight (with motor and pedestal) |
133kg |
Dimension |
490×380×520mm |

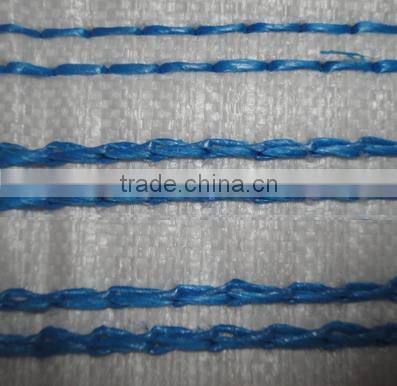

80700CD4H Stitch Sample
Attention:
- Please oil the machine throughly before running;
- Please follow the safety instruction strictly before put the machine into operation.
Our Other Function Similar Sewing Machine :
GK68-2 Single needle double threads chain stitch (401) FIBC bag /big bag /container bag sewing machine
GK68-2 Stitch Sample
