FGB6800 heavy duty sling sewing machine
Applications
FGB6800 heavy duty sling sewing machine is suitable for sewing PP woven bag,FIBC ,container bag,bulk bag with super-thick, medium and thinner materials .
And also suitable for sewing safety belt, tent, seat cushions, suitcase, golf bag and so on .When sewing super-thick, medium and thinner material, no skipping stitches when sewing thick material .
Features
1. FGB6800 High Performance Heavy Duty Single Needle Lockstitch FIBC, PP Bag,Jumbo Bag ,Woven Bag Sewing Machine adopts single straight needle,oscillating shuttle thread hooking mechanism upper and lower combined feeding and foot pedal back sewing.
2.It is easy to operate ,and forms 2-thread lock stitch.
3. FGB6800 High Performance Heavy Duty Single Needle Lockstitch FIBC,PP Bag,Jumbo Bag ,Woven Bag Sewing Machine adopts special upper feeding mechanism and presser cross lifting mechanism, besides the various properties same with other general industrial
sewing machine, it has advantages of same feeding size of upper layer and lower layer.
4.When sewing different contain cloth and sling and medium or thick material with big potential
moving property, easy to feeding when make high and low overlap sewing and climbing sewing.
5.It has steady stitch size, smooth and beautiful stitch. It is easy to operate and has steady property
when sewing thick material or thin material.
6.It could be regulated according to special requirement of containing bag technology.
7.It is easy to sew in forward stitch, inverted stitch and horizontal stitch. It could sew the packing products
with dust-proof strip.
The special presser lifting mechanism of FGB6800 has applied for the National Patent of Invention.
Specifications
Model |
FGB6800 |
|
Sewing Speed |
1,000r.p.m |
|
Max. Sewing Speed |
1,200r.p.m |
|
Stitch length |
0-14mm |
|
Needle bar stroke |
58mm |
|
Presser foot lift |
By hand |
14mm |
Max. |
29mm |
|
Working Space |
220X420mm |
|
Lubrication |
Manual |
|

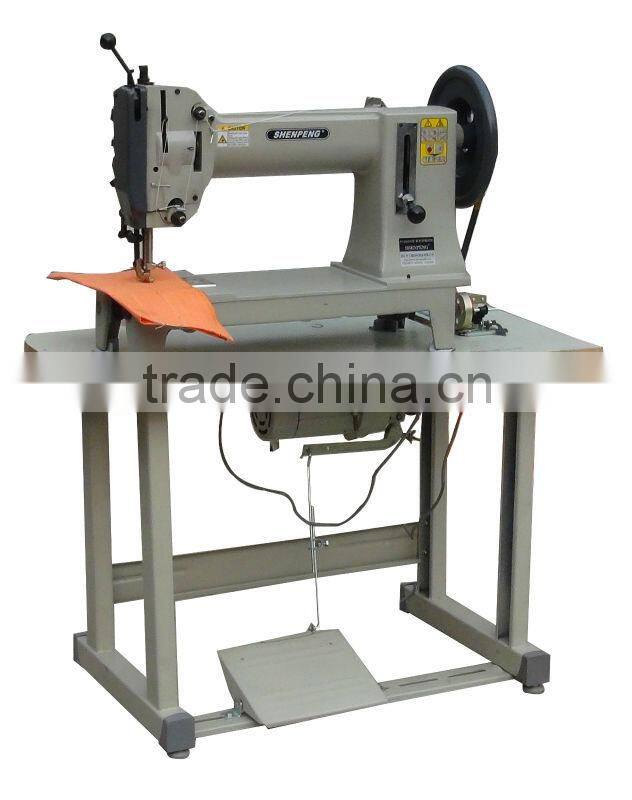

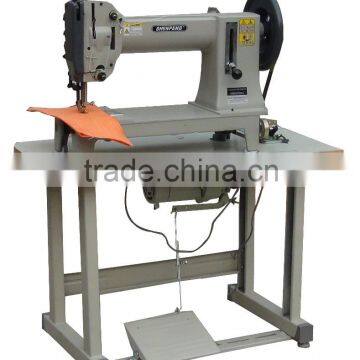

FGB6800 Machine Head ,Table And Motor

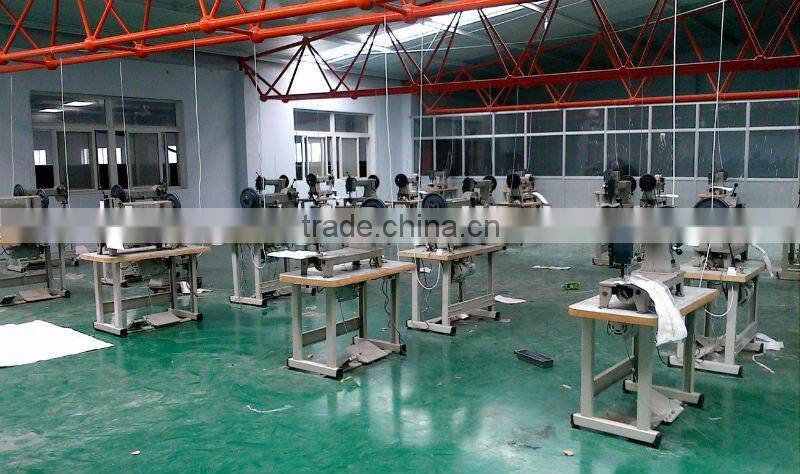

PP Bag Producers Installation FGB6800 A Lot

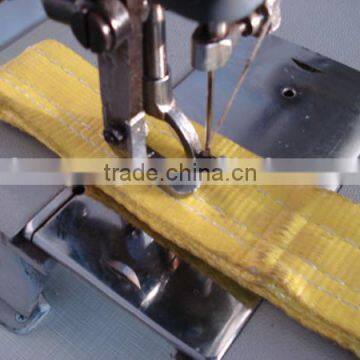

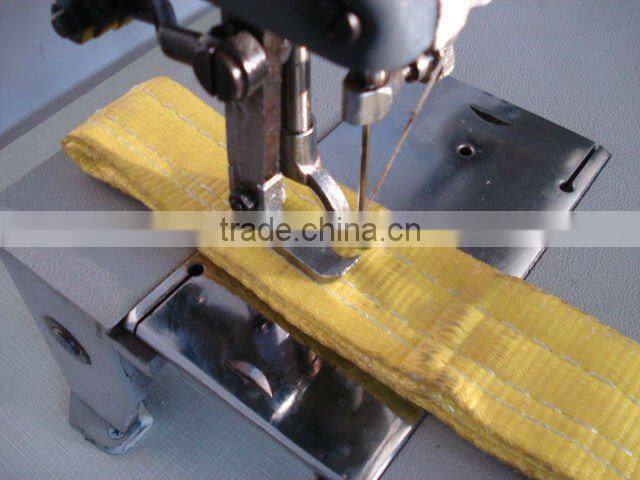

FGB6800 Sewing Ability
FGB6800 Sewing Sample
1.Professional technical consulting;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5.Maintenance and spare parts services.
1. Q: Do you have your own export right ?
A: Yes, we are able to export the sewing machine to any country or region
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Could i visit your factory ?
A: Yes, at the same time you can enjoy more favorable price if buy sewing machine
4. Q: Is your machine could replace Union Special or Newlong sewing machine function?
A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.
5. Q: Do you supply spare parts?
A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.
6. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
Pls click the link to view:
1.FGB4-1 single needle double threads lock stitch FIBC bag /big bag /container bag sewing machine
2.FGB6806 long arm FIBC,bulk bag ,jumbo bag ,big bag ,ton bag sewing machine
3. FGC255 extra heavy-duty, up and down synchronous feeding large rotary hook FIBC,bulk bag ,jumbo bag ,big bag ,ton bag sewing machine
4.GK68-2 single needle double threads chain stitch (401) FIBC bag /big bag /container bag sewing machine
5.GN20-2C high performance overlock stitch FIBC,bulk bag ,jumbo bag ,big bag ,ton bag sewing machine
6.80700CD4H double needles four threads safety stitch(401.401) heavy duty FIBC bag/big bag/container bag sewing machine
7.81300A1HL double needles four threads safety stitch overedging heavy duty FIBC bag/big bag/container bag sewing machine
8.DN-2 series bag sewing machine
9.GK35 series and DS-9 series bag closer sewing machine
10.Portable bag closer sewing machine
