81500CZ Three Thread Drop Feed Overedging Sewing Machine
Detailed Product Description
1.1-Needle,3-Thread overedging stitch
2. 81500CZ nets sewing machine can replace Unionspecial 81500
3. Sewing thickness 4-20mm(more thicker could be customized)
4.With good quality and competitive price
Applications
1.81500CZ net sewing machine is a single needle three thread over lock stitch nets sewing machine;
2. Intermittent stepper twin puller, two driven upper and one driven lower roller;
3.81500CZ sewing capacity up to 20mm, special for side seaming on container bag;
4.For joining nets larger than 45mm mesh width;
Features
Stitch type 502 (one needle three thread overedge stitch);
Adjustable stitch length from 4 to 13mm;
Twin puller feeding;
Main parts apply copper alloy and high duty alloy;
Easy maintenance semi-closed structure;
Manual lubricating with built-in sight feed oiler;
Built-in electro-pneumatically operated presser foot and upper feed dog lifter;
Closed type rolling beating apply in every crankshaft;
Well assembly quality, ensure the stable running and long service life;
High level fishing net sewing machine for joining nets larger than 45mm mesh width;
The needle positioner is provided by Servo motor drived unit with very comfortable operation.
81500CZ nets sewing machine can replace Unionspecial 81500 nets sewing machine.
Specification:
Model |
81500A1HL |
Stitch Length |
4-13mm |
Max. Sewing Speed |
1,500rpm |
Max. Sewing Capacity |
20mm |
Stitch Type |
502 |
Feed Mechanism |
Twin puller feeding |
Lubrication |
Manual with Built-in Sight Feed Oiler |
Needle |
9853GA300/120 9844GAN300/120 |
Net Weight(head) |
55kg |
Net Weight(with motor and pedestal) |
135kg |
Gross Weight (with motor and pedestal) |
140kg |
Dimension |
490×380×520mm |

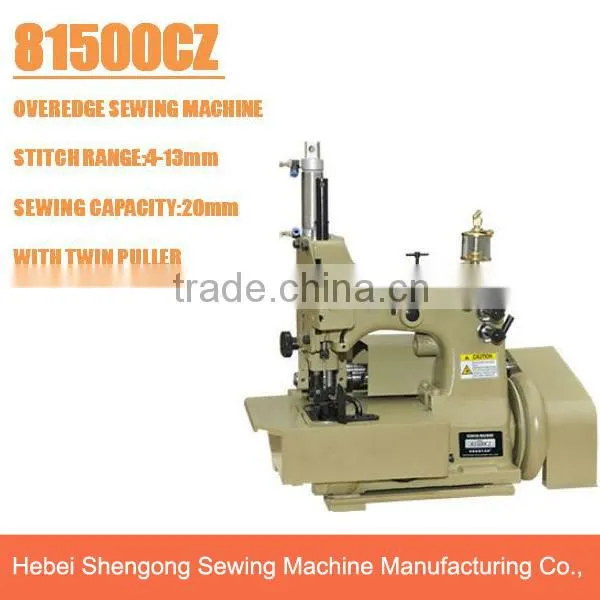

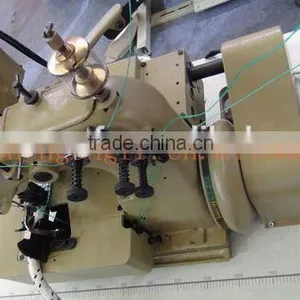

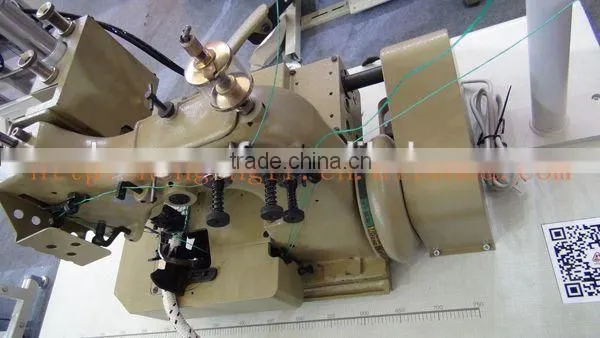

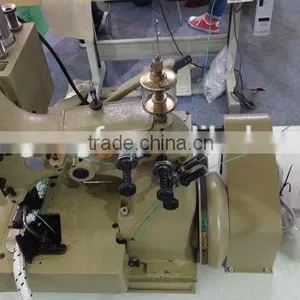

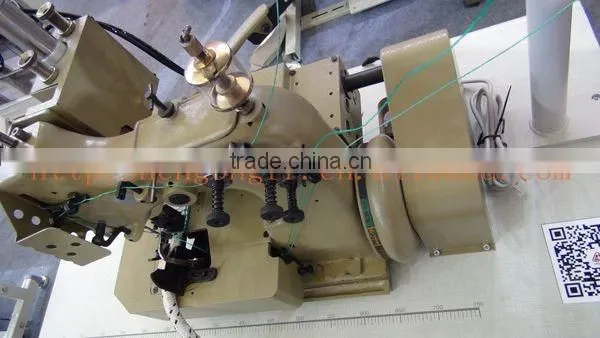

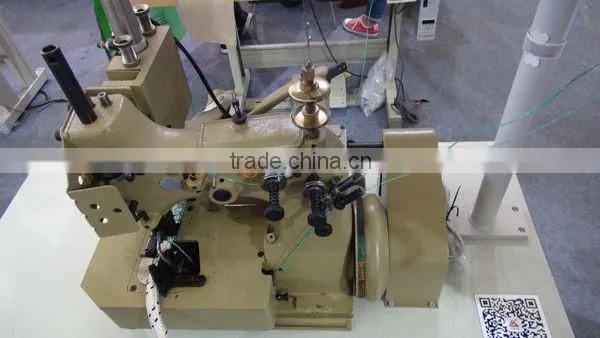

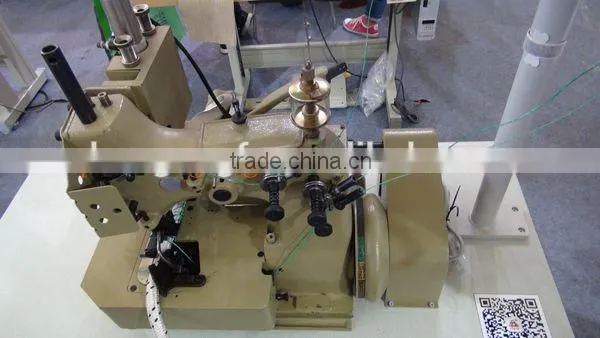

81500 sewing machine head

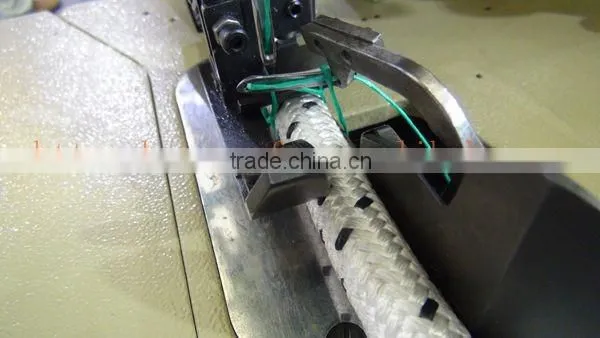

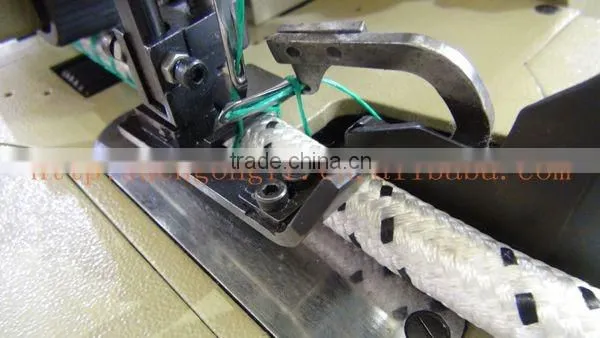

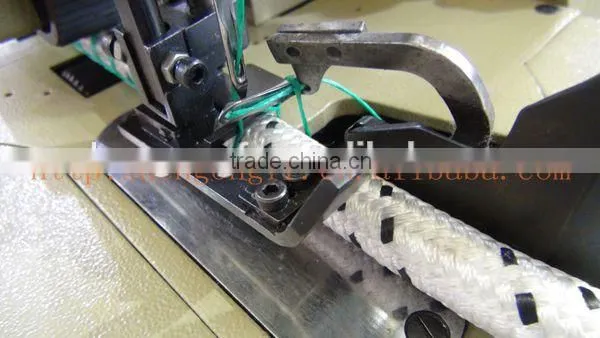

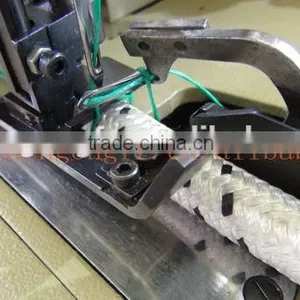

81500 sewing capacity

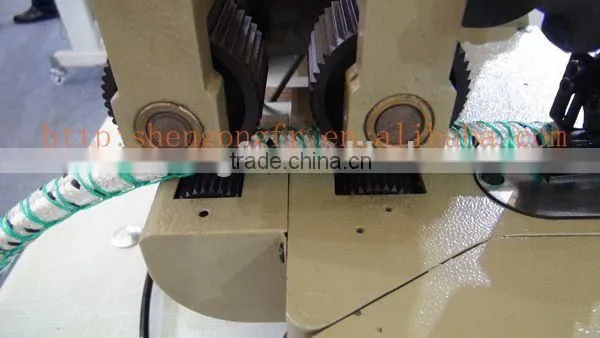

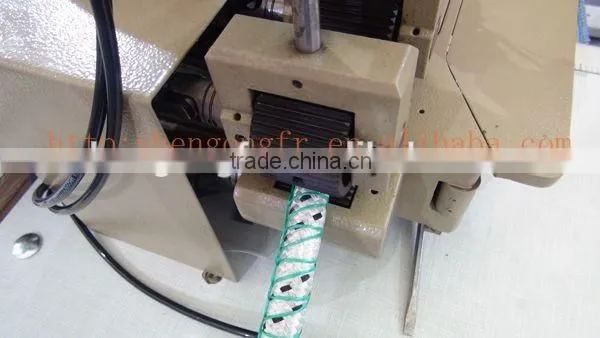

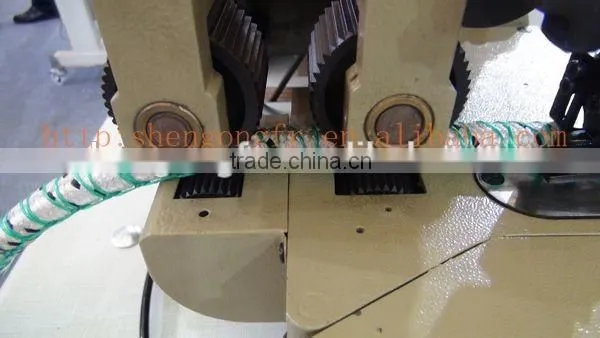

81500 twin puller feeding
1.Professional technical consulting;
2.Machine operating analysis;
3.Stitch sample making;
4. Provide sewing machine working video ;
5.Maintenance and spare parts services.
1. Q: Do you have your own export right ?
A: Yes, we are able to export the sewing machine to any country or region
2. Q: What service you can supply?
A: Model recommendation, sample making, technical consulting, after-service support
3. Q: Could i visit your factory ?
A: Yes, at the same time you can enjoy more favorable price if buy sewing machine
4. Q: Is your machine could replace Union Special or Newlong sewing machine function?
A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.
5. Q: Do you supply spare parts?
A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.
6. Q: What gurantee you supply?
A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
