High Speed Bag Closing Machine DS-9C

High Speed Bag Closing Machine DS-9C

Applications

DS-9C bag closing machine is the fastest single needle double thread chain stitch bag closing machine equipped with pneumatic guillotine type crepe tape cutter, sewing speed up to 2,700 spm, designed for closing all sorts of fill bags.

DS-9C could replaced YaoHan N980AC and Union Special 80800ULM

Features

1.Single needle double thread chain stitch 401

2.Highest speed 2,700 s.p.m in the world

3.Sewing capacity up to 8mm (5/16 in.), 32 plies of paper

4.Adjustable stitch length from 7-10.5mm

5.Built-in pneumatic guillotine type crepe tape cutter

6.Full closed oil bath lubrication system, no need for oiling

7.Complete genuine NLW/NLI parts assembly machine, ensure the top standard quality

8.Well balanced rotational parts ensure very little vibration and promote a highly reliable closing system

9.Ideally suited for high speed bag closing and filling line applications where conveyor speeds exceed 25m/min (80FPM)

10.Split presser foot design ensure bag top control during thread and / or tape cutting

11.All parts are enclosed and protected inside the casting housing, the bag closing machine suitable for use in high dust and corrosive environment

12.Best automatic bag closing machine for crepe tape sewing

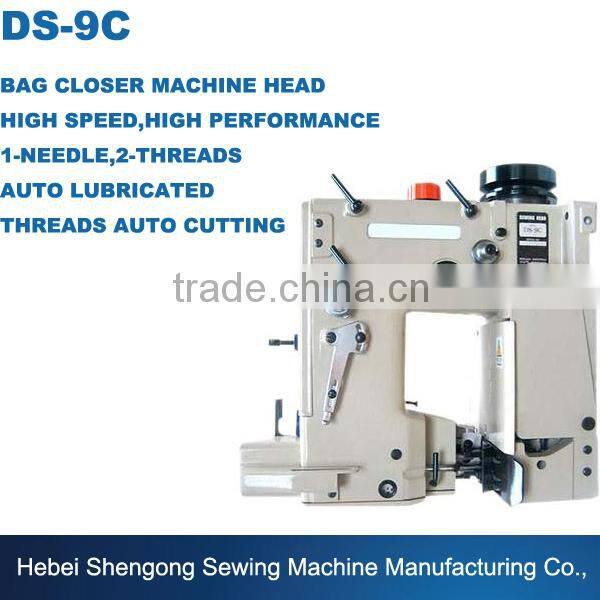

DS-9C Machine Head

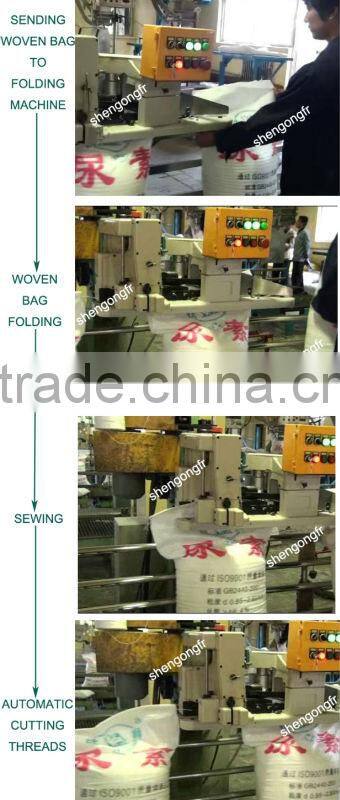

DS-9C  Working Process

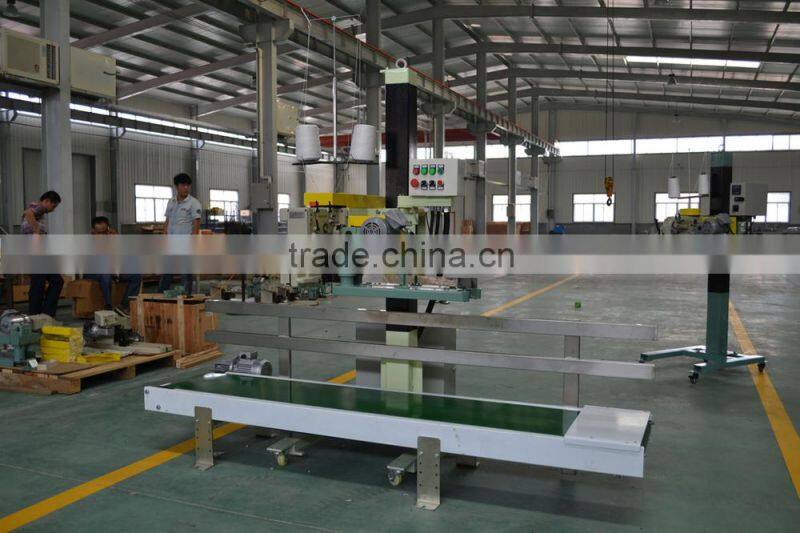

DS-9C Bag Closing System(DS-9C+CP4900 Folding Infeed +A1-PB  Pedestal +Conveyor)

DS-9C Bag Closing System(DS-9C+CP4900 Folding Infeed +A1-PB  Pedestal )

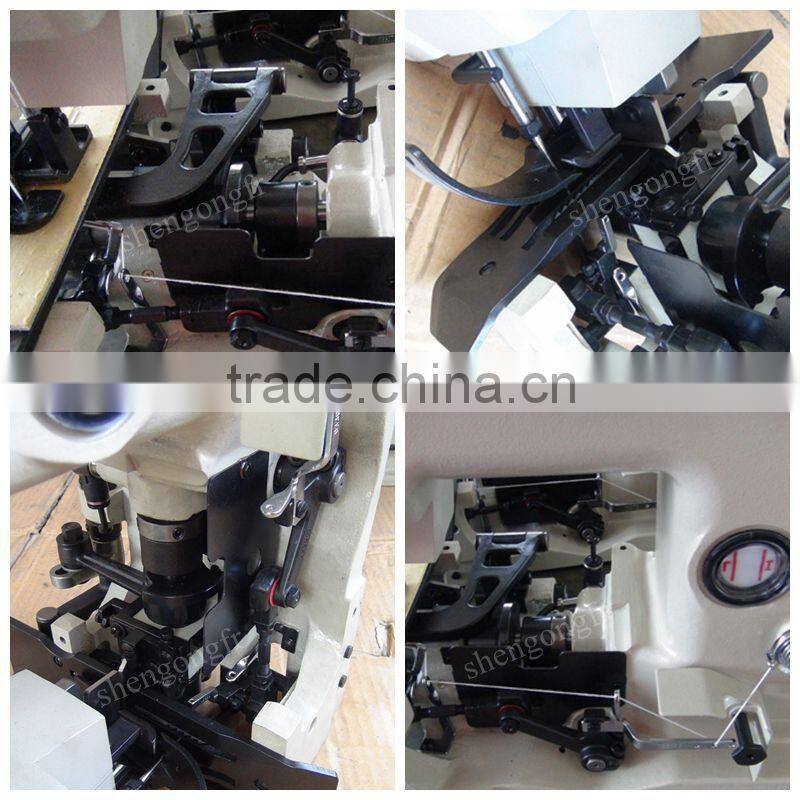

DS-9C Machine Head Internal Structure

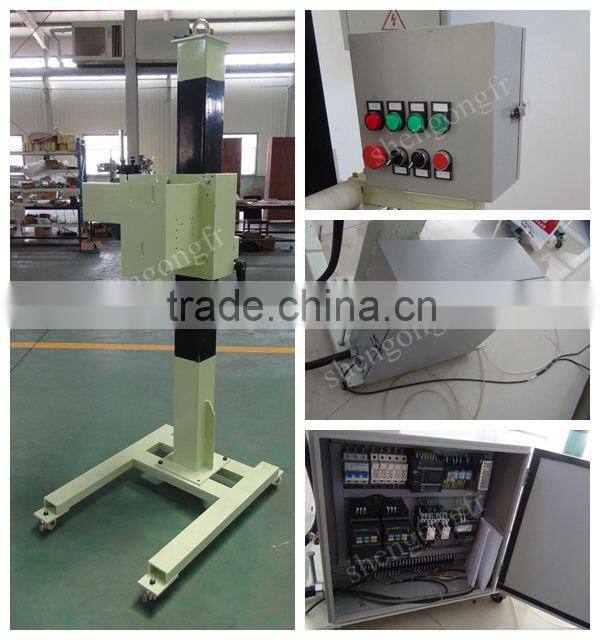

A1-PB Pedestal

(contain motor columns, frequency conversion control cabinet, electric cabinet)

The service we can provide:

1.Professional technical consulting;

2.Machine operating analysis;

3.Stitch sample making;

4. Provide sewing machine working video ;

5.Maintenance and spare parts services.

FAQ:

1. Q: Do you have your own export right ?

    A: Yes, we are able to export the sewing machine to any country or region

2. Q: What service you can supply?

    A: Model recommendation, sample making, technical consulting, after-service support

3. Q: Could i visit your factory ?

A: Yes, at the same time you can enjoy more favorable price if buy sewing machine

4. Q: Is your machine could replace Union Special or Newlong sewing machine function?

    A: Yes. Our machine could 100% replace Union Special or Newlong sewing machine function.

5. Q: Do you supply spare parts?

    A: Yes, Our company produce sewing machine and spare parts by our selves and with fast lead time,best price.

6. Q: What gurantee you supply?

    A: Limited spare parts one-year guarantee, not including quick-wear parts like needle, looper, throat plate, feed dog, etc.
