Applying to 13 Seats Van Rooftop Van Air Conditioner
Product Features:
- High efficient internal thread copper pipe evaporator,energy-efficient
- The shell material is fiber glass structure,uviofast and firm.
- With high eddicient internal thread copper pipe evaporator.
- Automatic protection functions to make the whole system stable and reliable.
- Unibody design,compact structure.
- Environmentally friendly.
(a) Designed following building block principle, achieving the most generalization and standardization.
(b) Abundant and substantial cooling capacity.
(c) Good servicing inerchangeablity and accessibility.
(d) 36 Months Warranty Time after delivery
| Model | KT-12 |
| Cooling Capacity | 12Kw/40947Btu |
| Apply for bus(m) | 5.5-6.5 |
| Voltage | DC12V or 24V |
| Working Power | Engine driven |
| Installation place | Rooftop mounted or built in |

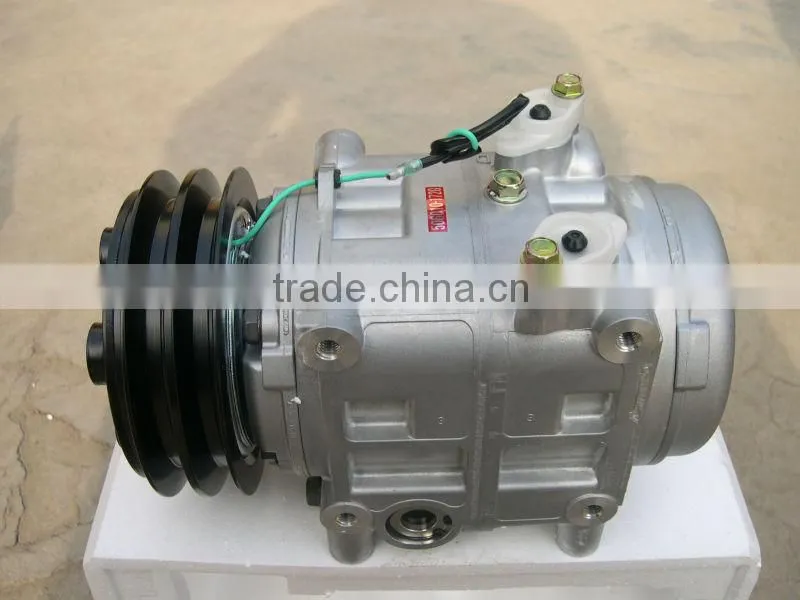

| Compressor | PLM-32/DKS-32 |
| No. of Condenser fan | 2 Pieces |
| Fan Air Flow( m³ /h) | 3800 |
| Coil type | Copper tube and Aluminum Fins |
| No. of Evaporator fan | 2 Pieces |
| Blower Air Flow( m³ /h) | 1800 |
| Coil type | Copper tube and Aluminum Fins |
| Refrigerant | R134a |

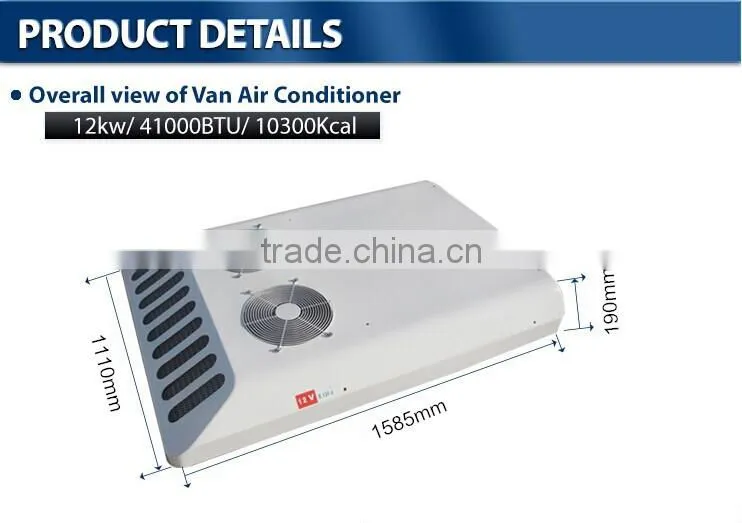

| Dimension(mm) | 1585*1110*190mm |
Spare Parts
Plastic film against scratch
Strong wooden carton
Iron rack for safe shipping
Zhengzhou Hangyuan Refrigeration Equipment Co.,Ltd with Brand Yuxin is affiliated with China Aviation Industry.
Our company has established a national advaced air conditioner test center. This center was qualified with "Commissioned Test Laboratory" by Chinese Certification Center for Automotive Products. The test reports issued by this center can be internationally recognized by 46 countries.
At present, our company has 90 testing equipments, meeting requirements of various automotive air conditioners development, production and test. And also has environmental simulation laboratory, HVAC performance laboratory.
With good quality products we got the ISO9001 and ISO/TS 16949 Certificates. And also got the ISO 14001 environment management system certificate.
+ Quality first,users first,continuous improvement
+ Creating brand products,pursuing brand service
+ More than 50 years experience for Bus Air Conditioner System
1.With an environmental simulation laboratory, a HVAC performance laboratory, a core test rig.
2.More than 10 advanced production lines of heat exchanger core.
3.The annual production of 60,000 bus air conditioners and 250,000 evaporators and condenser cores.
Why choose us as your supplier
♣ OE Supplier with More than 50 years
♣ 100% warranty and quality gurantee,36 Months Warranty Time
♣ Supply you the right model which could suit your Buses better.
♣ Also supply you the best material of air conditioner at competitive price
♣ Welcome to join us
