Specifications
1)Cantilevered storage rack2)L2000-3200 W500-800 H2000-3000-- Adjustable
3)good quality
4)Powder coating
5)ISO9001

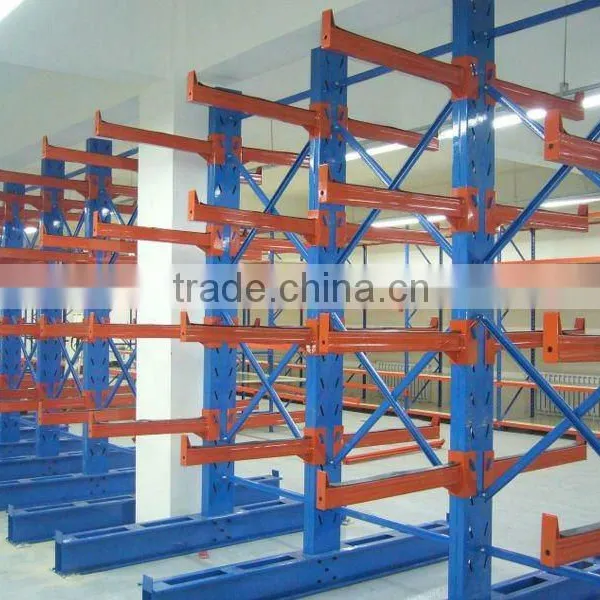

Warehouse cantilevered storage rack
Beam
Beams can be adjusted by every 2". Different dimension and capacity to meet different storage requirements. safety bolts and clips to connect beams and pillars
Uprights
In clined beam has two type longer one is used loosely for the upper of the rack, the shorter densely for the lower to improve the bearance and solidity. Pitch is 50 mm, beam is adjustable. Triangle hole easily tightens to hitch steel and strengthens the load capacity of posts.
Supporter
With stacking feet, safe and reliable.
Protector
Protect the sides or corners from impact.
Packing: standard export carton box,or according to customer' request, such as using bubble film, euro pallet
Surface treatment: epoxy powder coating
Item |
light duty rack ( mm) |
middle duty rack |
heavy duty rack |
Overal dimension |
1500*500*2000 |
2000*600*2000-3000 |
2000*800*3000 |
Upright |
30*50*1.0mm |
30*80*1.2mm |
60*80*2.0mm |
Bunton |
30*50*1.0mm |
40*80*1.2mm |
50*80*2.0mm |
capacity( per layer) |
150KG |
300KG |
1000-2000KG |
layer |
3-4 |
3-4 |
3 |
