Specifications
Lowest price iq board interactive whiteboard XC-FP31:Minimum Active Size:40 inch
2:touch
Lowest price iq board interactive whiteboard XC-FP3
Features:
1:Minimum Active Size:40 inch
2:Multi-touch
Description | |
|

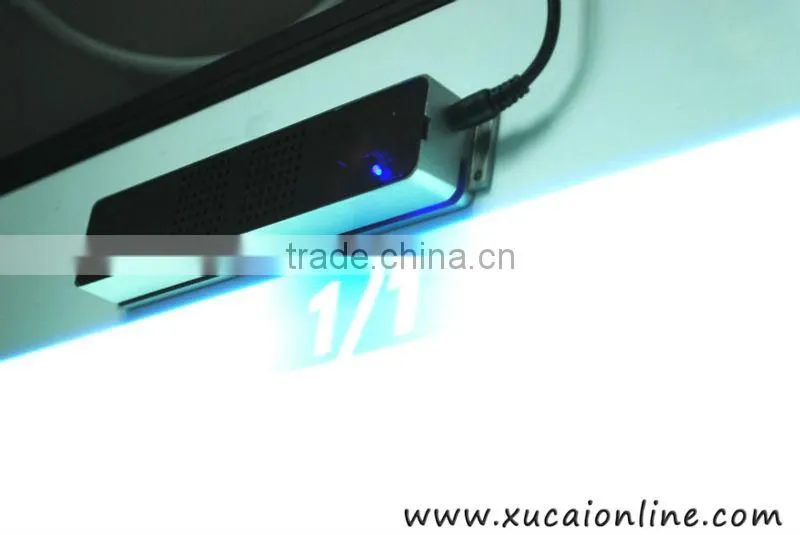

XC-FP3 Board with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface. When the fingers or any non-transparent objects touch this virtual surface, the light will be reflected and detected by the sensor. Computer will figure out the position of the mouse by accurate calculating the reflected light position.
| |
Specification | |
Calibration |
Automatic(5s) / Manual (25/36 points)/Semi Automatic (4 points) |
Gesture Recognition |
Single finger is for "Write", Two fingers for "move","zoom in or out" and "scroll bar", Palm for "Erase",Palm stay 2s for Spot, Palm two clicks for back to desktop. |
Multi-touch |
Ten points touch, write and eraser can do together. |
Latency |
<30ms |
Filter |
Software auto-control, enhance stability. |
Minimum Active Size |
40 inch |
Technology |
Laser Image Calibration Technology |
Positional Accuracy |
±1 Pixel (Resolution: 4096*4096) |
Aspect Ratio |
4:3;16:9;16:10 |
Projector ratio |
Ultra short throw : 0.19, XC-FP3ENGLD4, installation distance:0.30~0.40M; Short throw:0.34, XC-FP3ENGLA4, installation distance:0.54~1.1M; Long throw:3.0 , XC-FP3ENGLE4, installation distance:2.15~3.2M. |
Laser Beam |
Short throw/ Long throw: 3units; Ultra short throw: 4units. |
Laser safety |
CLASS I (safety laser) |
Wave of the laser |
808nm |
Power |
5w |
Power of Laser Beam |
150mW/unit *3 |
Power requirements |
5V/1.5A |
Signal refresh rate |
120fps. |
Connect |
The sensor and computer are connected by USB Cable; Emitter and Sensor are wireless; Emitter just need power. |
Weight |
2kg |
OS Requirement |
Windows XP, Vista, Windows 7, Windows 8 |
Software |
Calibration software(driver) and GLboard(education software) |
Certification |
CE, FCC |
Warranty |
2-year |
Package |
1. Sensor 2.Emitter 3.Mounts 4.USB cable (12m) 5.Pionter 6.Power Adaptor 7. Manual |
