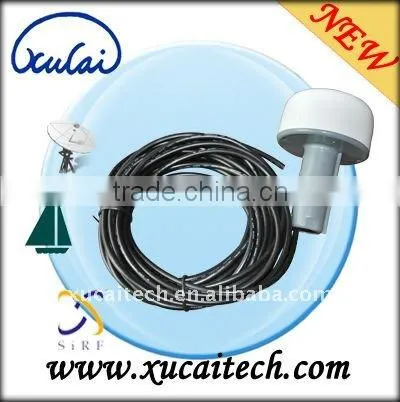

Hot!! Newest GPS Marine antenna Support NMEA 0183 XUCAI MA97

Specification

Physical:

Housing

100%waterproof

Dimension(D×H)

92×139mm

Weight

155.50g without cable

Cable

10m(22AWG)

Color

White and Gray

Environmental:

Operating temperature

-30°C to +85°C

Storage temperature

-40°C to +125°C

Operating humidity

5% to 95% No condensing.

Power consumption

Acquisition: 42mA

Specification:

Receiver

Tracking up to 20 satellites L1, 1575.42MHz C/A code

Chipset

SiRF III

Antenna Type

Built in Patch Antenna

Output protocol

NMEA0183.V.3.0

DGPS

WAAS, EGNOS, MSAS

Datum

WGS-84

Voltage Range

5V~32V

Backup Voltage

2.0~3.6Vdc ±10%

Max update rate

1 HZ

Accuracy:

Position: 10meters, 2D RMS

5meters, 2D RMS, WAAS enabled

Velocity: 0.1m/s

Time: 1 us synchronized to GPS time

Available baud rate

Default: GGA, GSA, GSV, RMC, VTG, GLL, ZDA

SiRF binary and NMEA Command

4,800 to 57,600 bps adjustable

Acquisition Tiem

Hot Start: 1 sec (average)

Cold Start: 42 sec (average)

Warm Start: 38 sec (average)

Reacquisition

0.1 second, average

Dynamics

Altitude: 18,000m (max)

Velocity: 515m/sec (max)

Acceleration: 4G (max)

What’s in box

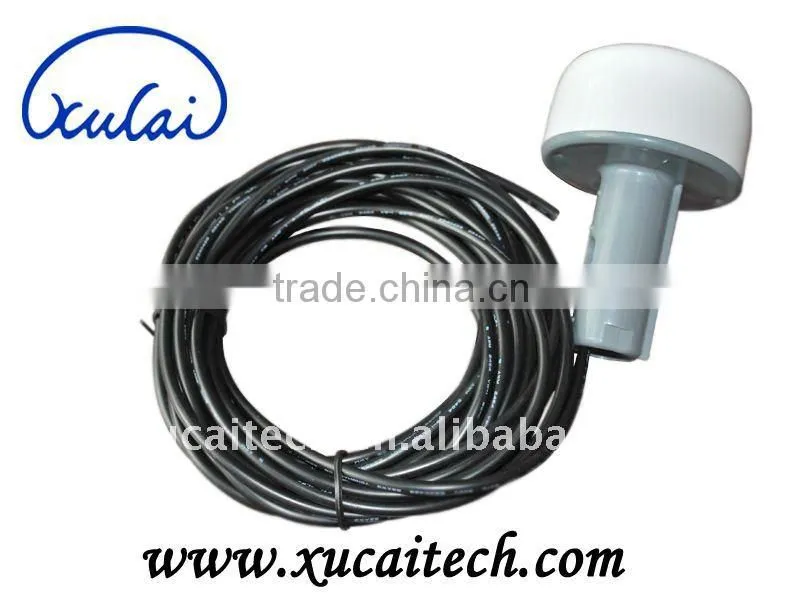

Marine GPS 1 unit and 10 m cable
