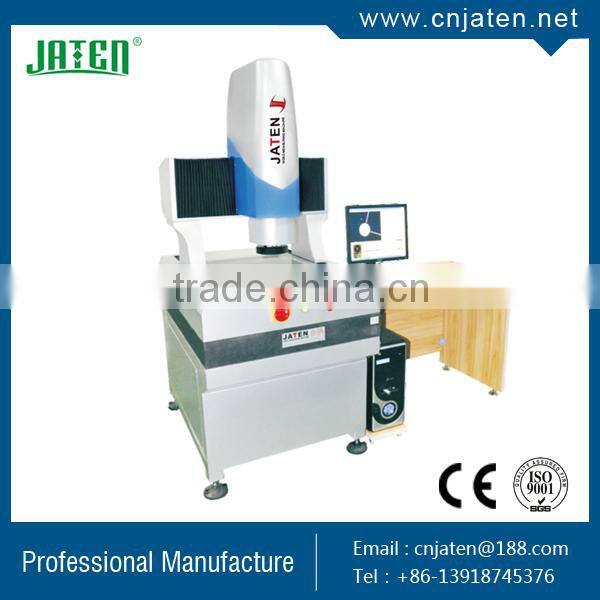

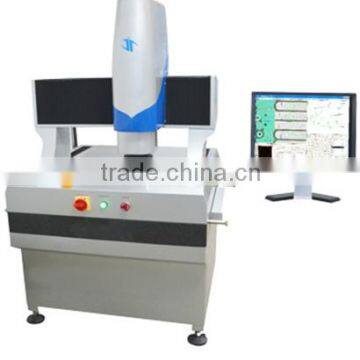

QVS-3020CNC Fully Auto Image Measuring Instrument
Description:
- Stable marble base and pillar, working stage don’t move, Japan THK precision guide and screw, double close-loop servo motor to ensure the high measure speed, accuracy and stability;
- Adjustable 48-division Ring LED illuminator controlled by software and with memory function;
- Advanced 6.5X motorized coaxial zoom lens and SONY 1 /2” color high resolution CCD camera;
- 3-axis high-accuracy USA GSI or UK Renishaw 0.5um linear scale;
- CCD navigation system, for quickly locate the measurement position of sample and improve the measurement speed;
- Powerful fully-auto QM4.1 measuring software, make, save and inport, edit the program and then auto-run it.
Specification:
Product Name |
Fully Auto Video Measuring System |
|||
2.5D Model |
QVS-3020CNC |
QVS-4030CNC |
QS-5040CNC |
|
3D Model |
QVS-3020CNC-T |
QVS-4030CNC-T |
QVS-5040CNC-T |
|
X,Y-axis Travel |
300x200mm |
400x300mm |
500x400mm |
|
Z-axis Travel |
200mm |
|||
X/Y/Z 3-axis Linear Scale(2.5D) |
USA GSI linear scale,Resolution:0.0005mm |
|||
Accuracy |
X/Y-axis:≤3+L/200(um) |
|||
Z-axis:≤4+L/200(um) | ||||
Repeatability |
±2um |
|||
Video System |
SONY 1/2“ color CCD camera |
|||
6.5X Motorized coaxisl zoom lens | ||||
Illumination |
Contour |
Adjustable 256-grade LED Cold illumination |
||
Surface |
Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination |
|||
3D Measuerment |
3D Module and UK Renishaw MCP-K2 Touch Probe |
|||
Measuring Software |
Quick Measuring 4.1/4.2 |
|||
Max.load Capacity |
35Kg |
30Kg |
25Kg |
|
Dimension |
860x740x1760mm |
1060x740x1760mm |
1160x940x1760mm |
|
Net Weight |
250Kg |
300Kg |
360Kg |
|
Standard Delivery:
Product Name |
Product Name |
Product Name |
Measuring Software |
SONY CCD Camera |
Motorized Coaxial Zoom Lens |
Calibration Block |
DH Capture Card |
48 –Division LED Illumination |
Movement Control Card |
Scale Transfer U3 |
CCD Navigation |
GSI Linear Scale |
Operation Joystick |
PC System |
100mm Length Block |
Renishaw Probe MCP-K2(3D) |
Working Cupboard |
Optional Accessories:
Product Name |
Product Name |
Product Name |
Renishaw MCP-K1 Probe(3D) |
0.5X Auxiliary Objective |
2X Auxiliary Objective |
Renishaw MCP-K1 Probe(3D) |
12.5X Motorized Zoom Lens |
Laser Measuring System |
