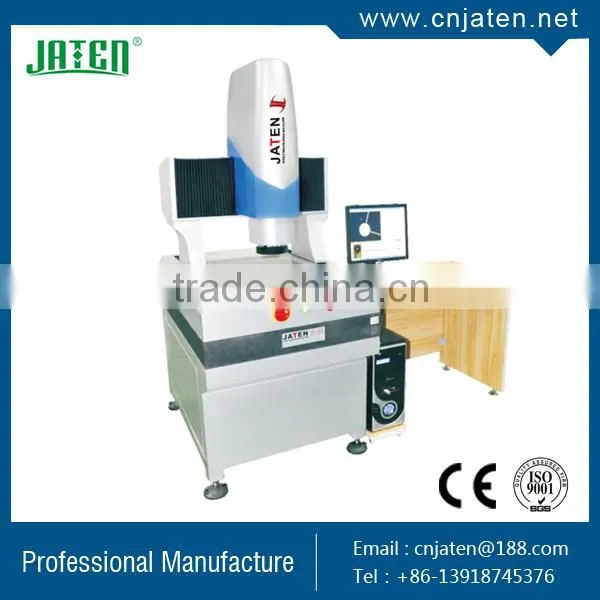

QVS-4030CNC-T Fully Auto Video Measuring System

Name: QVS-4030CNC-T Fully Auto Video Measuring System
Brand: Jaten
SKU: 106649593
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Jaten

Model Number:

QVS-4030CNC-T

Shanghai Houstec Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Jaten

Model Number QVS-4030CNC-T

Description:

Stable marble base and pillar, working stage don’t move, Japan THK precision guide and screw, double close-loop servo motor to ensure the high measure speed, accuracy and stability;
Adjustable 48-division Ring LED illuminator controlled by software and with memory function;
Advanced 6.5X motorized coaxial zoom lens and SONY 1 /2” color high resolution CCD camera;
3-axis high-accuracy USA GSI or UK Renishaw 0.5um linear scale;
CCD navigation system, for quickly locate the measurement position of sample and improve the measurement speed;
Powerful fully-auto QM4.1 measuring software, make, save and inport, edit the program and then auto-run it.

Specification:

Product Name		Fully Auto Video Measuring System
2.5D Model		QVS-3020CNC	QVS-4030CNC	QS-5040CNC
3D Model		QVS-3020CNC-T	QVS-4030CNC-T	QVS-5040CNC-T
X,Y-axis Travel		300x200mm	400x300mm	500x400mm
Z-axis Travel		200mm
X/Y/Z 3-axis Linear Scale(2.5D)		USA GSI linear scale,Resolution:0.0005mm
Accuracy		X/Y-axis:≤3+L/200(um)
		Z-axis:≤4+L/200(um)
Repeatability		±2um
Video System		SONY 1/2“ color CCD camera
		6.5X Motorized coaxisl zoom lens
Illumination	Contour	Adjustable 256-grade LED Cold illumination
	Surface	Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination
3D Measuerment		3D Module and UK Renishaw MCP-K2 Touch Probe
Measuring Software		Quick Measuring 4.1/4.2
Max.load Capacity		35Kg	30Kg	25Kg
Dimension		860x740x1760mm	1060x740x1760mm	1160x940x1760mm
Net Weight		250Kg	300Kg	360Kg

Standard Delivery:

Optional Accessories:
